• Air Operated Grease Filler

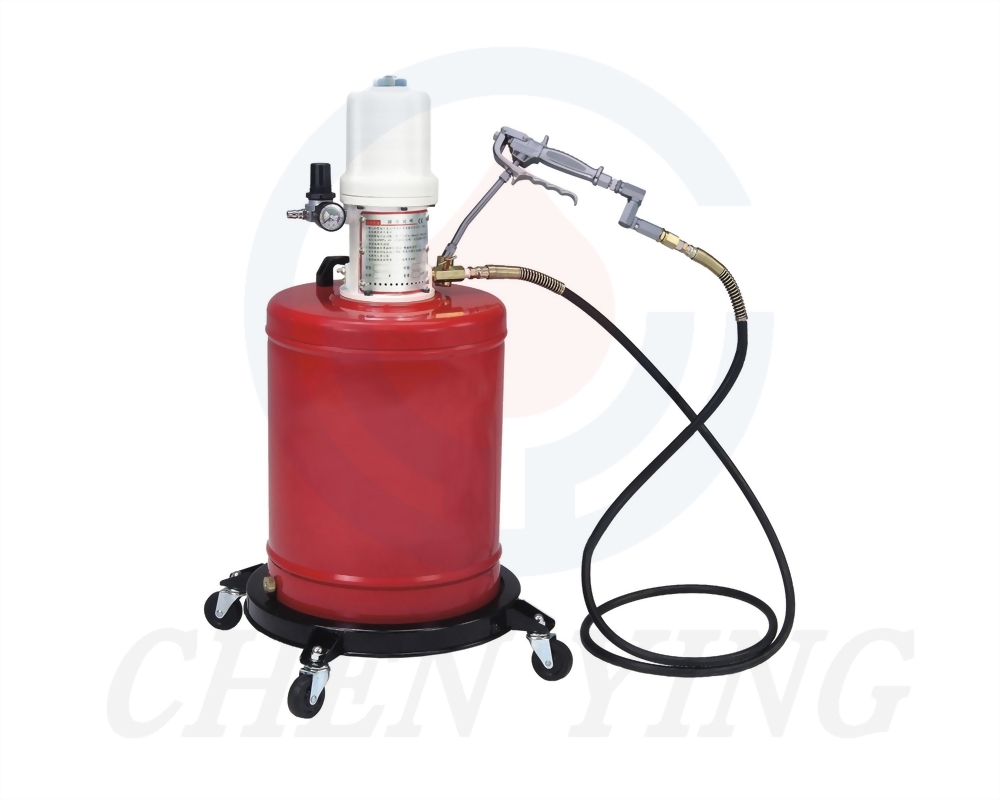

Air Operated Grease Filler

※ Please select the specifications you need.：

*Model
Remarks
  1. High-Grade Steel Construction: Rugged, durable build for long service life.
  2. 5-Gallon Capacity: Inner diameter 322mm, depth 440mm; fits standard 5-gallon grease buckets directly.
  3. Dual-Circulation Pump: Separates compressed air from grease to reduce contamination and maintain grease quality.
  4. Easy Mobility: Four-wheel ring base plus ergonomic handle for smooth transport.
  5. Follower Plate Included: Improves priming efficiency and ensures reliable flow in freezing conditions.
  6. Versatile compatibility with NLGI 000 to No. 2 grease, suitable for a wide range of industrial lubrication applications.

◆ Specification


Model Capacity Air Input Pressure Pressure Ratio Grease Output pressure Discharge Volume Hose Length Viscosity N.W. G.W.
CKMG-55 20L 4~9 kgf/cm² 45:1 180~405 kgf/cm² 23.3 g/sec 10 meters NLGI 000~2 15.75 kg 18.15 kg
