• BS-6

BS Type Transparent Adjustable Distributor

  • Work with Resistance Lubricators
  • Suitable for Oil and Grease

※ Please select the specifications you need.：

*Model
Remarks

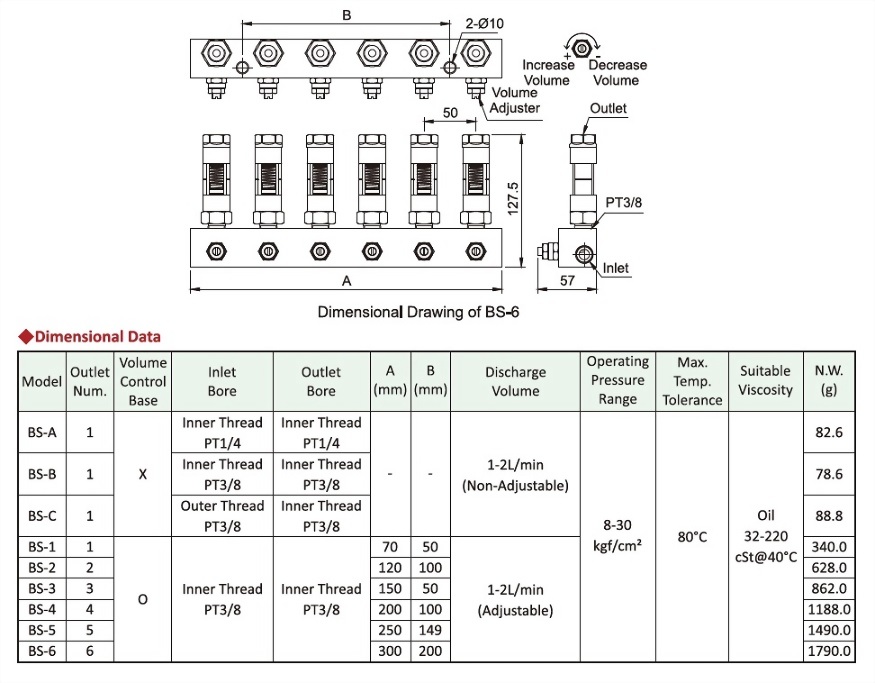

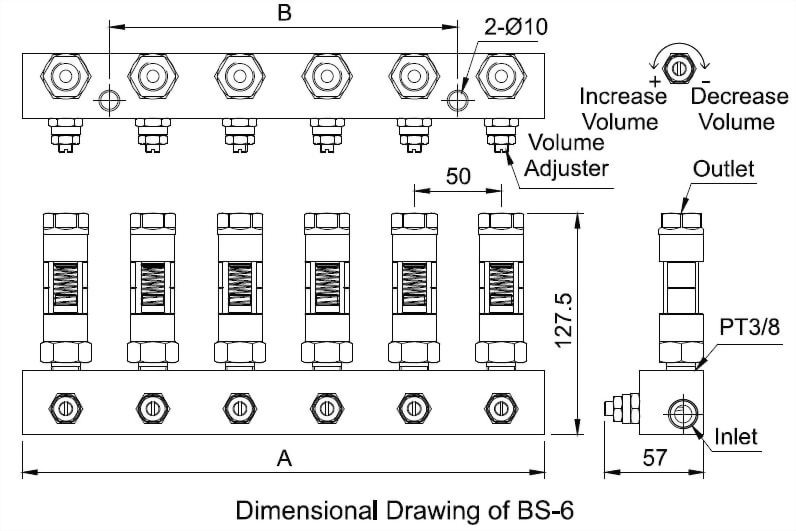

bs-type-transparent-adjustable-distributor Dimensional Drawing


◆ Dimensional Data

Model Outlet Num. Volume Control Base Inlet Bore Outlet Bore A(mm) B(mm) Discharge Volume Operating Pressure Range Max. Temp. Tolerance Suitable Viscosity N.W.(g)
BS-A 1 X Inner Thread PT1/4 Inner Thread PT1/4 - - 1-2L/min
(Non-Adjustable) 		8-30 kgf/㎠ 80℃ Oil 32-220cst@40℃ 82.6
BS-B 1 Inner Thread PT3/8 Inner Thread PT3/8 78.6
BS-C 1 Outer Thread PT3/8 Inner Thread PT3/8 88.8
BS-1 1 O Inner Thread PT3/8 Inner Thread PT3/8 70 50 1-2L/min (Adjustable) 340.0
BS-2 2 120 100 628.0
BS-3 3 150 50 862.0
BS-4 4 200 100 1188.0
BS-5 5 250 149 1490.0
BS-6 6 300 200 1790.0
