CBB Type Volumetric Distributor
- Work with Pressure-Relief Lubricators
-
Suitable for Oil
- CBB type volumetric distributor can deliver a precisely metered quantity of oil to each lubrication point.
- CBB needs to work with a pressure-relief type oil lubricator and discharges oil during the operation time of the lubricator.

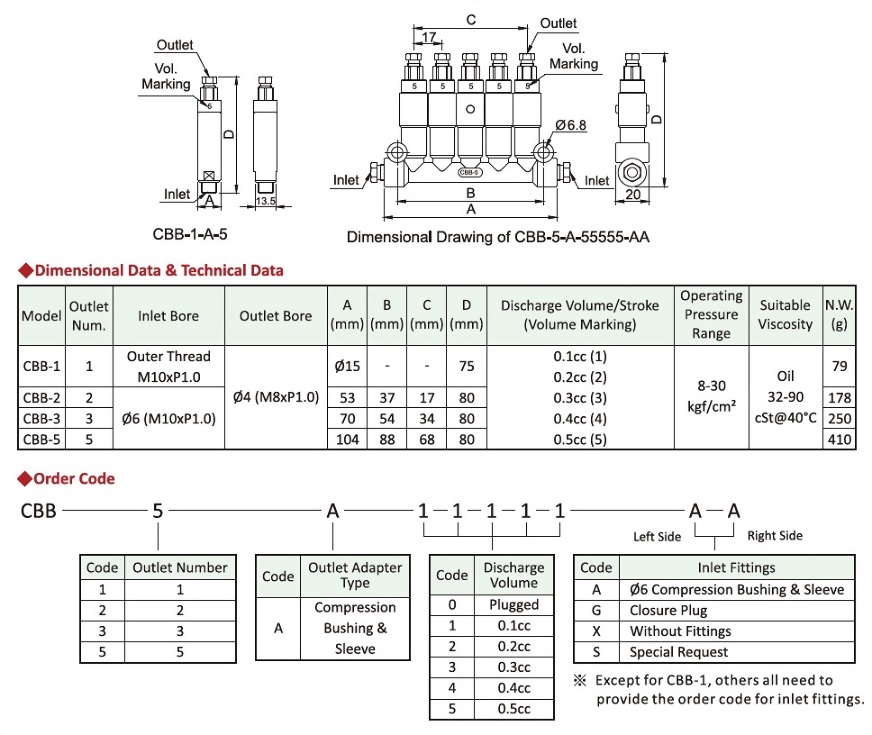

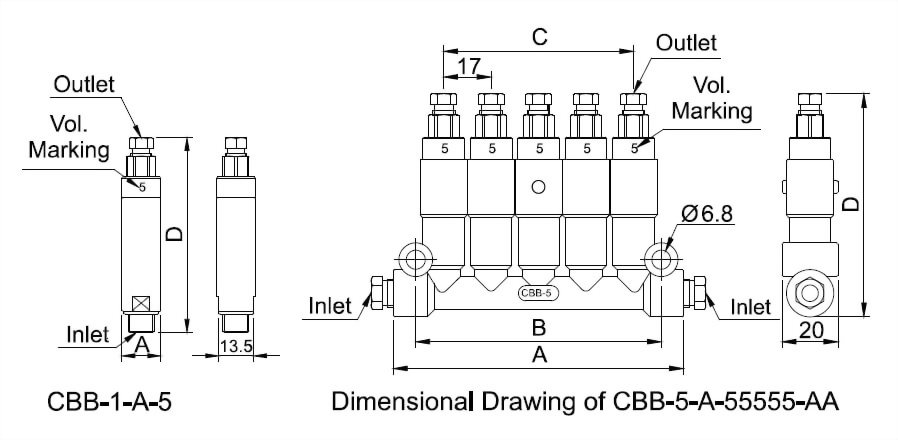

◆ Dimensional Data & Technical Data
Model
Outlet Num.
Inlet Bore
Outlet Bore
A(mm)
B(mm)
C(mm)
D(mm)
Discharge
Volume/Stroke
(Volume Marking)
Operating
Pressure Range
Suitable
Viscosity
N.W.(g)
CBB-1
1
Outer Thread M10xP1.0
Ø4
(M8xP1.0)
Ø15
-
-
75
0.1cc(1)
0.2cc(2)
0.3cc(3)
0.4cc(4)
0.5cc(5)
8~30kgf/cm²
Oil 32~90cSt@40℃
79
CBB-2
2
Ø6(M10xP1.0)
53
37
17
80
178
CBB-3
3
70
54
34
80
250
CBB-5
5
104
88
68
80
410
◆ Order Code
Model
Outlet Number
Outlet Adapter Type
Discharge Volume
Left Side Inlet Fitting
Right Side Inlet
Fitting
CBB
5
A
1
A
A
1
1
A
Compression Bushing
& Sleeve
0
Plugged
A
Ø6 Compression
Bushing & Sleeve
A
Ø6 Compression
Bushing & Sleeve
2
2
1
0.1cc
G
Closure Plug
G
Closure Plug
3
3
2
0.2cc
X
Without Fittings
X
Without Fittings
5
5
3
0.3cc
S
Special Request
S
Special Request
4
0.4cc
5
0.5cc
※Except for CBB-1, others all need to provide the order code for inlet fittings.
