CDB Type Volumetric Distributor
- Work with Pressure-Relief Lubricators
-
Suitable for Oil
- CDB type large volumetric distributor can deliver a precisely metered quantity of oil to each lubrication point.
- CDB needs to work with a pressure-relief type oil lubricator and discharges oil during the interval time of the lubricator.
- Each outlet of CDB has an indicator pin that enables the user to monitor the oil discharging visually. It can optionally add a sensor switch to the indicator pin for an electronic signal.
- CDB with an outlet of discharging volume 0.5cc can add a sensor switch. The user can either set up NO contact, NC contact, or both upon need. When it is set as NO contact, it sends a signal during the operation time of the lubricator. When it is set as NC contact, it sends a signal during the interval time of the lubricator.

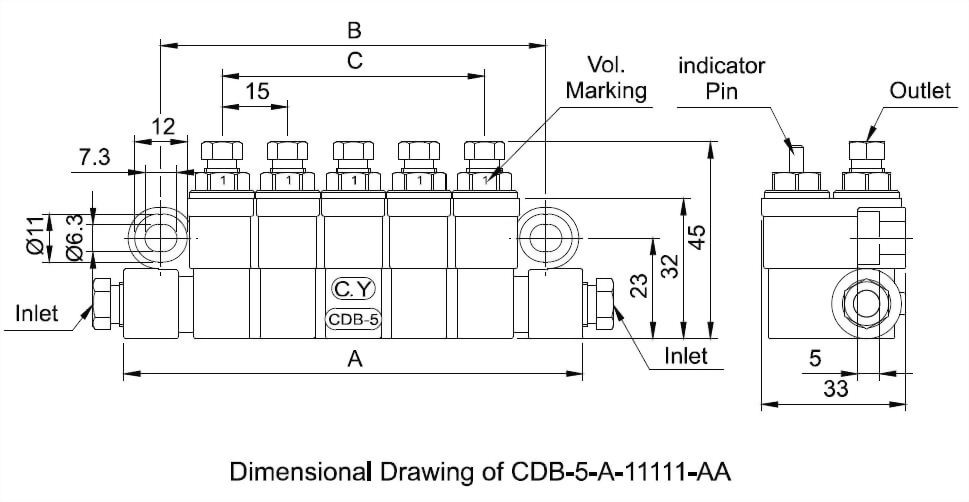

◆ Dimensional Data & Technical Data
Model
Outlet Num.
Inlet Bore
Outlet Bore
A(mm)
B(mm)
C(mm)
Discharge
Volume/Stroke
(Volume Marking)
Operating
Pressure Range
Suitable
Viscosity
N.W.(g)
CDB-1
1
Ø6(M10xP1.0)
Ø4
(M8xP1.0)
45
28
-
0.1cc
(1)
0.2cc (2)
0.3cc (3)
0.4cc (4)
0.5cc (5)
8~30kgf/cm²
Oil 32~90cSt@40℃
133
CDB-2
2
60
43
15
213
CDB-3
3
75
58
30
288
CDB-5
5
105
88
60
445
◆ Order Code
| Model | Outlet Number | Outlet Adapter Type | Discharge Volume | Left Side Inlet Fittings | Right Side Inlet Fittings | |||||
| CDB | 5 | A | 1-1-1-1-1 | A | A | |||||
| 1 | 1 | A | Compression Bushing & Sleeve | 0 | Plugged | A | Ø6 Compression Bushing & Sleeve | A | Ø6 Compression Bushing & Sleeve | |
| 2 | 2 | 1 | 0.1cc | G | Closure Plug | G | Closure Plug | |||
| 3 | 3 | 2 | 0.2cc | X | Without Fittings | X | Without Fittings | |||
| 5 | 5 | 3 | 0.3cc | S | Special Request | S | Special Request | |||
| 4 | 0.4cc | |||||||||
| 5 | 0.5cc | |||||||||
| 5A | 0.5cc+Sensor Switch | |||||||||
