Steel Plate Frame Horizontal Shaft Coupling Motor

※ Please select the specifications you need.：
*Model
*HP
*Voltage
*Horizontal
*Frame
Special Request(Add Rotary Oil Pump)
Optional
Remarks

Q'ty :

Features
Specifications

This design holds Taiwan's new patent number M596818.

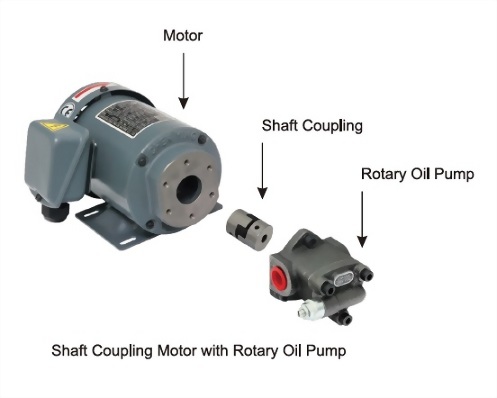

The shaft coupling motor uses a jaw coupling to connect to the pump, which significantly reduces the wear rate of the motor shaft and pump shaft.
The coupling eliminates the shaft deviation between the motor and the pump and reduces the amplitude of the coupling motor during operation.
The shaft coupling motor's composition is simple and can easily replace a motor, a coupling, or a pump individually as needed.
It can work with a rotary oil pump, such as CYP-10A, CYP-11A, CYP-12A, and CYP-13A, according to the flow rate requirement. Recommend adding an adjustable pressure valve to a rotary oil pump. The range of pressure adjustment is 0~5kgf/cm².
It is suitable for lubrication or cooling purposes, such as cooling machines, refrigeration machines, various special purpose machines, machine tools, textile machines, etc.

◆Strengths

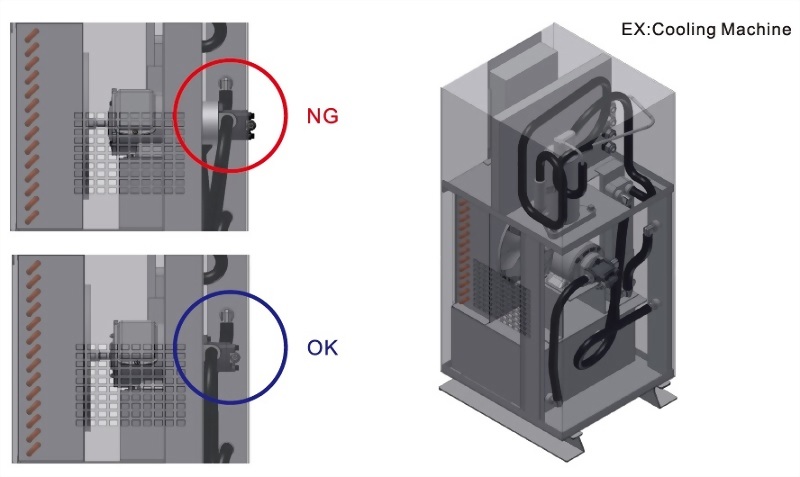

The length of the shaft coupling motor is about 10% shorter than the traditional coupled motor while retaining the function of the coupled motor to meet the installation requirements with limited space.

The traditional coupled motor has a longer shaft and requires larger installation space.

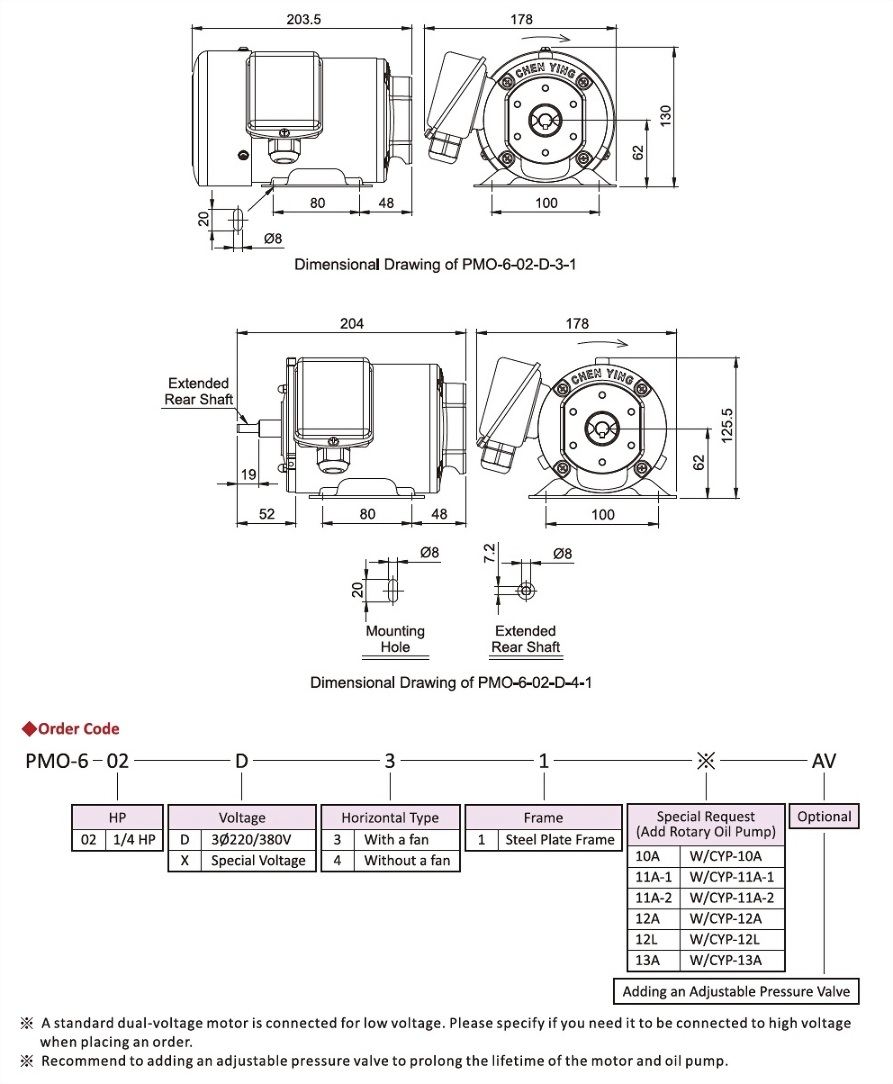

◆Order Code

Model	HP		Voltage		Horizontal Type		Frame		Special Request (Add Rotary Oil Pump)		Optional
PMO-6	02		D		3		1		※		AV
	02	1/4HP	D	3Ø220/380V	3	With a fan	1	Steel Plate Frame	10A	W/CYP-10A	Adding an Adjustable Pressure Valve
			X	Special Voltage	4	Without a fan			11A-1	W/CYP-11A-1
									11A-2	W/CYP-11A-2
									12A	W/CYP-12A
									12L	W/CYP-12L
									13A	W/CYP-13A

※A standard dual-voltage motor is connected for low voltage. Please specify if you need it to be connected to high voltage when placing an order.

※Recommend adding an adjustable pressure valve to prolong the lifetime of the motor and oil pump.

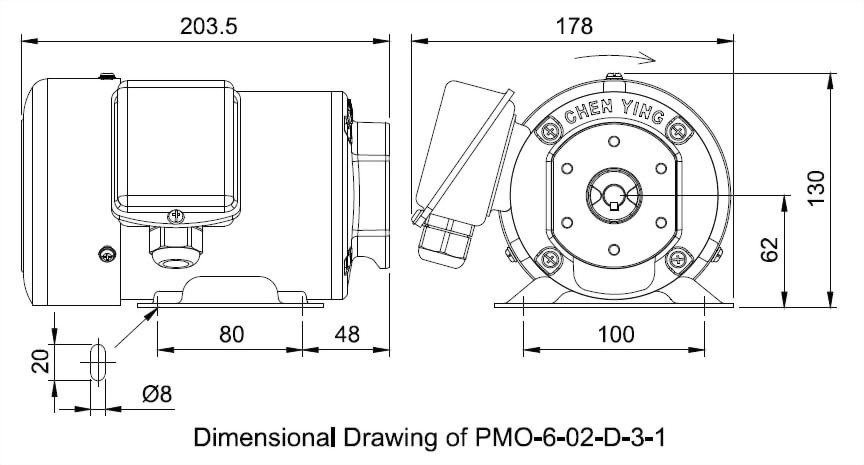

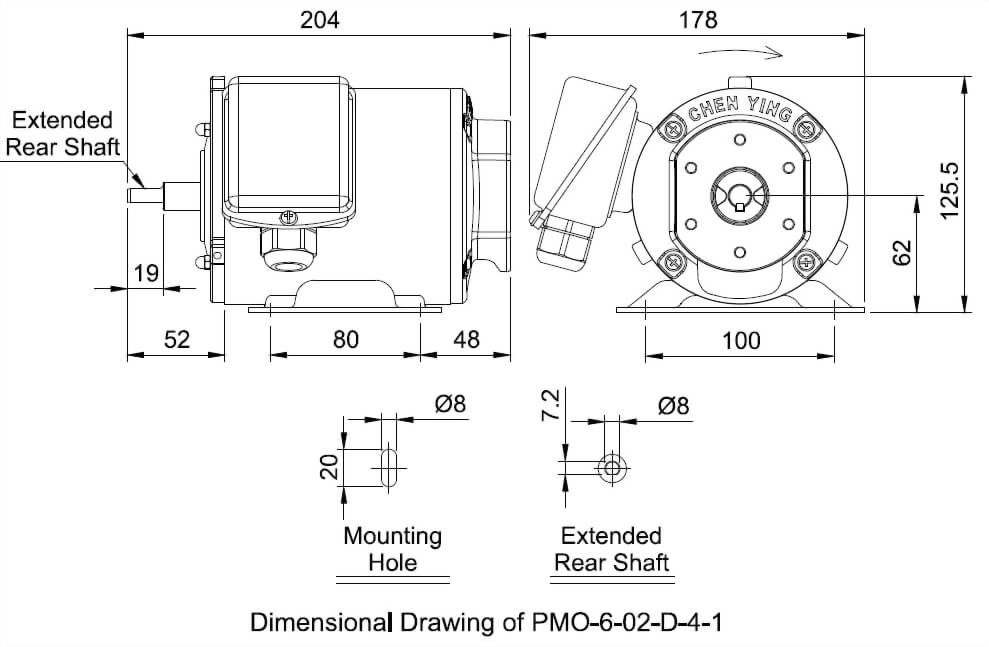

◆Dimensional Data & Technical Date

Model	Applicable Rotational Speed(min^-1)	Discharge Voluma(L/min)	A(mm)	B(mm)	C(mm)	D Bore	Max. Pressure	Suitable Viscosity	Suitable Temp. Range	N.W.(g)
CYP-10A	1420-1720	1.1-1.4	60.5	41	12	PT1/8	5 kgf/cm²	32-68 cSt@40℃	0-90℃	616
CYP-11A-1	1420-1720	2.2-2.7	64.5	45	12	PT1/8				665
CYP-11A-2	1420-1720	2.2-2.7	64.5	45	12	PT1/4				664
CYP-12A	1420-1720	3.7-4.5	70.5	51	12	PT1/4				751
CYP-12L	450-1200	1.1-3.0	62.5	43	11	PT1/4				650
CYP-13A	1420-1720	6.5-7.9	82.5	63	15	PT3/8				924

※ IF you need to add an adjustable pressure valve to the rotary oil pump,please add AV after the model number when you place an order. For example,CYP-11A-1-AV stands for one set of CYP-11A-1 assembled with CYP-AV.

※After adding the adjustable pressure valve,the net weight increases by 110g.
