AB Type Adjustable Distributor

Work with Resistance Lubricators
Suitable for Oil and Grease

※ Please select the specifications you need.：
*Model
*Inlet Bore
*Outlet Bore
Remarks

Q'ty :

Specifications

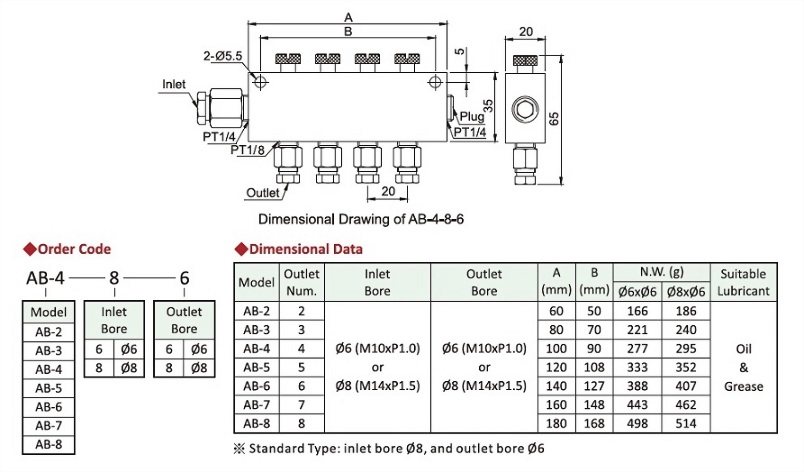

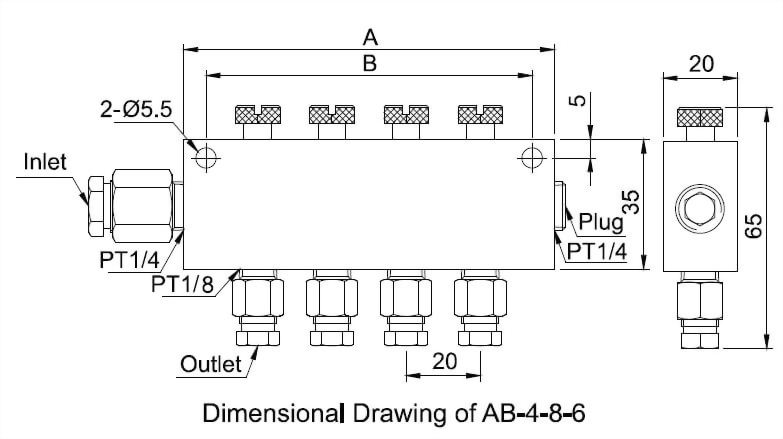

◆ Dimensional Data

Model	Outlet Num.	Inlet Bore	Outlet Bore	A(mm)	B(mm)	N.W.(g)		Suitable Lubricant
Model	Outlet Num.	Inlet Bore	Outlet Bore	A(mm)	B(mm)	Ø6xØ6	Ø8xØ6	Suitable Lubricant
AB-2	2	Ø6(M10xP1.0) or Ø8(M14xP1.5)	Ø6(M10xP1.0) or Ø8(M14xP1.5)	60	50	166	186	Oil or Grease
AB-3	3			80	70	221	240
AB-4	4			100	90	277	295
AB-5	5			120	108	333	352
AB-6	6			140	127	388	407
AB-7	7			160	148	443	462
AB-8	8			180	168	498	514

※Standard Type：inlet bore Ø8, and outlet bore Ø6

◆ Order Code

Model	Inlet Bore		Outlet Bore
AB-2	8		6
AB-3	6	Ø6	6	Ø6
AB-4	8	Ø8	8	Ø8
AB-5
AB-6
AB-7
AB-8
