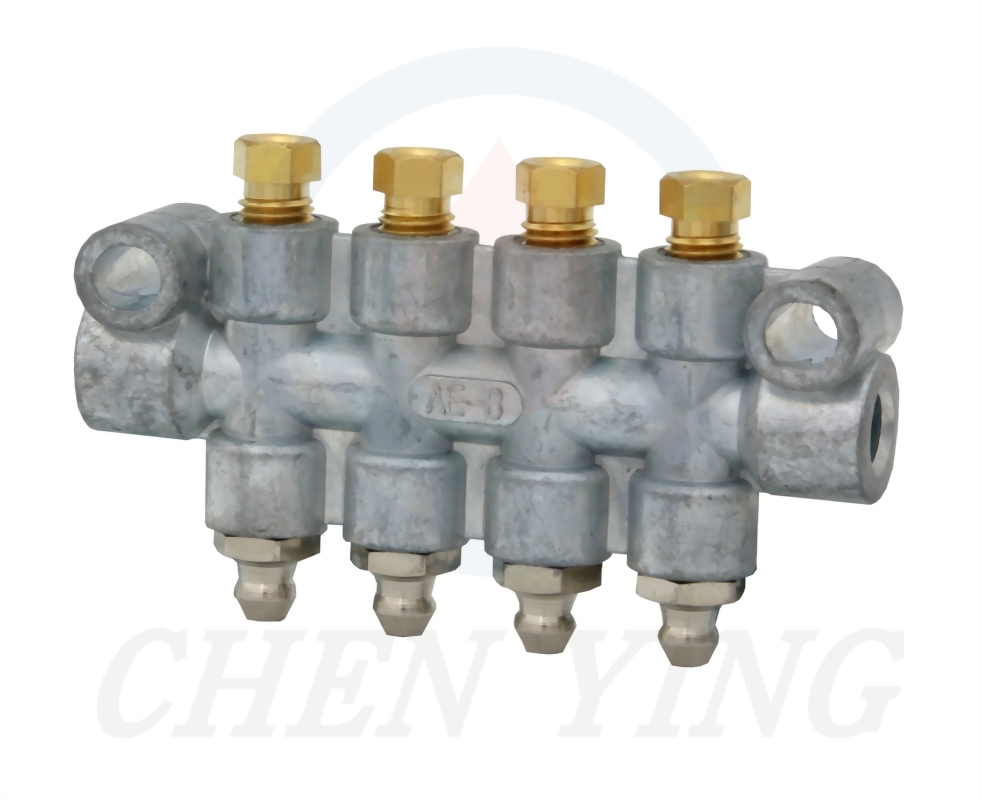

AE Type Grease Nipple Distributor with Parallel Outlets

AE Type Grease Nipple Distributor with Parallel Outlets

Work with Resistance Lubricators
Suitable for Grease

※ Please select the specifications you need.：
*Model
Remarks

Q'ty :

Specifications

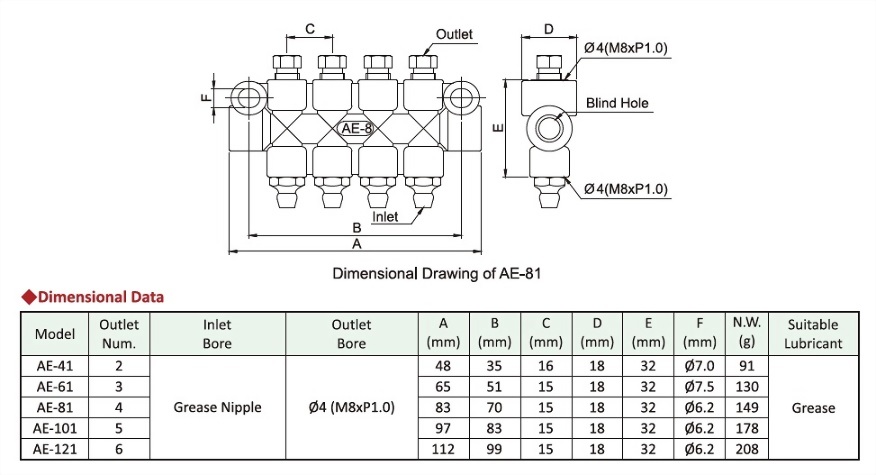

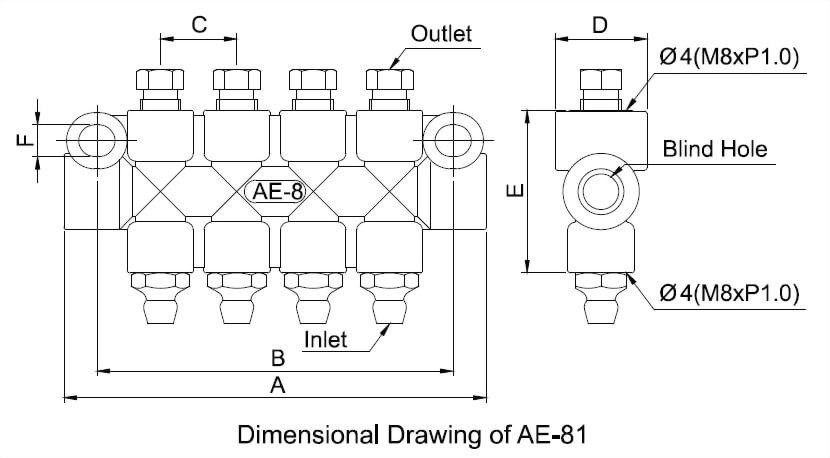

◆ Dimensional Data

Model	Outlet Num.	Inlet Bore	Outlet Bore	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	N.W. (g)	Suitable Lubricant
Model	Outlet Num.	Inlet Bore	Outlet Bore	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	N.W. (g)	Suitable Lubricant
AE-41	2	Grease Nipple	Ø4(M8xP1.0)	48	35	16	18	32	Ø7.0	91	Grease
AE-61	3			65	51	15	18	32	Ø6.2	130
AE-81	4			83	70	15	18	32	Ø6.2	149
AE-101	5			97	83	15	18	32	Ø6.2	178
AE-121	6			112	99	15	18	32	Ø6.2	208
