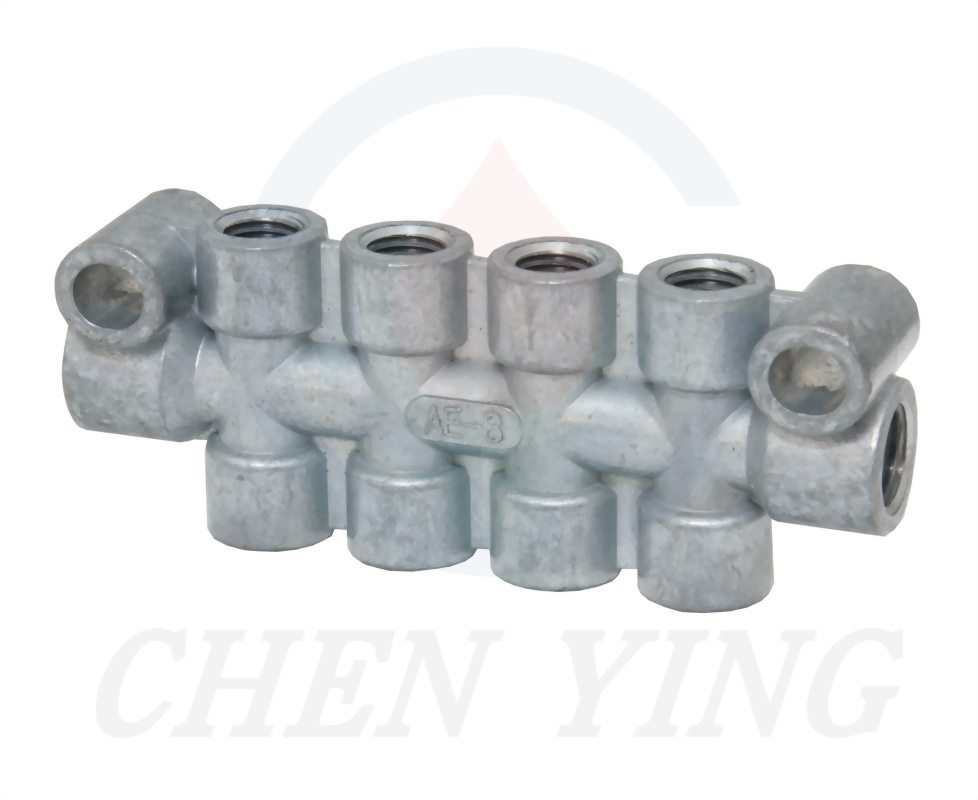

AE Type Distributor
- Work with Resistance Lubricators
-
Suitable for Oil and Grease

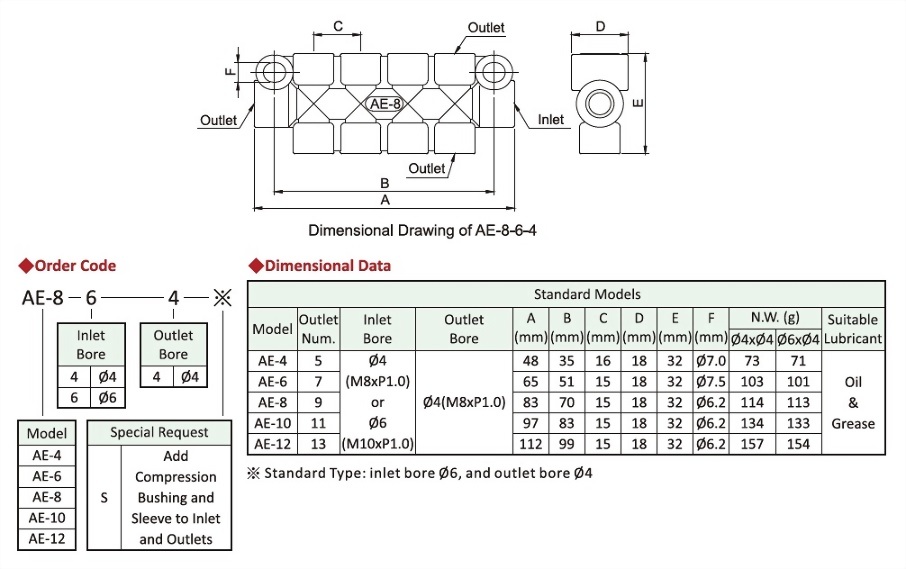

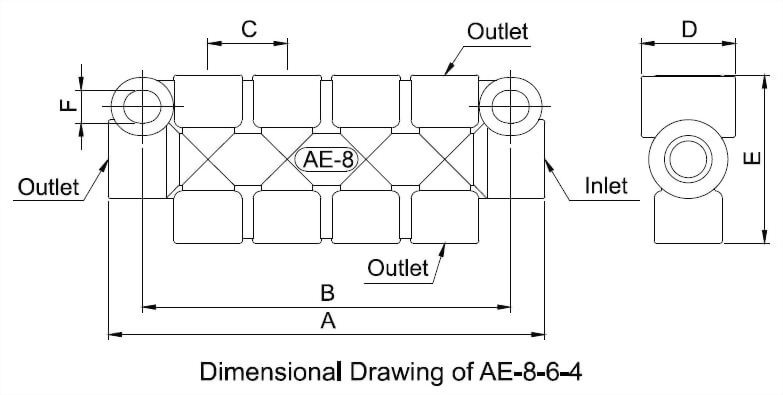

◆ Dimensional Data
| Model | Outlet Num. | Inlet Bore | Outlet Bore | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | N.W. (g) | Suitable Lubricant | |
| Ø4xØ4 | Ø6xØ4 | |||||||||||
| AE-4 | 5 |
Ø4(M8xP1.0)
or
Ø6(M10xP1.0) |
Ø4(M8xP1.0) | 48 | 35 | 16 | 18 | 32 | Ø7.0 | 73 | 71 |
Oil
& Grease |
| AE-6 | 7 | 65 | 51 | 15 | 18 | 32 | Ø6.2 | 103 | 101 | |||
| AE-8 | 9 | 83 | 70 | 15 | 18 | 32 | Ø6.2 | 114 | 113 | |||
| AE-10 | 11 | 97 | 83 | 15 | 18 | 32 | Ø6.2 | 134 | 133 | |||
| AE-12 | 13 | 112 | 99 | 15 | 18 | 32 | Ø6.2 | 157 | 154 | |||
※Standard Type：inlet bore Ø6, and outlet bore Ø4
◆ Order Code
| Model | Inlet Bore | Outlet Bore | Special Request | |||
| AE-4 | 6 | 4 | ※ | |||
| AE-6 | 4 | Ø4 | 4 | Ø4 | S | Add Compression Bushing and Sleeve to Inlet and Outlets |
| AE-8 | 6 | Ø6 | ||||
| AE-10 | ||||||
| AE-12 | ||||||
