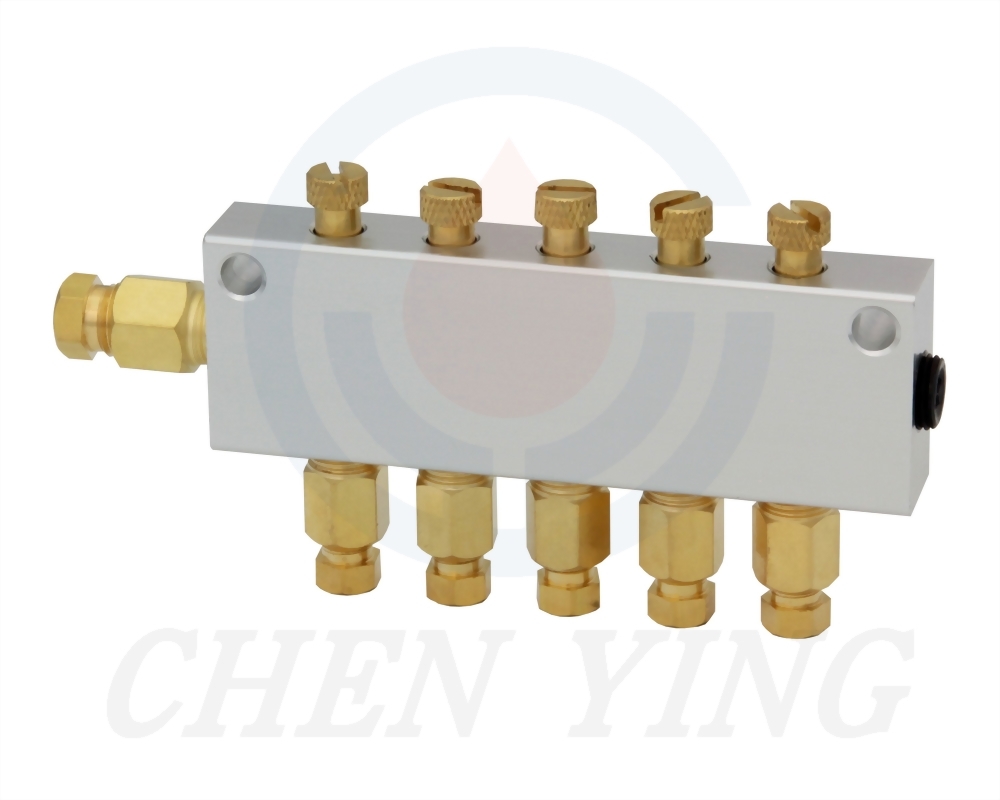

B Type Adjustable Distributor
- Work with Resistance Lubricators
-
Suitable for Oil and Grease

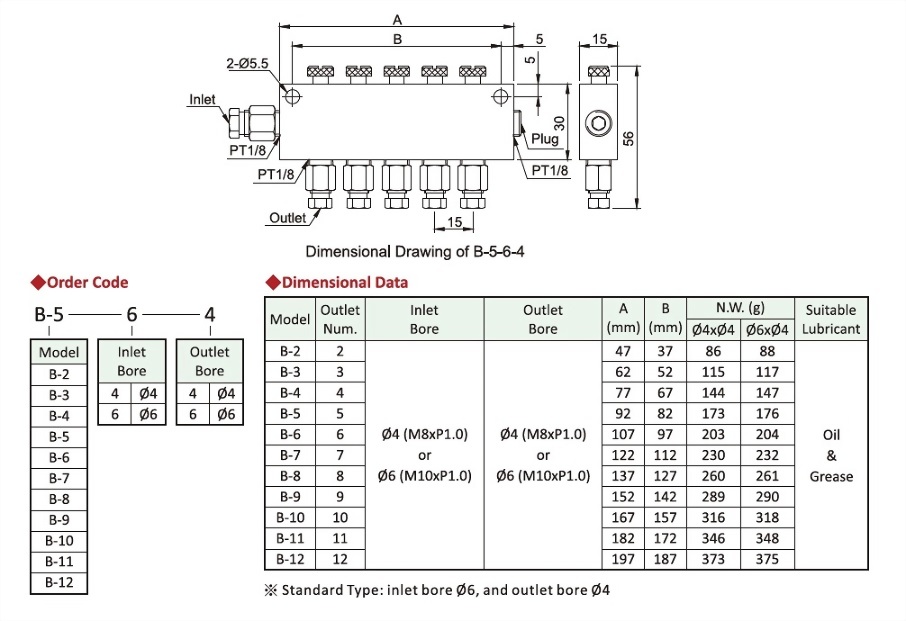

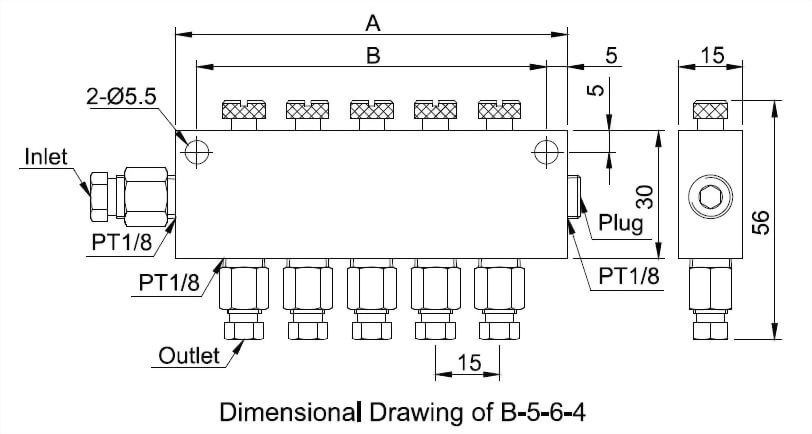

◆ Dimensional Data
| Model | Outlet Num. | Inlet Bore | Outlet Bore | A(mm) | B(mm) | N.W. (g) | Suitable Lubricant | |
| Ø4xØ4 | Ø6xØ4 | |||||||
| B-2 | 2 |
Ø4(M8xP1.0)
or
Ø6(M10xP1.0)
|
Ø4(M8xP1.0)
or
Ø6(M10xP1.0)
|
47 | 37 | 86 | 88 |
Oil
or
Grease
|
| B-3 | 3 | 62 | 52 | 115 | 117 | |||
| B-4 | 4 | 77 | 67 | 144 | 147 | |||
| B-5 | 5 | 92 | 82 | 173 | 176 | |||
| B-6 | 6 | 107 | 97 | 203 | 204 | |||
| B-7 | 7 | 122 | 112 | 230 | 232 | |||
| B-8 | 8 | 137 | 127 | 260 | 261 | |||
| B-9 | 9 | 152 | 142 | 289 | 290 | |||
| B-10 | 10 | 167 | 157 | 316 | 318 | |||
| B-11 | 11 | 182 | 172 | 346 | 348 | |||
| B-12 | 12 | 197 | 187 | 373 | 375 | |||
※Standard Type：inlet bore Ø6, and outlet bore Ø4
◆ Order Code
| Model |
Inlet Bore |
Outlet Bore | ||
| B-2 | 6 | 4 | ||
| B-3 | 4 | Ø4 | 4 | Ø4 |
| B-4 | 6 | Ø6 | 6 | Ø6 |
| B-5 | ||||
| B-6 | ||||
| B-7 | ||||
| B-8 | ||||
| B-9 | ||||
| B-10 | ||||
| B-11 | ||||
| B-12 | ||||
