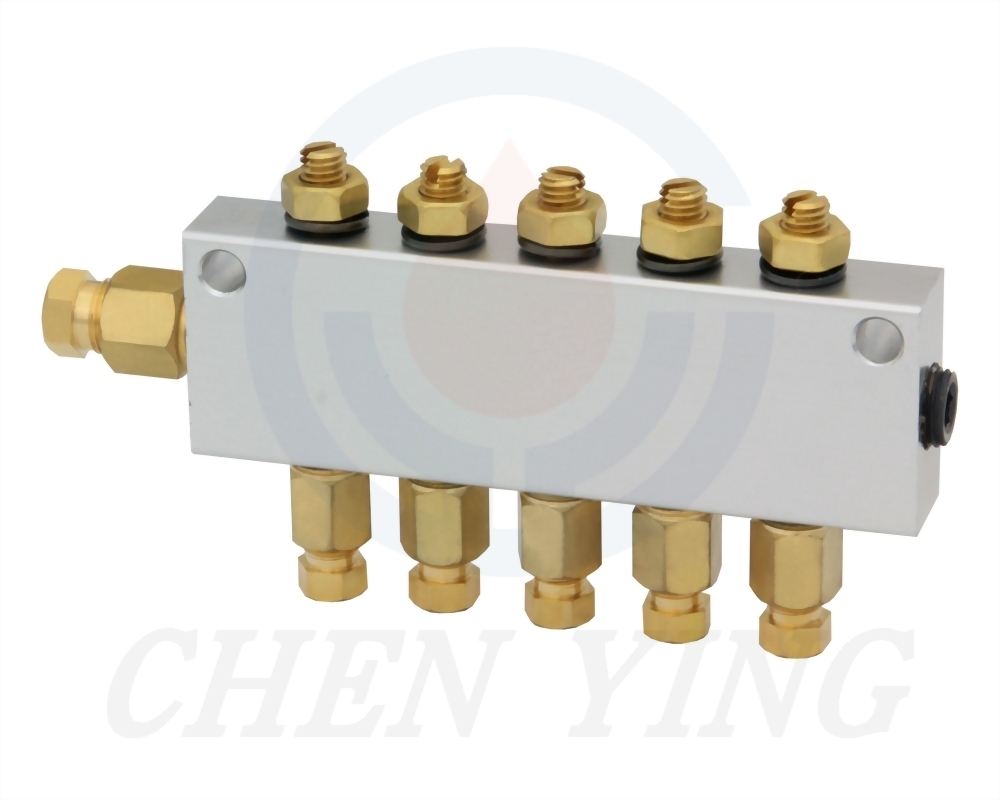

CB Type Anti-Vibration Distributor with Nut

CB Type Anti-Vibration Distributor with Nut

Work with Resistance Lubricators
Suitable for Oil and Grease

※ Please select the specifications you need.：
*Model
*Inlet Bore
*Outlet Bore
Remarks

Q'ty :

Specifications

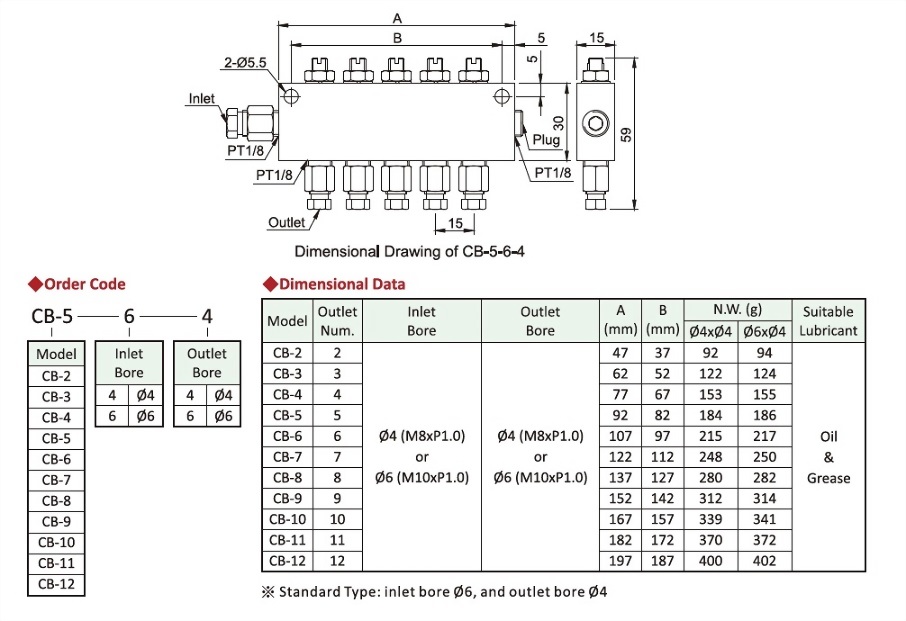

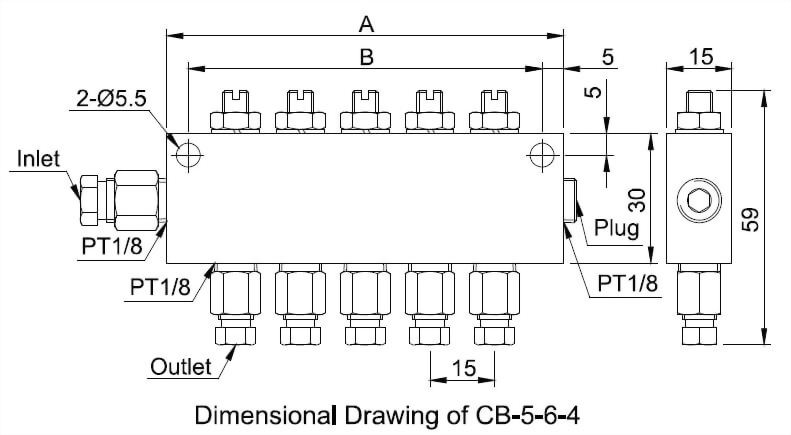

◆ Dimensional Data

Model	Outlet Num.	Inlet Bore	Outlet Bore	A(mm)	B(mm)	N.W. (g)		Suitable Lubricant
Model	Outlet Num.	Inlet Bore	Outlet Bore	A(mm)	B(mm)	Ø4xØ4	Ø6xØ4	Suitable Lubricant
CB-2	2	Ø4(M8xP1.0) 或 Ø6(M10xP1.0)	Ø4(M8xP1.0) 或 Ø6(M10xP1.0)	47	37	92	94	Oil or Grease
CB-3	3			62	52	122	124
CB-4	4			77	67	153	155
CB-5	5			92	82	184	186
CB-6	6			107	97	215	217
CB-7	7			122	112	248	250
CB-8	8			137	127	280	282
CB-9	9			152	142	312	314
CB-10	10			167	157	339	341
CB-11	11			182	172	370	372
CB-12	12			197	187	400	402

※Standard Type：inlet boreØ6, and outlet bore Ø4

◆ Order Code

Model	Inlet Bore		Outlet Bore
CB-2	6		4
CB-3	4	Ø4	4	Ø4
CB-4	6	Ø6	6	Ø6
CB-5
CB-6
CB-7
CB-8
CB-9
CB-10
CB-11
CB-12
