CCB Type Large Volumetric Distributor
- Work with Pressure-Relief Lubricators
-
Suitable for Oil
- CCB type large volumetric distributor can deliver a precisely metered quantity of oil to each lubrication point.
- CCB needs to work with a pressure-relief type oil lubricator and discharges oil during the operation time of the lubricator. The minimum interval time setting is 5 minutes.
- There are two options for the discharge volume of CCB: two grooves stand for 1.0cc, and three grooves stand for 1.5cc.
- CCB is designed as a singular outlet unit, which can be assembled with a D type distributor to increase the outlet number from one to eight outlets.

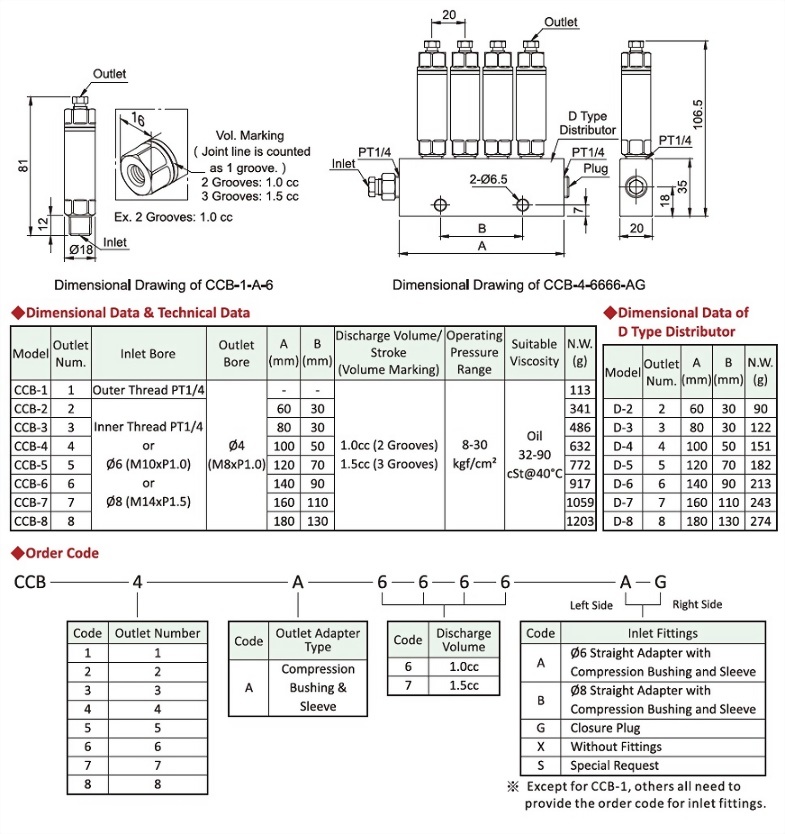

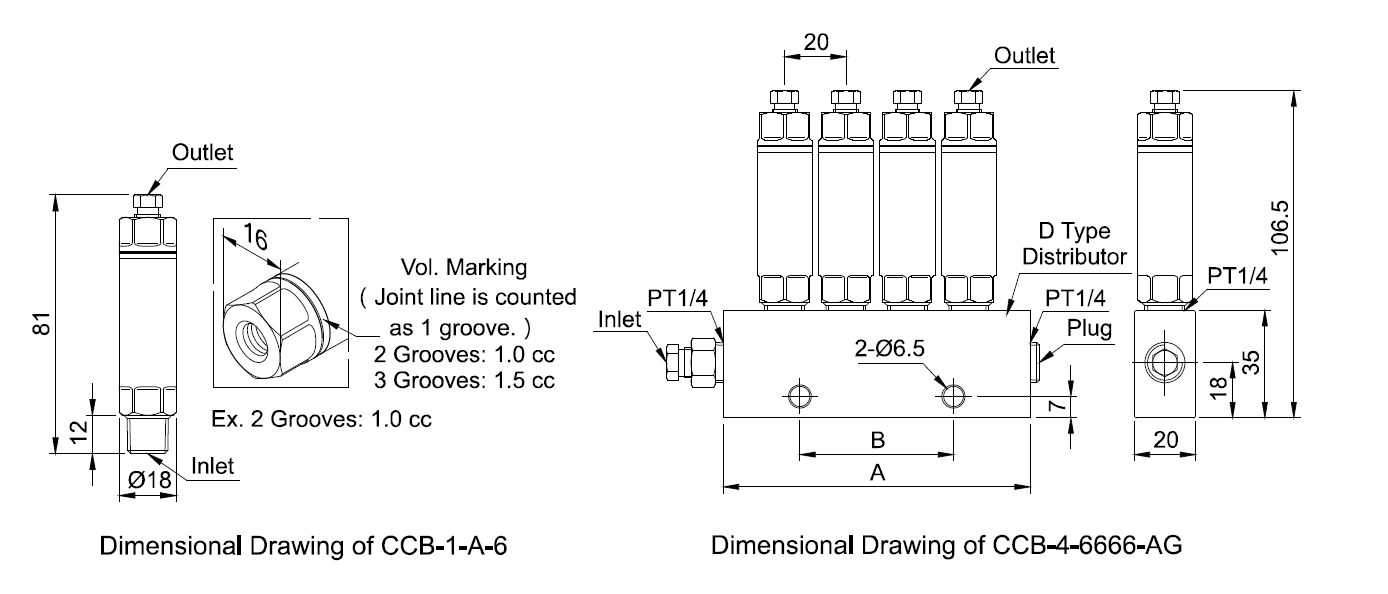

◆ Dimensional Data & Technical Data
Model
Outlet Num.
Inlet Bore
Outlet Bore
A(mm)
B(mm)
Discharge
Volume/Stroke
(Volume Marking)
Operating
Pressure Range
Suitable
Viscosity
N.W.(g)
CCB-1
1
Outer Thread PT1/4
Ø4
(M8xP1.0)
-
-
1.0cc (2
Grooves)
1.5cc (3 Grooves)
8~30kgf/cm²
Oil 32~90cSt@40℃
113
CCB-2
2
Inner
Thread PT1/4
or
Ø6(M10xP1.0)
or
Ø8(M14xP1.5)
60
30
341
CCB-3
3
80
30
486
CCB-4
4
100
50
632
CCB-5
5
120
70
772
CCB-6
6
140
90
917
CCB-7
7
160
110
1059
CCB-8
8
180
130
1203
◆ Dimensional Data of D Type Distributor
Model
Outlet Num.
A(mm)
B(mm)
N.W.(g)
D-2
2
60
30
90
D-3
3
80
30
122
D-4
4
100
50
151
D-5
5
120
70
182
D-6
6
140
90
213
D-7
7
160
110
243
D-8
8
180
130
274
◆ Order Code
Model
Outlet Number
Outlet Adapter Type
Discharge Volume
Left Side Inlet Fittings
Right Side Inlet
Fittings
CCB
4
A
6
A
G
1
1
A
Compression Bushing
& Sleeve
6
1.0cc
A
Ø6 Straight Adapter
with Compression Bushing and Sleeve
A
Ø6 Straight Adapter
with Compression Bushing and Sleeve
2
2
7
1.5cc
B
Ø8 Straight Adapter
with Compression Bushing and Sleeve
B
Ø8 Straight Adapter
with Compression Bushing and Sleeve
3
3
G
Closure Plug
G
Closure Plug
4
4
X
Without Fittings
X
Without Fittings
5
5
S
Special Request
S
Special Request
6
6
7
7
8
8
※Except for CCB-1, others all need to provide the order code for inlet fittings.
