CFB Type Grease Volumetric Distributor (Standard Type & Quick Coupling Type)
- Work with Pressure-Relief Lubricators
- Suitable for Grease
- CFB volumetric distributor can deliver a precisely metered quantity of grease to each lubrication point.
- CFB has to work with a pressure-relief type grease lubricator and discharge grease during the operation time of the lubricator.
- CFB is designed as a singular outlet unit, which can be assembled with a UF type distributor to increase the outlet number from one to twelve outlets.
- The main pipe should be a metal pipe or PPST50 high-pressure flexible hose. The inner diameter pipe should be larger than 4mm for NLGI 0 grease.
- There are two adapter options for inlets and outlets: (1) compression bushing and sleeve type; (2) quick coupling type.
- Recommend using quick coupling with an N12 nylon pipe. Please follow the instructions below to connect and disconnect a quick coupling.
◆ Instructions on How to Connect and Disconnect a Quick Coupling.
| Connecting Pipe witch Quick Coupling | Disconnecting Pipe with Quick Coupling | ||
|
1. Make sure the cutting edge of the pipe is smooth and flat. |
|
1. Push down the top of the quick coupling with the thumb and index finger to loosen it from the pipe. |
|
2. Insert the pipe into the quick coupling then you will hear two click sounds. |
|
2. Use the other hand to push the pipe into the quick coupling gently. Then,rotate the pipe for approximately a 90-degree angle and simultaneously pull the pipe out. |
| 3. Pull the pipe to check if it is securely locked. | |||

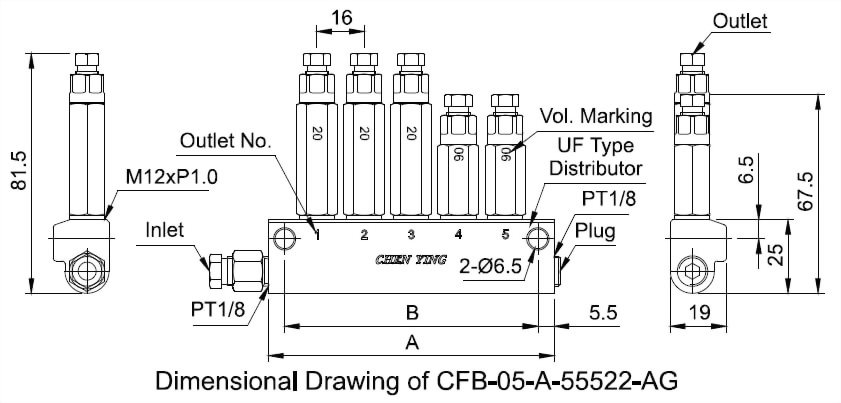

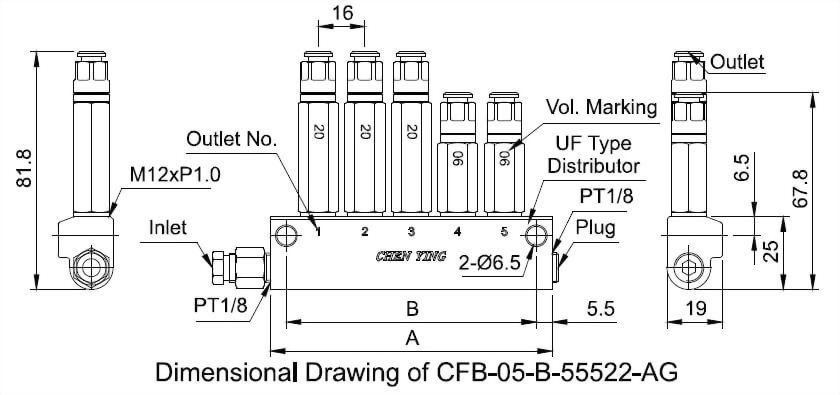

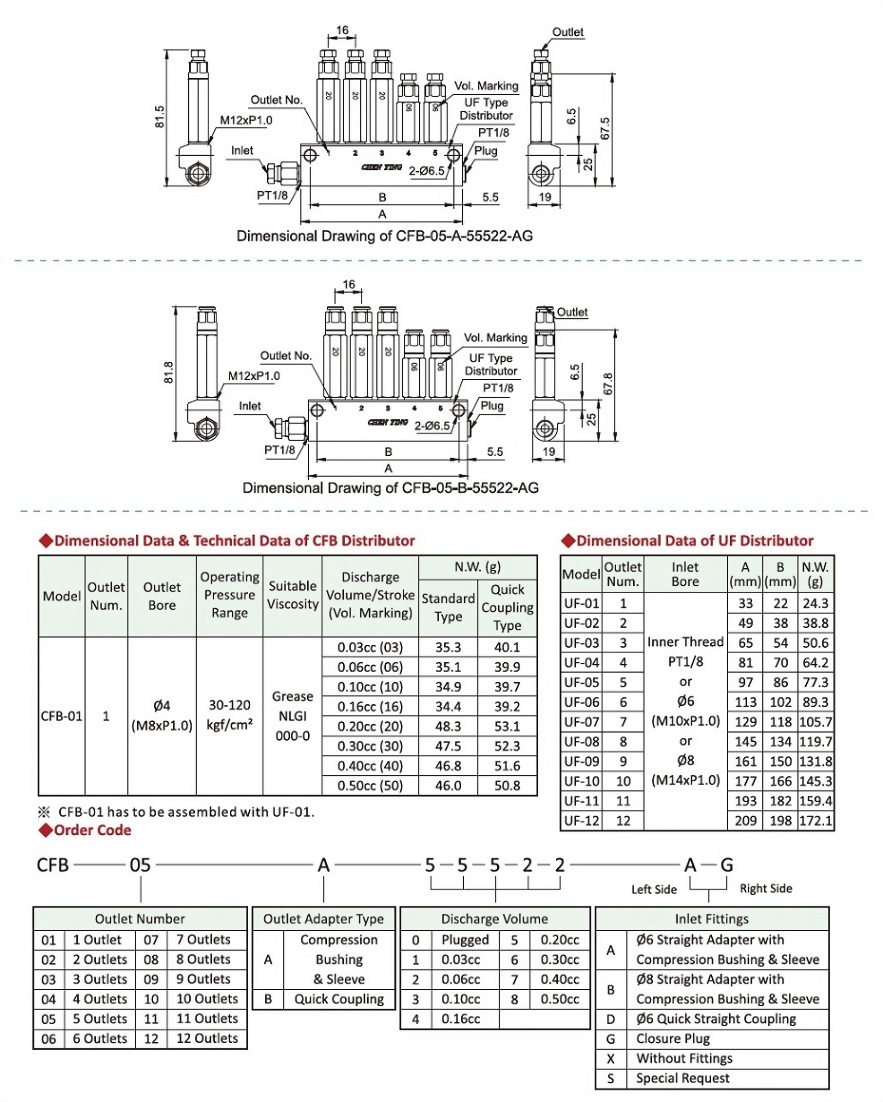

◆ Dimensional Data & Technical Data of CFB Distributor
Model
Outlet Num.
Outlet Bore
Operating Pressure Range
Suitable Viscosity
Discharge Volume/Stroke
(Vol. Marking)
N.W.(g)
Standard Type
Quick
Coupling Type
CFB-01
1
Ø4(M8xP1.0)
30~120kgf/cm²
Grease
NLGI 000~0
0.03cc (03)
35.3
40.1
0.06cc (06)
35.1
39.9
0.10cc (10)
34.9
39.7
0.16cc (16)
34.4
39.2
0.20cc (20)
48.3
53.1
0.30cc (30)
47.5
52.3
0.40cc (40)
46.8
51.6
0.50cc (50)
46.0
50.8
※CFB-01 has to be assembled with UF-01.
◆ Dimensional Data of UF Distributor
Model
Outlet Num.
Inlet Bore
A(mm)
B(mm)
N.W.(g)
UF-01
1
Inner Thread PT1/8
or
Ø6(M10xP1.0)
or
Ø8(M14xP1.5)
33
22
24.3
UF-02
2
49
38
38.8
UF-03
3
65
54
50.6
UF-04
4
81
70
64.2
UF-05
5
97
86
77.3
UF-06
6
113
102
89.3
UF-07
7
129
118
105.7
UF-08
8
145
134
119.7
UF-09
9
161
150
131.8
UF-10
10
177
166
145.3
UF-11
11
193
182
159.4
UF-12
12
209
198
172.1
◆ Order Code
| Model | Outlet Number | Outlet Adapter Type | Discharge Volume | Left Side Inlet Fittings | Right Side Inlet Fittings | |||||
| CFB | 05 | A | 5-5-5-2-2 | A | G | |||||
| 01 | 1 Outlet | A | Compression Bushing & Sleeve | 0 | Plugged | A | Ø6 Straight Adapter with Compression Bushing & Sleeve | A | Ø6 Straight Adapter with Compression Bushing & Sleeve | |
| 02 | 2 Outlets | B | Quick Coupling | 1 | 0.03cc | B | Ø8 Straight Adapter with Compression Bushing & Sleeve | B | Ø8 Straight Adapter with Compression Bushing & Sleeve | |
| 03 | 3 Outlets | 2 | 0.06cc | D | Ø6 Quick Straight Coupling | D | Ø6 Quick Straight Coupling | |||
| 04 | 4 Outlets | 3 | 0.10cc | G | Closure Plug | G | Closure Plug | |||
| 05 | 5 Outlets | 4 | 0.16cc | X | Without Fittings | X | Without Fittings | |||
| 06 | 6 Outlets | 5 | 0.20cc | S | Special Request | S | Special Request | |||
| 07 | 7 Outlets | 6 | 0.30cc | |||||||
| 08 | 8 Outlets | 7 | 0.40cc | |||||||
| 09 | 9 Outlets | 8 | 0.50cc | |||||||
| 10 | 10 Outlets | |||||||||
| 11 | 11 Outlets | |||||||||
| 12 | 12 Outlets | |||||||||
