Compression Bushing

※ Please select the specifications you need.：

*Model
Remarks

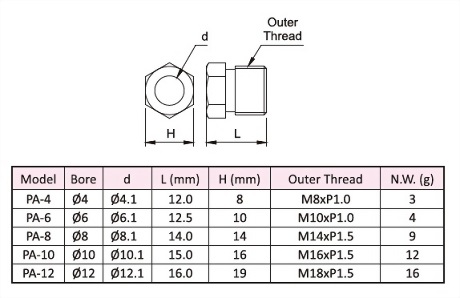

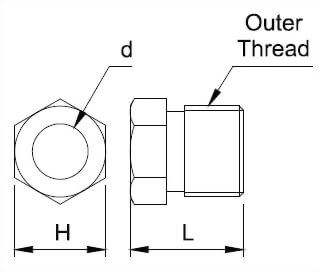

Compression Bushing Dimensional Drawing


◆Dimensional Data & Technical Data

Model Bore d L(mm) H(mm) Outer Thread N.W.(g)
PA-4 Ø4 Ø4.1
 12.0 8 M8xP1.0 3
PA-6 Ø6 Ø6.1
 12.5 10 M10xP1.0 4
PA-8 Ø8 Ø8.1
 14.0 14 M14xP1.5 9
PA-10 Ø10 Ø10.1
 15.0 16 M16xP1.5 12
PA-12 Ø12 Ø12.1
 16.0 19 M18xP1.5 16
