• One-Side-Tapered Compression Bushing

One-Side-Tapered Compression Bushing

※ Please select the specifications you need.：

*Model
Remarks

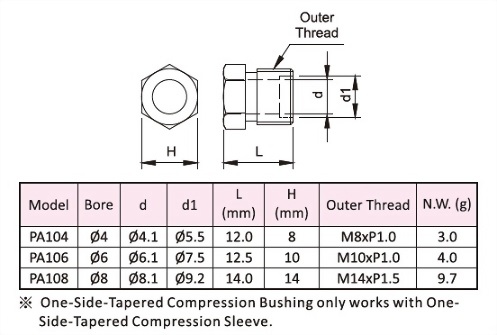

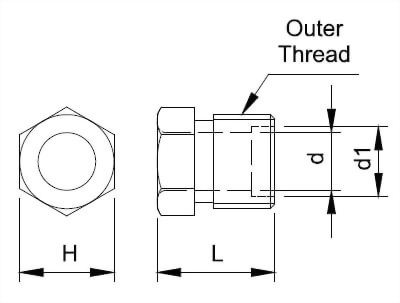

Model Bore d d1 L(mm) H(mm) Outer Thread N.W.(g)
PA104 Ø4 Ø4.1 Ø5.5 12.0 8 M8xP1.0 3.0
PA106 Ø6 Ø6.1 Ø7.5 12.5 10 M10xP1.0 4.0
PA108 Ø8 Ø8.1 Ø9.2 14.0 14 M14xP1.5 9.7
※One-Side-Tapered Compression Bushing only works with One-Side-Tapered Compression Sleeve.
