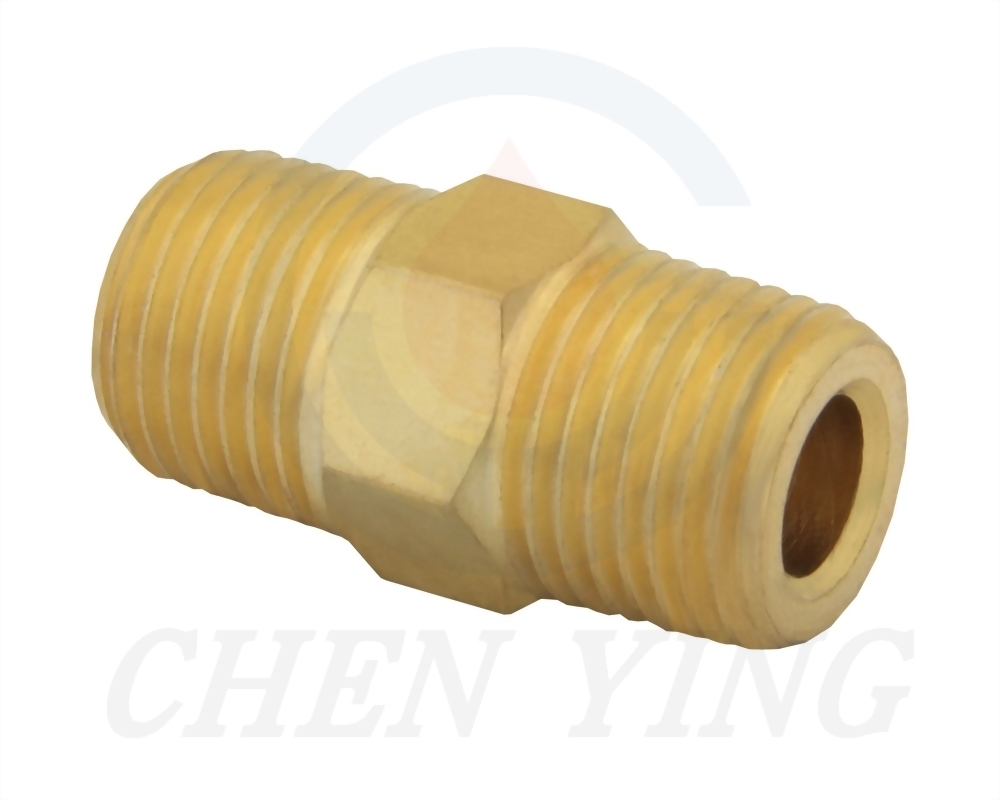

Connector

※ Please select the specifications you need.：
*Model
Remarks

Q'ty :

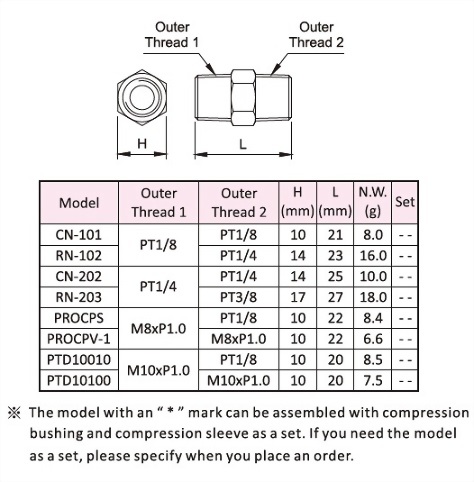

Specifications

Model	Outer Thread 1	Outer Thread 2	L(mm)	H(mm)	N.W.(g)
CN-101	PT1/8	PT1/8	21	10	8.0
RN-102	PT1/8	PT1/4	23	14	16.0
CN-202	PT1/4	PT1/4	25	14	10.0
RN-203	PT1/4	PT3/8	27	17	18.0
PROCPS	M8xP1.0	PT1/8	22	10	8.4
PROCPV-1	M8xP1.0	M8xP1.0	22	10	6.6
PTD10010	M10xP1.0	PT1/8	20	10	8.5
PTD10100	M10xP1.0	M10xP1.0	20	10	7.5
