Electromagnetic Pump

※ Please select the specifications you need.：

*Model
*Function
*Voltage
*Discharge Bore
Remarks
  1. Electromagnetic pump operates according to the principle of electromagnetic with low power consumption.
  2. Electromagnetic pump is compact and suitable for limited workspace.
  3. Recommend applying electromagnetic pumps to small-size machines that require continuous lubrication and cooling, such as lathes, milling machines, grinding machines, and press machines.
  4. The standard length of the pipe is 300mm, but it can be customized upon request.
  5. The pipe's length and the lubricant's viscosity affect the discharge volume. The shorter the pipe length or the thinner the lubricant, the higher the discharge volume.
  6. The higher the temperature, the lower the operating pressure.

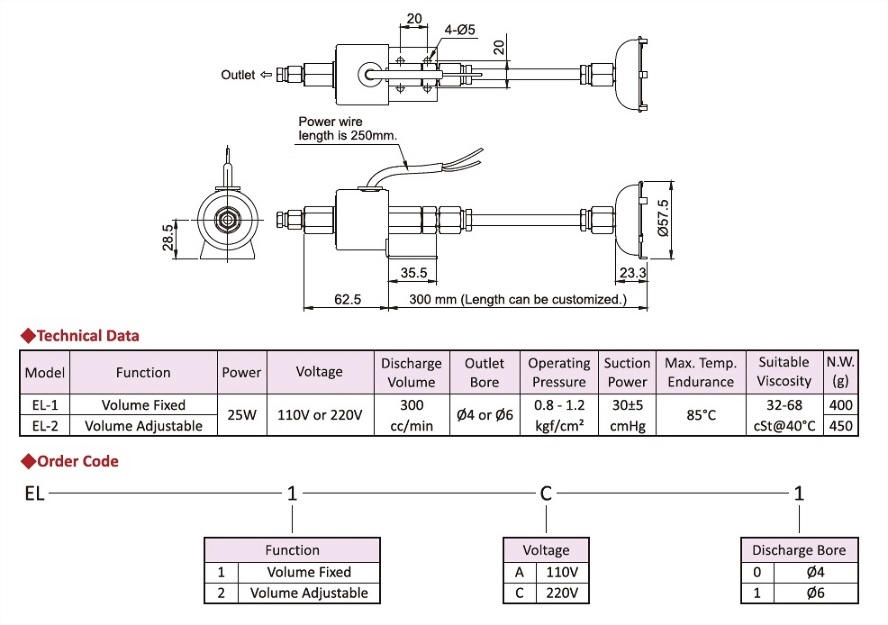

Electromagnetic Pump Dimensional-Drawing


◆Technical Data

Model Function Power Voltage Discharge Volume Outlet Bore Operating Pressure Suction Power Max. Temp. Endurance Suitable Viscosity N.W.(g)
EL-1 Volume Fixed 25W 110V or 220V 300cc/min Ø4 or Ø6 0.8 - 1.2 kgf/cm2 30±5 cmHg 85℃ 32~68 cSt@40℃ 400
EL-2 Volume Adjustable 450

◆ Order Code

Model Function Voltage Discharge Bore
EL 1 C 1
1 Volume Fixed
 A 110V 0 Ø4
2 Volume Adjustable C 220V 1 Ø6
