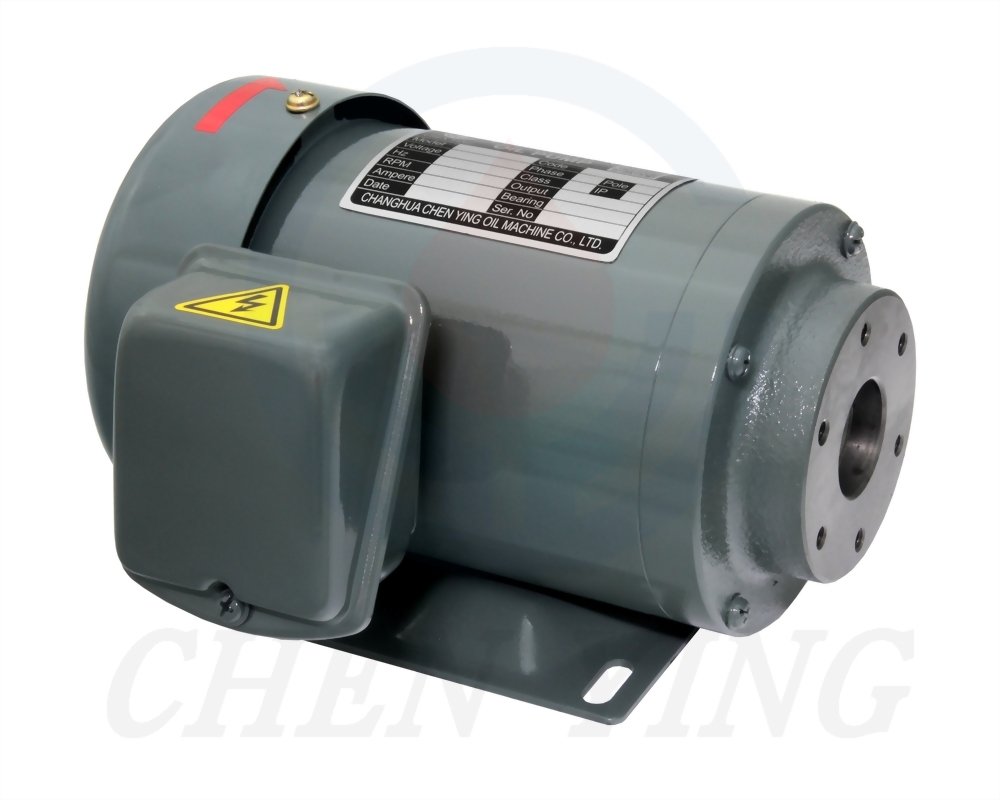

• Steel Plate Frame Horizontal Motor

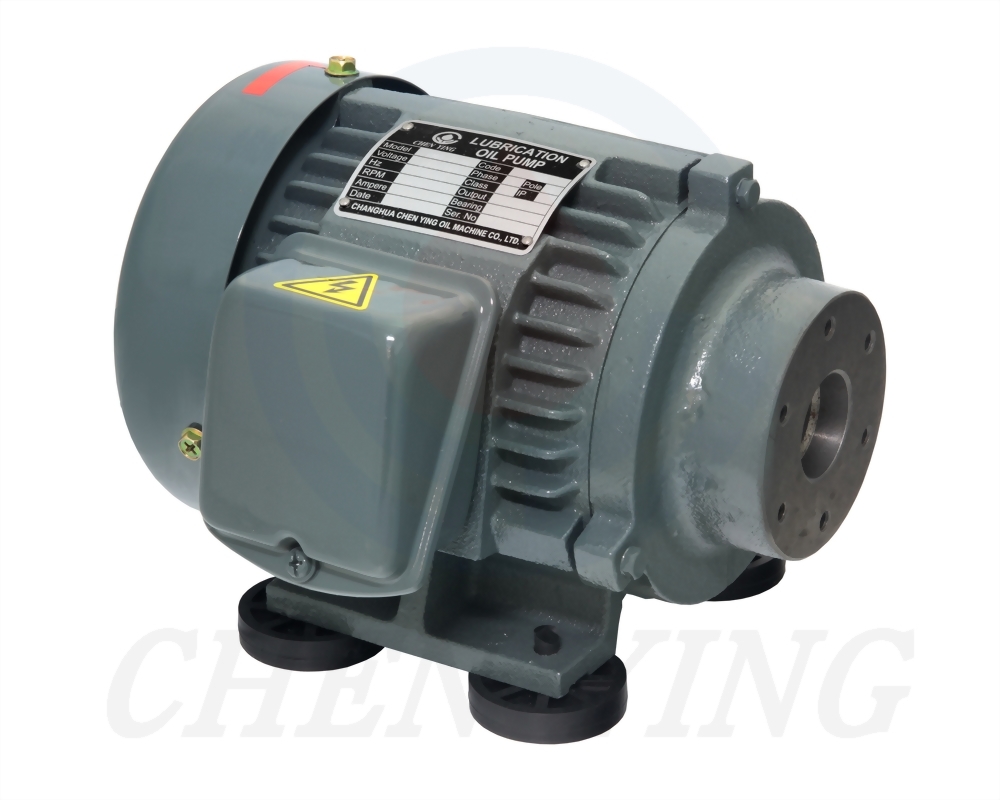

  • Cast Iron Frame Horizontal Motor

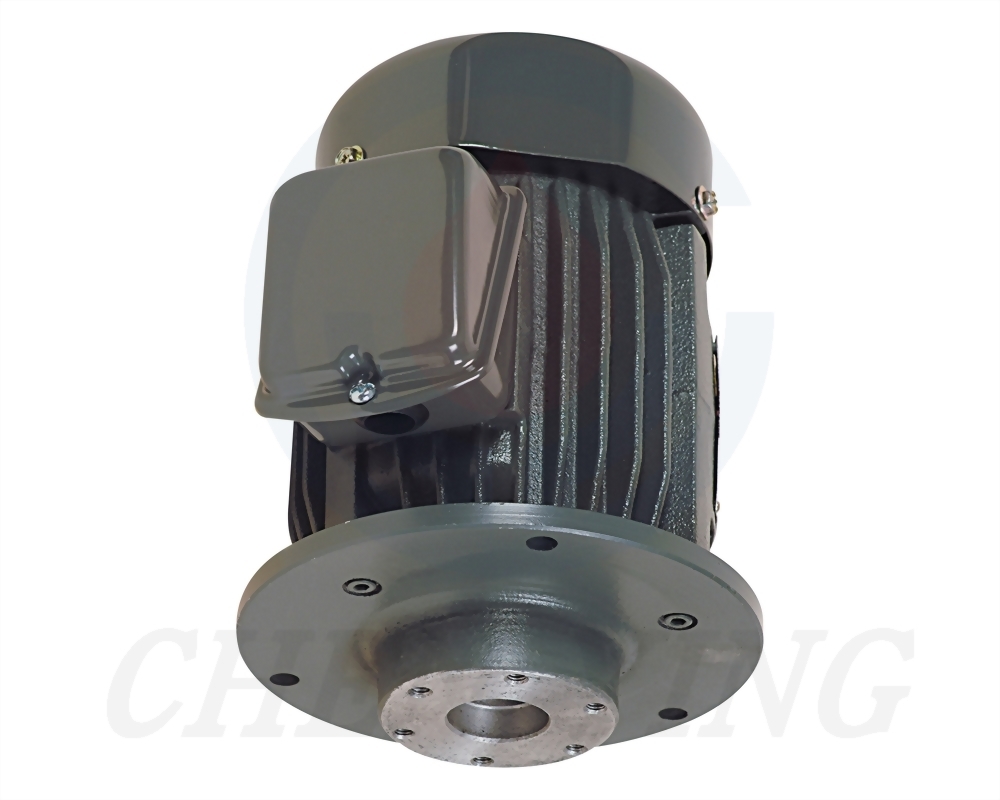

  • Cast Iron Frame Vertical Motor

Horizontal / Vertical Motor

※ Please select the specifications you need.：

*Model
*HP
*Voltage
*Type
*Frame
Remarks

◆ Steel Plate Frame Horizontal Motor

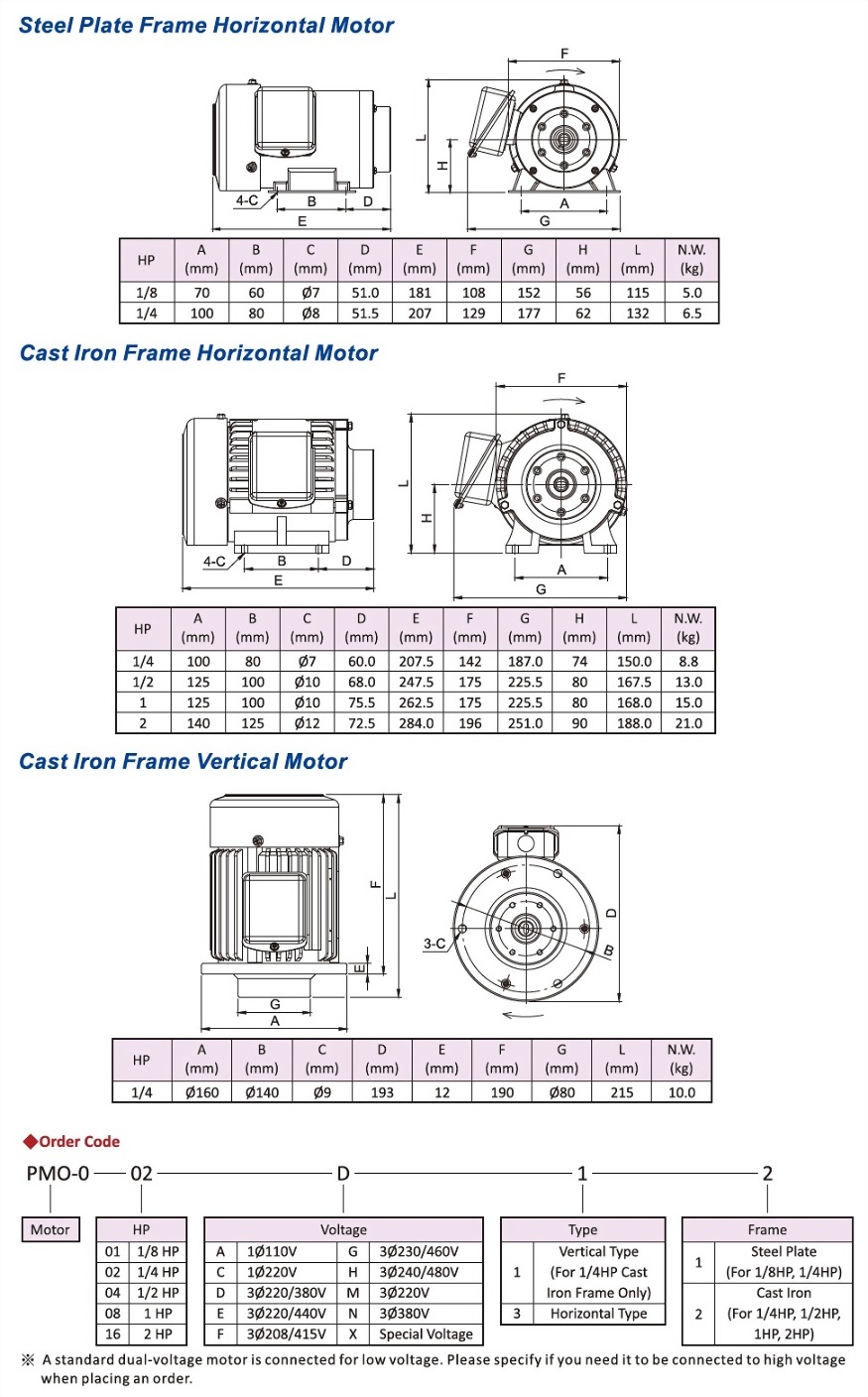

Steel Plate Frame Horizontal Motor Dimensional Drawing

HP A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm) H(mm) L(mm) N.W.(kg)
1/8 70 60 Ø7 51.0 181 108 152 56 115 5.0
1/4 100 80 Ø8 51.5 207 129 177 62 132 6.5

◆ Cast Iron Frame Horizontal Motor

Cast Iron Frame Horizontal Motor Dimensional Drawing

HP A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm) H(mm) L(mm) N.W.(kg)
1/4 100 80 Ø7 60.0 207.5 142 187.0 74 150.0 8.8
1/2 125 100 Ø10 68.0 247.5 175 225.5 80 167.5 13.0
1 125 100 Ø10 75.5 262.5 175 225.5 80 168.0 15.0
2 140 125 Ø12 72.5 284.0 196 251.0 90 188.0 21.0

◆ Cast Iron Frame Vertical Motor

Cast Iron Frame Vertical Motor Dimensional Drawing

HP A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) G(mm) L(mm) N.W.(kg)
1/4 Ø160 Ø140 Ø9 193 12 190 Ø80 215 10.0


◆ Order Code

Model HP Voltage Type Frame
PMO-0 02 D 1 2
01 1/8 HP A 1Ø110V 1 Vertical Type(For 1/4HP Cast Iron Frame Only) 1 Stell Plate(For 1/8HP,1/4HP)
02 1/4 HP C 1Ø220V 3 Horizontal Type 2 Cast Iron(For 1/4HP,1/2HP,1HP,2HP)
04 1/2 HP D 3Ø220/380V
08 1 HP E 3Ø220/440V
16 2 HP F 3Ø208/415V
G 3Ø230/460V
H 3Ø240/480V
X Special Voltage

※A standard dual-voltage motor is connected for low voltage. Please specify if you need it to be connected to high voltage when placing an order.
