Motor with Connector

※ Please select the specifications you need.：
*Model
*HP
*Voltage
*Type
Special Request (Add Rotary Oil Pump)
Optional
Remarks

Q'ty :

Specifications

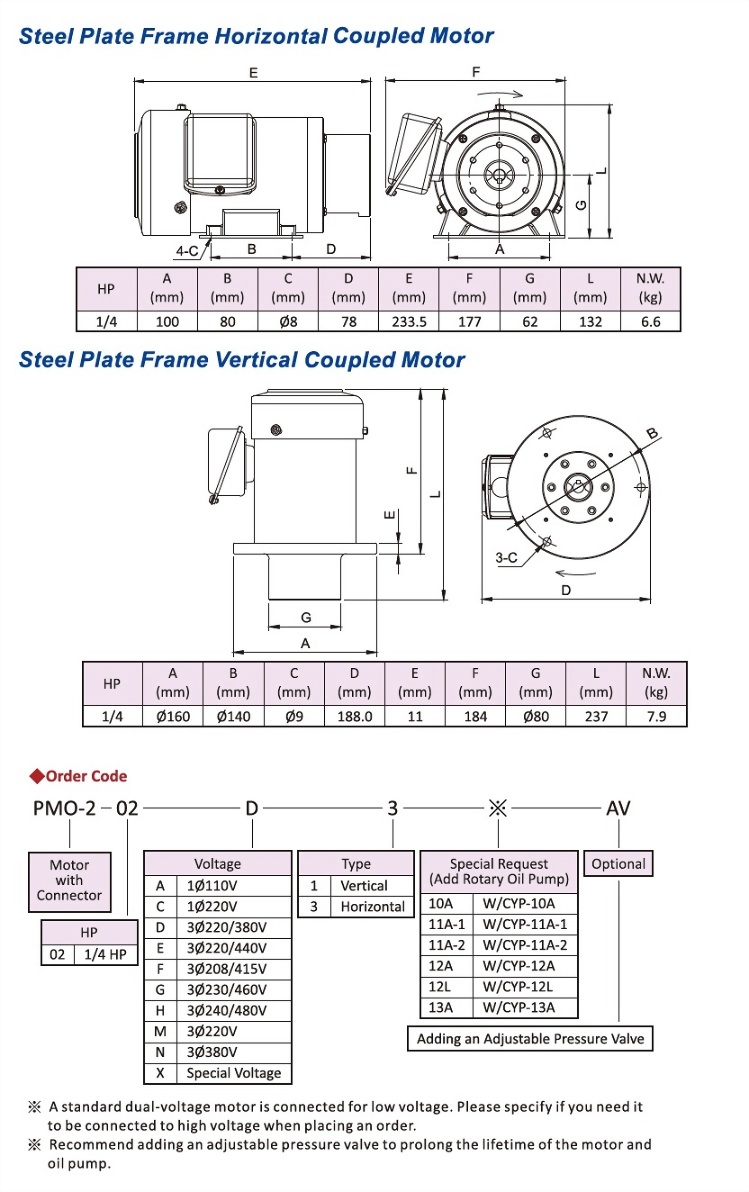

◆ Steel Plate Frame Horizontal Coupled Motor

HP	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	L(mm)	N.W.(kg)
1/4	100	80	Ø8	78	233.5	177	62	132	6.6

◆ Steel Plate Frame Vertical Coupled Motor

HP	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	L(mm)	N.W.(kg)
1/4	Ø160	Ø140	Ø9	188.0	11	184	Ø80	237	7.9

◆ Order Code

Motor with Connector	HP		Voltage		Type		Special Request (Add Rotary Oil Pump)		Optional
PMO-2	02		D		3		※		AV
	02	1/4HP	A	1Ø110V	1	Vertical	10A	W/CYP-10A	AV	Adding an Adjustable Pressure Valve
			C	1Ø220V	3	Horizontal	11A-1	W/CYP-11A-1
			D	3Ø220/380V			11A-2	W/CYP-11A-2
			E	3Ø220/440V			12A	W/CYP-12A
			F	3Ø208/415V			12L	W/CYP-12L
			G	3Ø230/460V			13A	W/CYP-13A
			H	3Ø240/480V
			X	Special Voltage

※A standard dual-voltage motor is connected for low voltage.Please specify if you need it to be connected to high voltage when placing an order.

※Recommend adding an adjustable pressure valve to prolong the lifetime of the motor and oil pump.

◆Dimensional Data & Technical Date

Model	Applicable Rotational Speed(min^-1)	Discharge Voluma(L/min)	A(mm)	B(mm)	C(mm)	D Bore	Max. Pressure	Suitable Viscosity	Suitable Temp. Range	N.W.(g)
CYP-10A	1420-1720	1.1-1.4	60.5	41	12	PT1/8	5 kgf/cm²	32-68 cSt@40℃	0-90℃	616
CYP-11A-1	1420-1720	2.2-2.7	64.5	45	12	PT1/8				665
CYP-11A-2	1420-1720	2.2-2.7	64.5	45	12	PT1/4				664
CYP-12A	1420-1720	3.7-4.5	70.5	51	12	PT1/4				751
CYP-12L	450-1200	1.1-3.0	62.5	43	11	PT1/4				650
CYP-13A	1420-1720	6.5-7.9	82.5	63	15	PT3/8				924

※ IF you need to add an adjustable pressure valve to the rotary oil pump,please add AV after the model number when you place an order. For example,CYP-11A-1-AV stands for one set of CYP-11A-1 assembled with CYP-AV.

※After adding the adjustable pressure valve,the net weight increases by 110g.
