1/2HP and above Cast Iron Frame Horizontal Motor with Heavy Oil Pump

※ Please select the specifications you need.：
*Rotary Oil Pump Model No.
*Adjustable Pressure Valve CYP-HA
*Cast Iron Frame Horizontal Motor
*Voltage
Special Request
Remarks

Q'ty :

Specifications

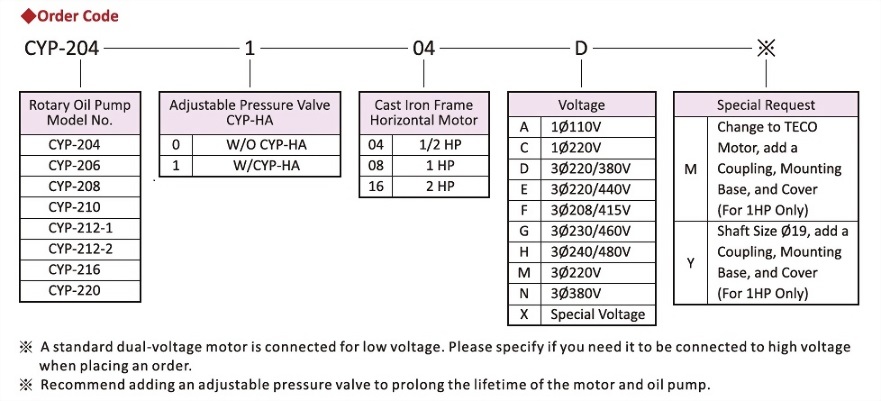

◆ Order Code

Rotary Oil Pump Model No.	Adjustable Pressure Valve CYP-HA		Cast Iron Frame Horizontal Motor		Voltage		Special Request
CYP-204	1		04		D		※
CYP-206	0	W/O CYP-HA	04	1/2HP	A	1Ø110V	M	Change to TECO Motor, add a Coupling, Mounting Base, and Cover (For 1HP Only)
CYP-208	1	W/CYP-HA	08	1HP	C	1Ø220V	Y	Shaft Size Ø19, add a Coupling, Mounting Base, and Cover (For 1HP Only)
CYP-210			16	2HP	D	3Ø220/380V
CYP-212-1					E	3Ø220/440V
CYP-212-2					F	3Ø208/415V
CYP-216					G	3Ø230/460V
CYP-220					H	3Ø240/480V
					X	Special Voltage

※A standard dual-voltage motor is connected for low voltage. Please specify if you need it to be connected to high voltage when placing an order.

※Recommend adding an adjustable pressure valve to prolong the lifetime of the motor and oil pump.

◆ The dimensional and technical data of heavy oil pump is as described below.

◆ Dimensional Data & Technical Data

Model	Discharge Volume (L/min)		A(mm)	B Bore	Applicable Rotational Speed(min^-1)	Max. Pressure(kgf/cm²)	Suitable Viscosity	N.W.(kg)	Suitable PMO-0 Motors (Minimun Horsepower)
Model	1420min^-1	1720min^-1	A(mm)	B Bore	Applicable Rotational Speed(min^-1)	Max. Pressure(kgf/cm²)	Suitable Viscosity	N.W.(kg)	W/CYP-HA	W/O CYP-HA
CYP-204	7.5	9.0	143	PT1/2	450~2000	20	32~220 cSt@40℃	3.2	1/2HP	1HP
CYP-206	11.3	13.5	148	PT3/4				3.3	1/2HP	1HP
CYP-208	15.3	18.5	153	PT3/4				3.5	1/2HP	1HP
CYP-210	19.0	23.0	158	PT3/4				3.7	1/2HP	2HP
CYP-212-1	21.9	26.5	163	PT3/4				3.9	1HP	2HP
CYP-212-2	21.9	26.5	163	PT1				3.9	1HP	2HP
CYP-216	29.3	35.5	173	PT1				4.3	1HP	2HP
CYP-220	34.3	41.5	183	PT1				4.6	2HP	--

※ IF you need to add an adjustable pressure valve to a heavy oil pump, please add HA after the model number when you place an order. For example, CYP-216-HA stands for one set of CYP-216 assembled with CYP-HA.

※ After adding the adjustable pressure valve, the net weight increases by 322g.

※ Heavy oil pump can add a holder on request. The fixed hole distance is 84x38mm, and the height is 134mm.
