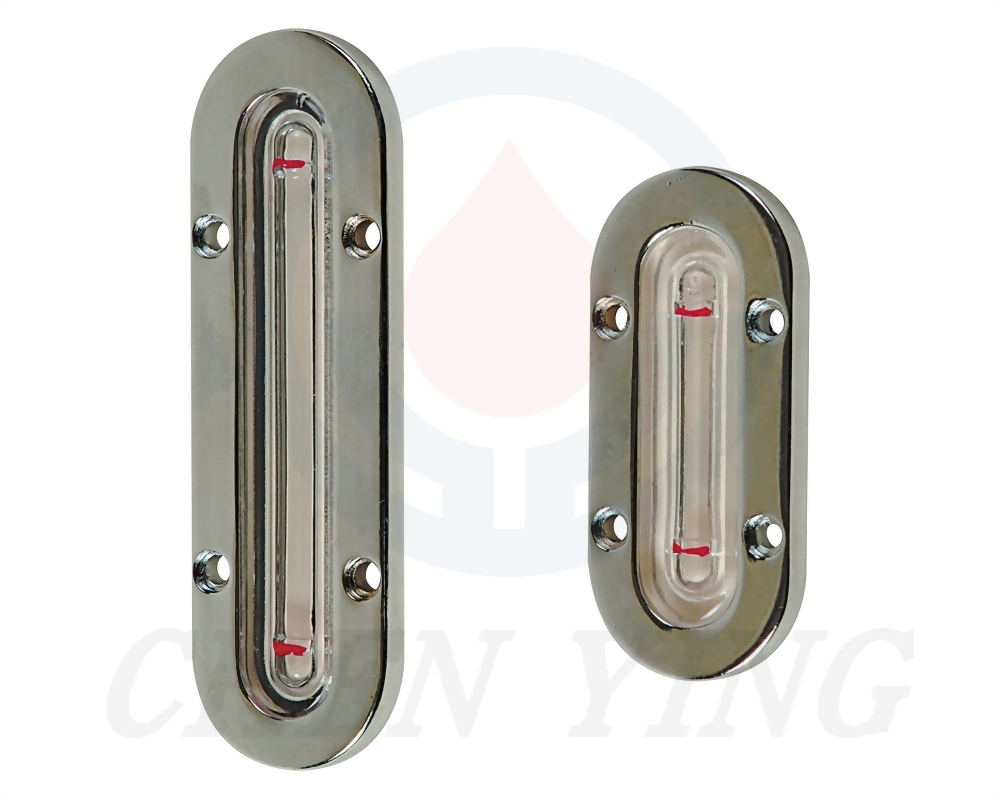

Oil Window

※ Please select the specifications you need.：

*Model
Remarks

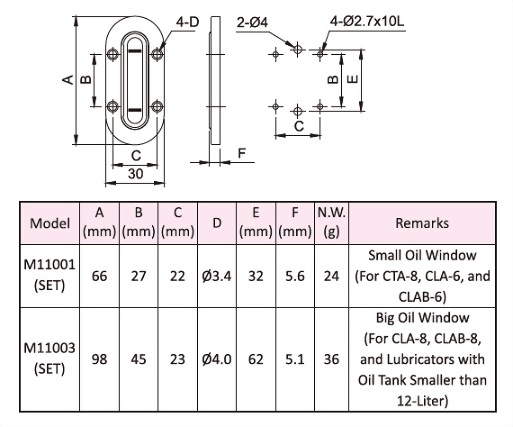

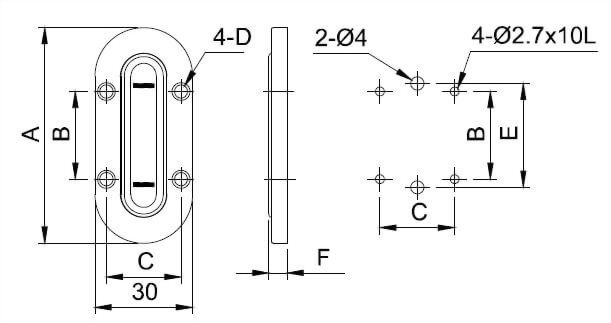

oil-window Dimensional-Drawing


Model A(mm) B(mm) C(mm) D E(mm) F(mm) N.W.(g) Remarks
M11001(SET) 66 27 22 Ø3.4 32 5.6 24 Small Oil Window (For CTA-8、CLA-6 and CLAB-6 )
M11003(SET) 98 45 23 Ø4.0 62 5.1 36 Big Oil Window (For CTA-8、CLAB-8 and Lubricators with Oil Tank Smaller than 12-Liter)
