OTS Spray Gun Set (Air and Oil Volume Adjustable)

※ Please select the specifications you need.：
*Model
*Air Inlet Bore
*Oil Inlet Bore
Special Request
Remarks

Q'ty :

OTS spray gun set can work independently without a lubricator based on the siphon principle. It is suitable for cutting machines for high-speed micro lubrication and cooling effects.

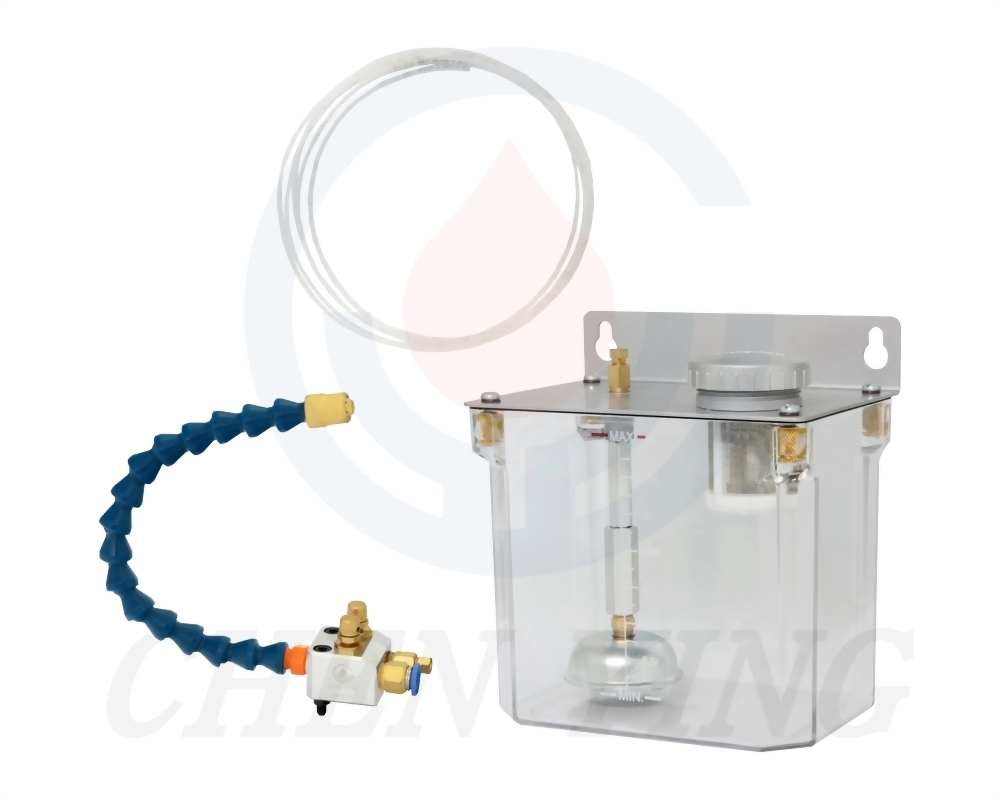

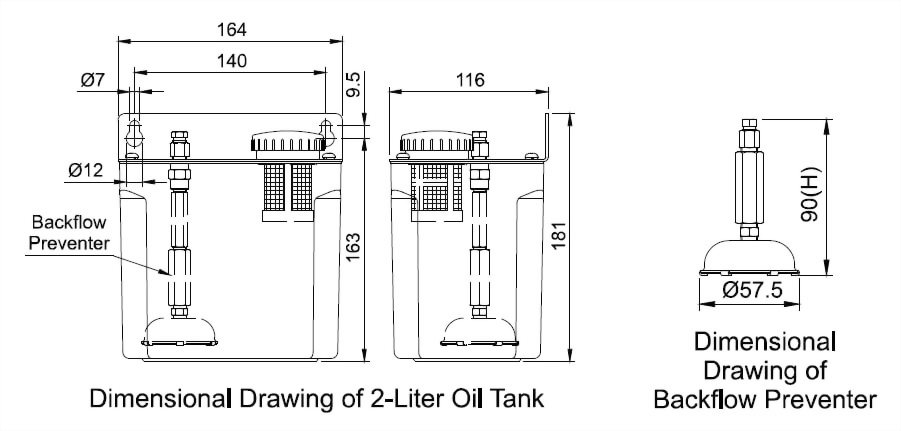

Standard OTS has an accessory kit that contains a 2-liter oil tank set, a backflow preventer, and a nylon pipe with a length of either ψ4x300cm or ψ6x150cm, depending on the oil inlet bore is ψ4 or ψ6.
Recommend using OTS with oil, cutting fluid, or water that the viscosity range is 0-68 cSt@40°C. Forbid to use any volatile oil that contains ester or ethylene glycol.
The net weight of OTS spray gun is 1013g per set.

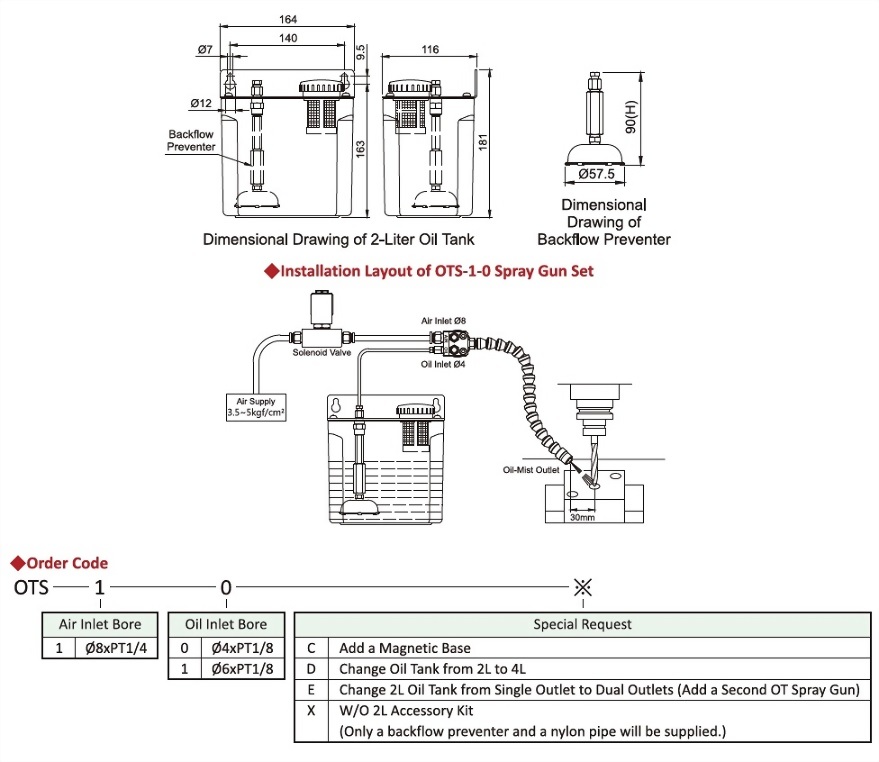

◆ Order Code

Model	Air Inlet Bore		Oil Inlet Bore		Special Request
OTS	1		0		※
	1	Ø8xP1/4	0	Ø4xP1/8	C	Add a Magnetic Base
			1	Ø6xP1/8	D	Change Oil Tank 2L to 4L
					E	Change 2L Oil Tank From Single Outlet to Dual Outlets (Add a Second OT Spray Gun)
					X	W/0 2L Accessory Kit (Only a backflow preventer and a nylon pipe will be supplied.

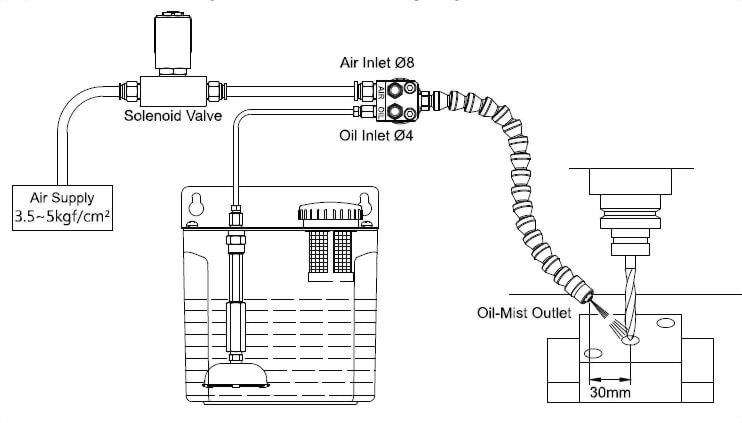

◆ Installation Layout of OTS-1-0 Spray Gun Set
