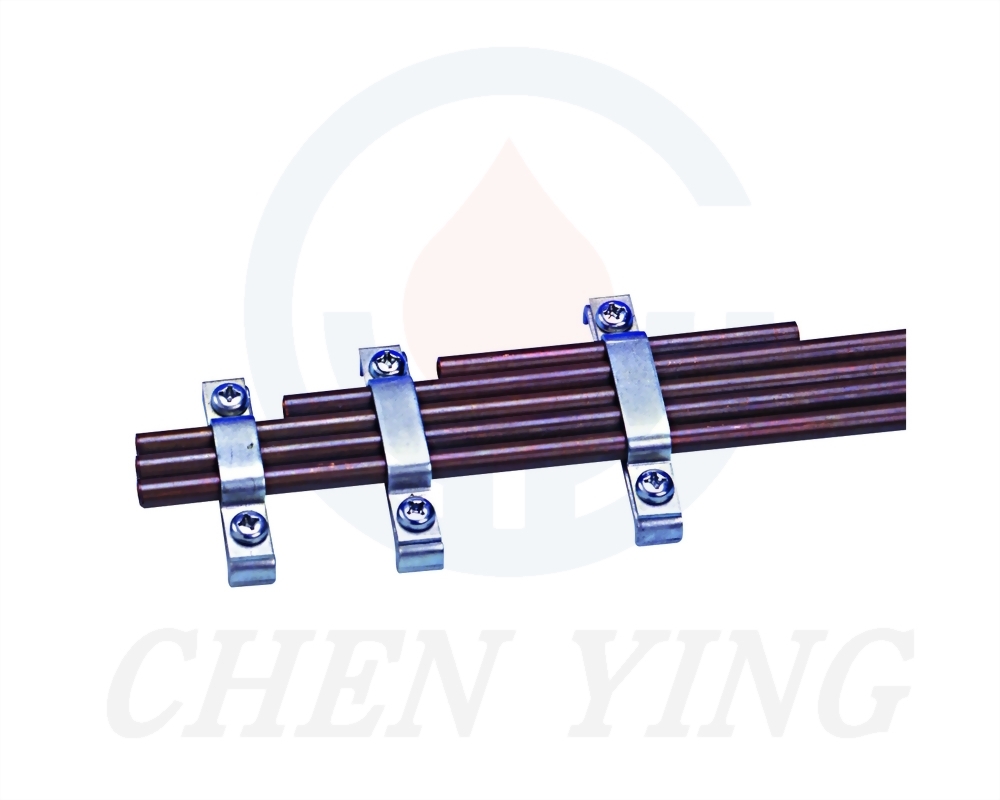

Saddle Pipe Clip Set (with a Saddle Pipe Clip, a Mounting Base, and Two Screws)

※ Please select the specifications you need.：
*Model
Remarks

Q'ty :

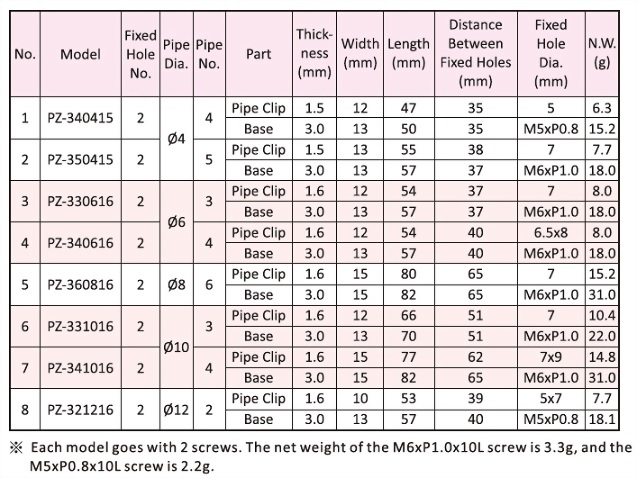

No.	Model	Fixed Hole No.	Pipe Dia.	Pipe No.	Part	Thick-ness(mm)	Width(mm)	Length(mm)	Distance Between Fixed Holes(mm)	Fixed Hole Dia.(mm)	N.W.(g)
1	PZ-340415	2	φ4	4	Pipe Clip	1.5	12	47	35	5	6.3
1	PZ-340415	2	φ4	4	Base	3.0	13	50	35	M5xP0.8	15.2
2	PZ-340616	2	φ6	4	Pipe Clip	1.6	12	54	40	6.5x8	8.0
2	PZ-340616	2	φ6	4	Base	3.0	13	57	40	M6xP1.0	18.0
3	PZ-331016	2	φ10	3	Pipe Clip	1.6	12	66	51	7	10.4
3	PZ-331016			3	Base	3.0	13	70	51	M6xP1.0	22.0
4	PZ-341016			4	Pipe Clip	1.6	15	77	62	7x9	14.8
4	PZ-341016			4	Base	3.0	15	82	65	M6xP1.0	31.0
5	PZ-321216	2	φ12	2	Pipe Clip	1.6	10	53	39	5x7	7.7
5	PZ-321216	2	φ12	2	Base	3.0	13	57	40	M5xP0.8	18.1

※ Each model goes with 2 Screws. The net weight of the M6xP1.0x10L screw is 3.3g, and the M5xP0.8x10L screw is 2.2g.
