• Reversible Oil Pump

Reversible Oil Pump (Clockwise and Anticlockwise)

※ Please select the specifications you need.：

*Model
Remarks
  1. The direction of the inlet and outlet is fixed; the rotating shaft can rotate either clockwise or anticlockwise.
  2. It is only suitable for assembling with gearboxes, not with motors.

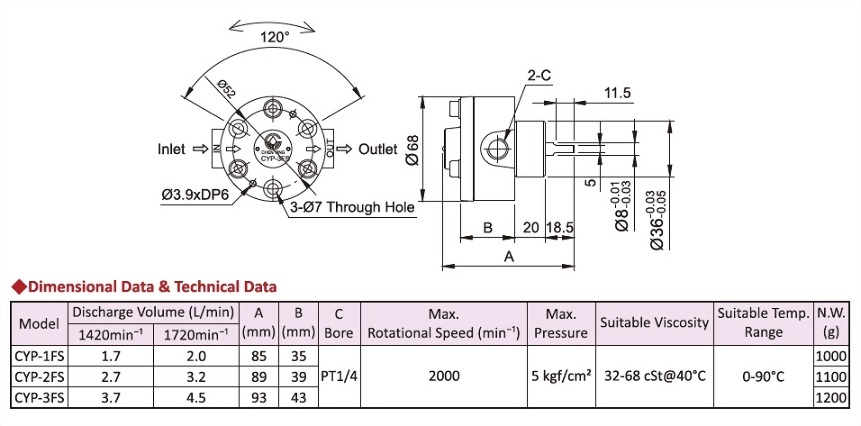

Reversible Oil Pump Dimensional Drawing


◆ Dimensional Data & Technical Data

Model Discharge Volume (L/min) A(mm) B(mm) C Bore Max. Rotational Speed(min-1) Max. Pressure Suitable Viscosity Suitable Temp. Range N.W.(g)
1420min-1 1720min-1
CYP-1FS 1.7 2.0 85 35 PT1/4 2000 5kgf/cm² 32~68 cSt@40℃ 0~90℃ 1000
CYP-2FS 2.7 3.2 89 39 1100
CYP-3FS 3.7 4.5 93 43 1200
