Socket Pressure Switch

Please select the specifications you need.:

*Model
Remarks
◆Features:

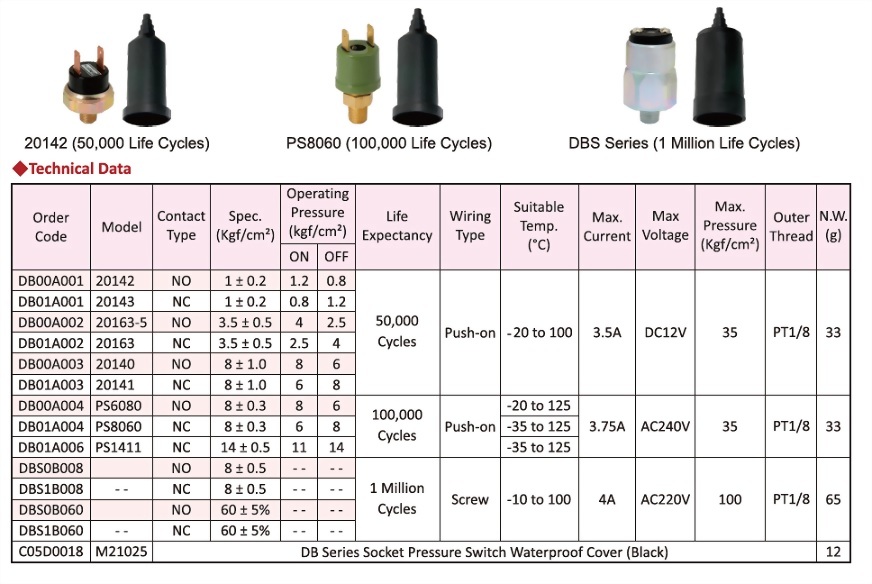

  1. 1.Socket Pressure Switches are used to monitor the pressure in centralized lubrication systems. There are many available models upon request.
  2. There are two types of contacts as NO and NC. NO contact means when the pressure reaches the setting, the contact remains open. In other words, when the pressure is normal, it continues sending signal. NC contact means when the pressure reaches the setting, the contact is close. When the pressure is normal, there is no signal delivered.
  3. There are two connection types: Push-On Type and Screw Type. The waterproof cap can be ordered for additional protection.
  4. The life cycle of DBS Type is one million cycles. It can be customized with different pressure on request.
