• Oil Rotary Union

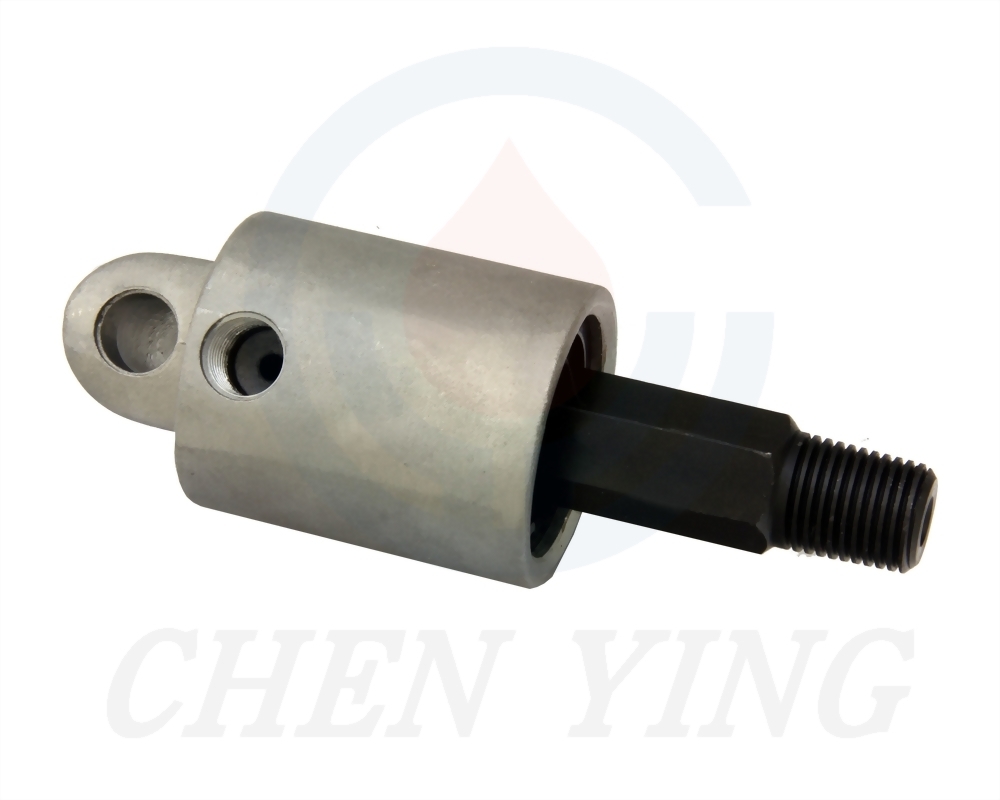

Oil Rotary Union

※ Please select the specifications you need.：

*Model
Remarks

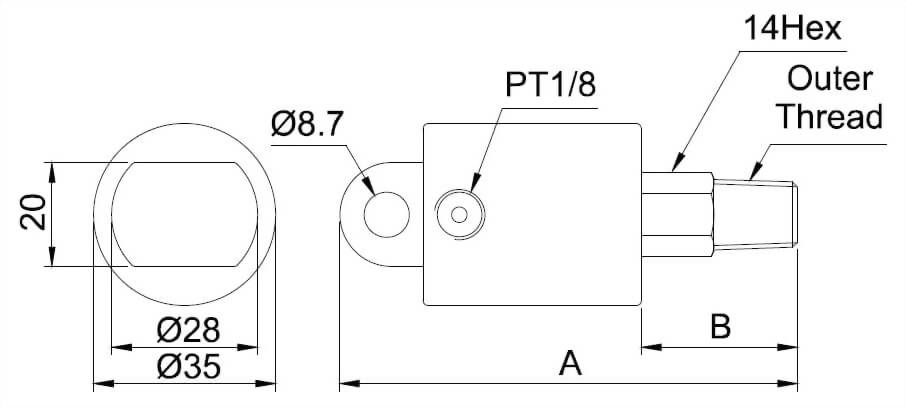

oil-rotary-union Dimensional Drawing

Model Outer Thread A(mm) B(mm) N.W.(g)
PWN-130 PT1/8 88 30 150
PWN-142 100 42 160
PWN-160 118 60 180
PWN-230 PT1/4 88 30 160
PWN-242 100 42 170
PWN-260 118 60 190
