T Type Volumetric Distributor (Standard Type & Quick Coupling Type)

1. T type volumetric distributor can deliver a precisely metered quantity of oil to each lubrication point.
2. T type volumetric distributor needs to work with a pressure-relief type oil lubricator and discharges oil during the interval time of the lubricator.
3. Each outlet of T type volumetric distributor has an indicator pin that enables the user to monitor the oil discharging function visually. It can optionally add a sensor switch to the indicator pin for an electronic signal.
4. The standard proximity switch is NC contact. It sends a signal when it does not detect the movement of the indicator pin. NO contact is available on request.
5. T type volumetric distributor with an outlet of discharging volume 0.5cc can add a sensor switch. The user can either set up NO contact, NC contact, or both upon need.
6. There are two types of outlet adapters available; one is compression bushing and sleeve (standard type), and another is quick coupling.
7. Recommend using quick coupling with an N12 nylon pipe. Please follow the instructions below to connect and disconnect a quick coupling.

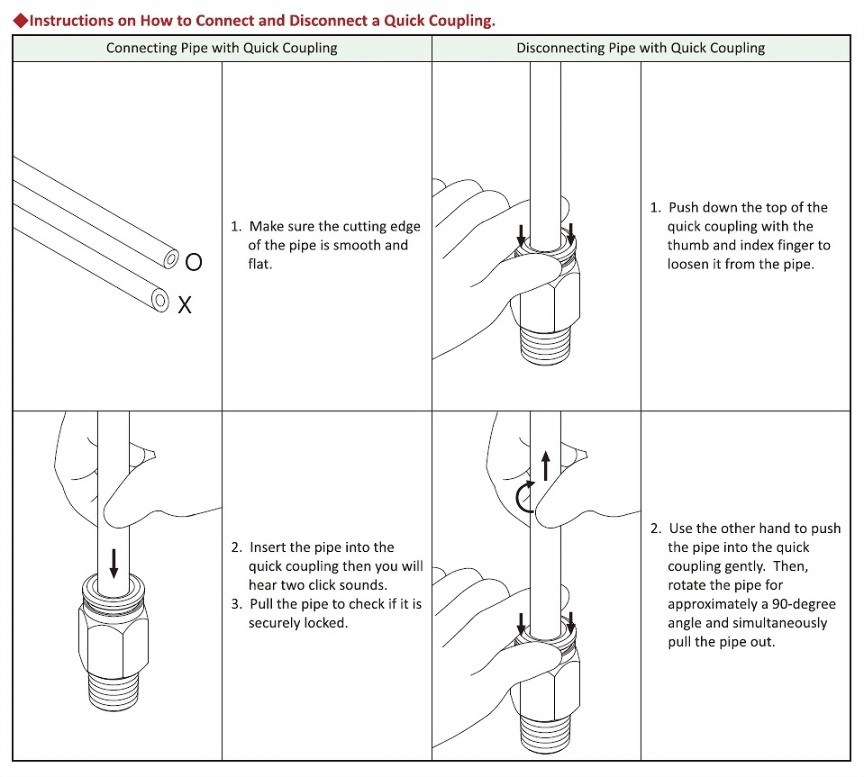

◆ Instructions on How to Connect and Disconnect a Quick Coupling.

Connecting Pipe witch Quick Coupling		Disconnecting Pipe with Quick Coupling
	1. Make sure the cutting edge of the pipe is smooth and flat.		1. Push down the top of the quick coupling with the thumb and index finger to loosen it from the pipe.
	2. Insert the pipe into the quick coupling then you will hear two click sounds.		2. Use the other hand to push the pipe into the quick coupling gently. Then,rotate the pipe for approximately a  90-degree angle and simultaneously pull the pipe out.
	3. Pull the pipe to check if it is securely locked.

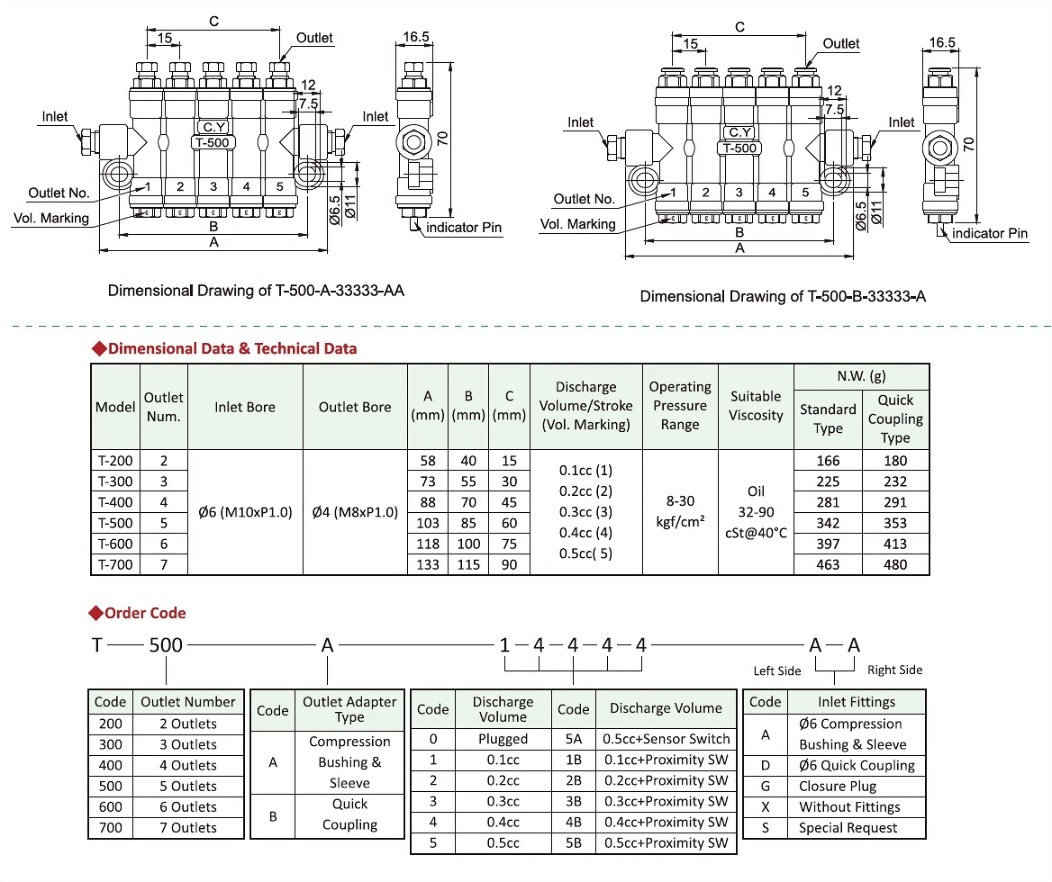

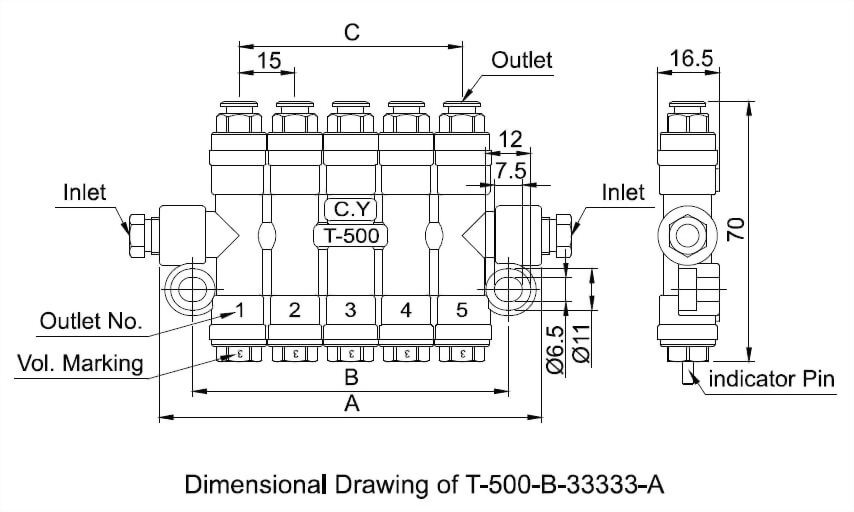

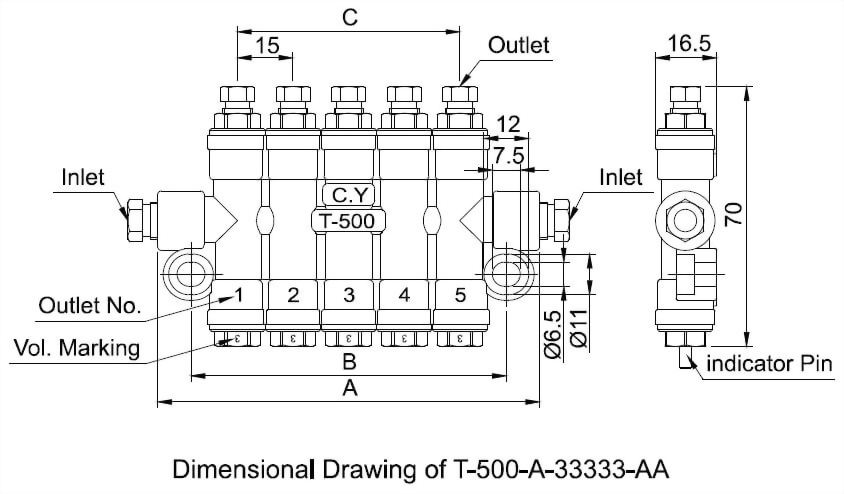

◆ Dimensional Data & Technical Data

◆ Order Code
