CAB Type Volumetric Distributor (Standard Type & Quick Coupling Type)
- Work with Pressure-Relief Lubricators
-
Suitable for Oil
- CAB type volumetric distributor can deliver a precisely metered quantity of oil to each lubrication point.
- CAB needs to work with a pressure-relief type oil lubricator and discharges oil during the operation time of the lubricator.
- There are two types of outlet adapters available; one is compression bushing and sleeve (standard type), and another is quick coupling.
- Recommend using quick coupling with an N12 nylon pipe. Please follow the instructions below to connect and disconnect a quick coupling.
◆ Instructions on How to Connect and Disconnect a Quick Coupling.
| Connecting Pipe witch Quick Coupling | Disconnecting Pipe with Quick Coupling | ||
|
1. Make sure the cutting edge of the pipe is smooth and flat. |
|
1. Push down the top of the quick coupling with the thumb and index finger to loosen it from the pipe. |
|
2. Insert the pipe into the quick coupling then you will hear two click sounds. |
|
2. Use the other hand to push the pipe into the quick coupling gently. Then,rotate the pipe for approximately a 90-degree angle and simultaneously pull the pipe out. |
| 3. Pull the pipe to check if it is securely locked. | |||

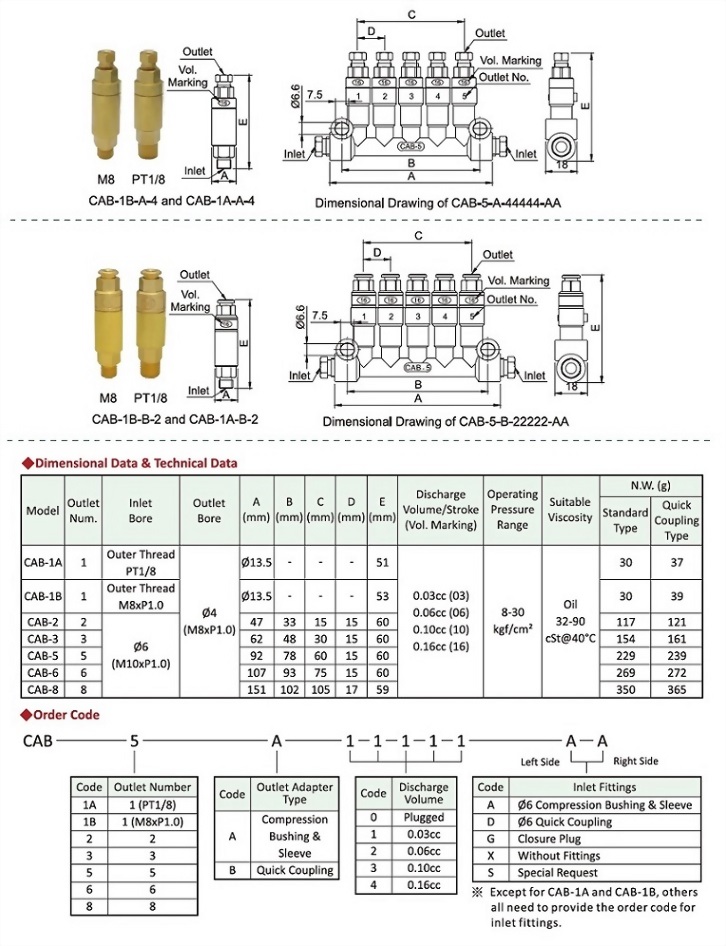

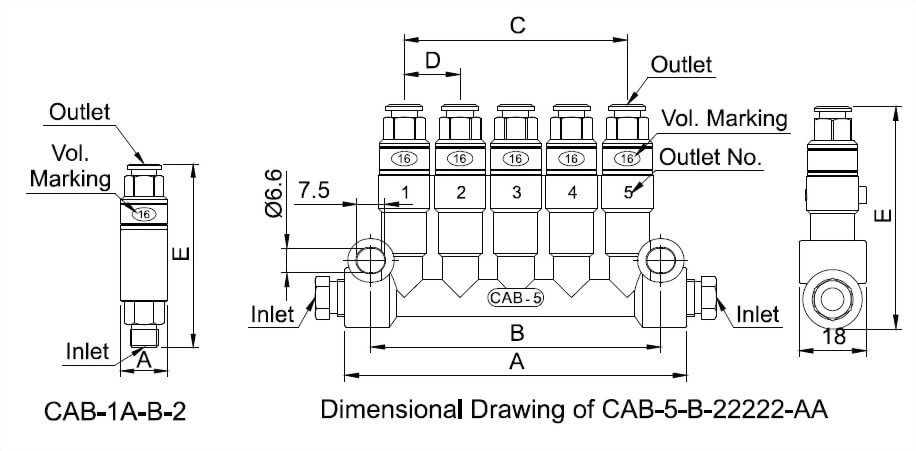

◆ Dimensional Data & Technical Data
0.03cc(03)
0.06cc(06)
0.10cc(10)
0.16cc(16)
Model
Outlet Num.
Inlet Bore
Outlet Bore
A(mm)
B(mm)
C(mm)
D(mm)
E(mm)
Discharge
Volume/Stroke(Vol. Marking)
Operating Pressure
Range
Suitable Viscosity
N.W.(g)
Standard Type
Quick Coupling Type

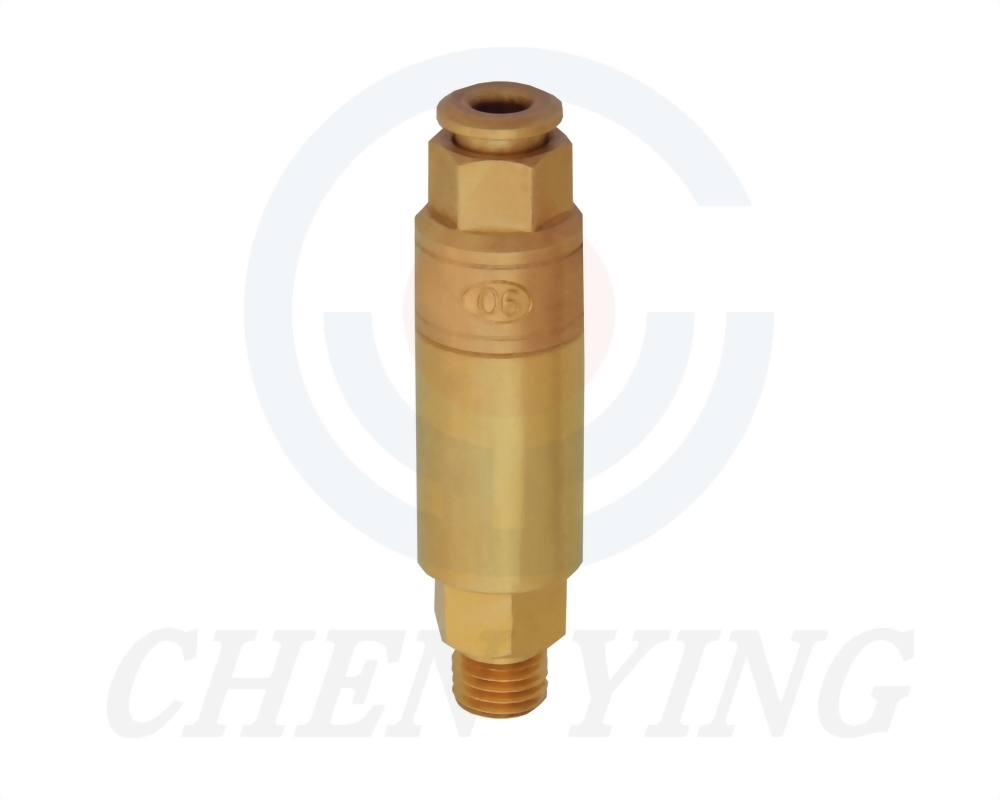

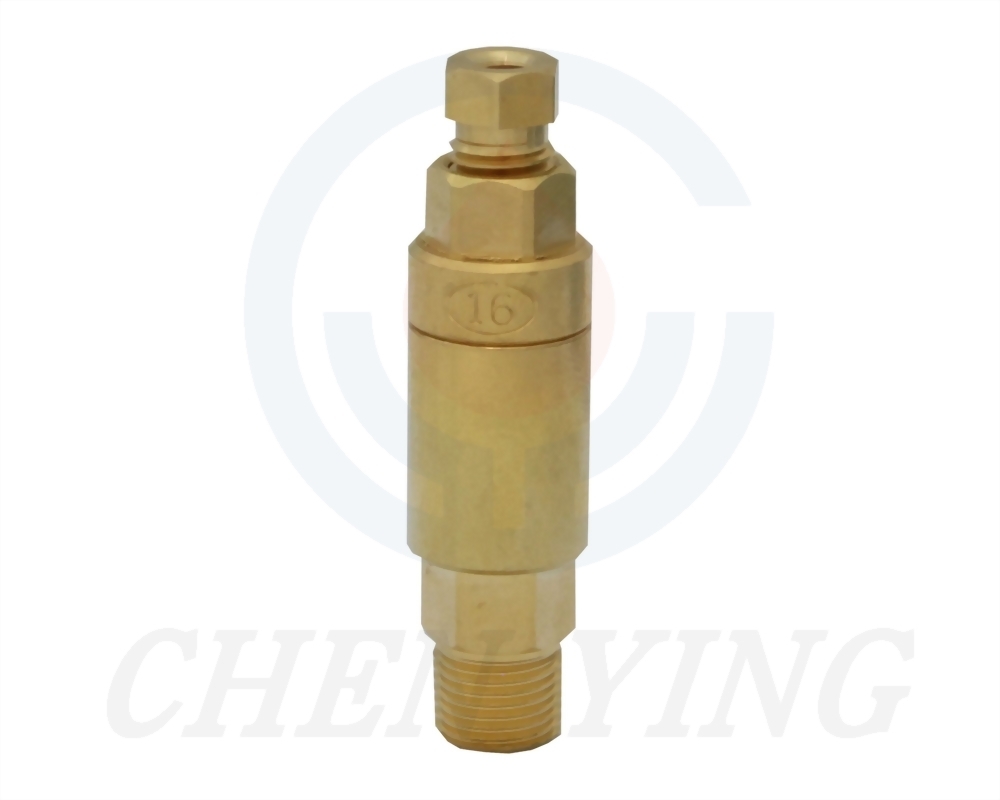

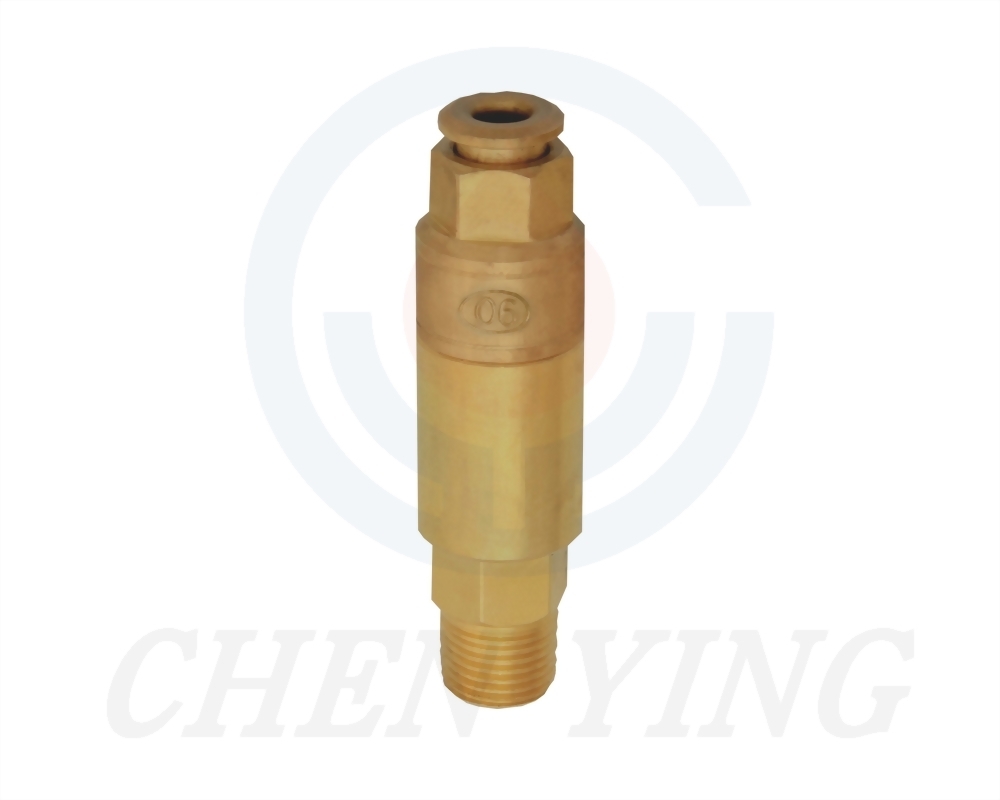

CAB-1A
1
Outer Thread PT1/8
Ø4(M8xP1.0)
Ø13.5
-
-
-
51
8~30kgf/cm²
Oil 32~90cSt@40℃
30
37

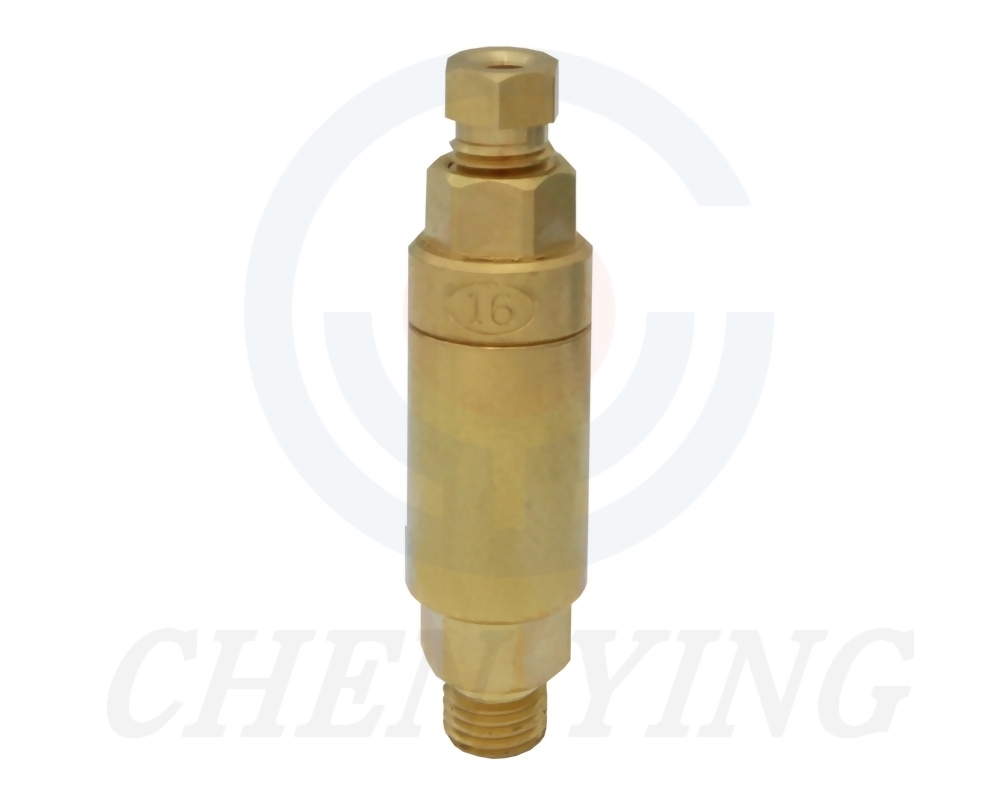

CAB-1B
1
Outer Thread M8xP1.0
Ø13.5
-
-
-
53
30
39

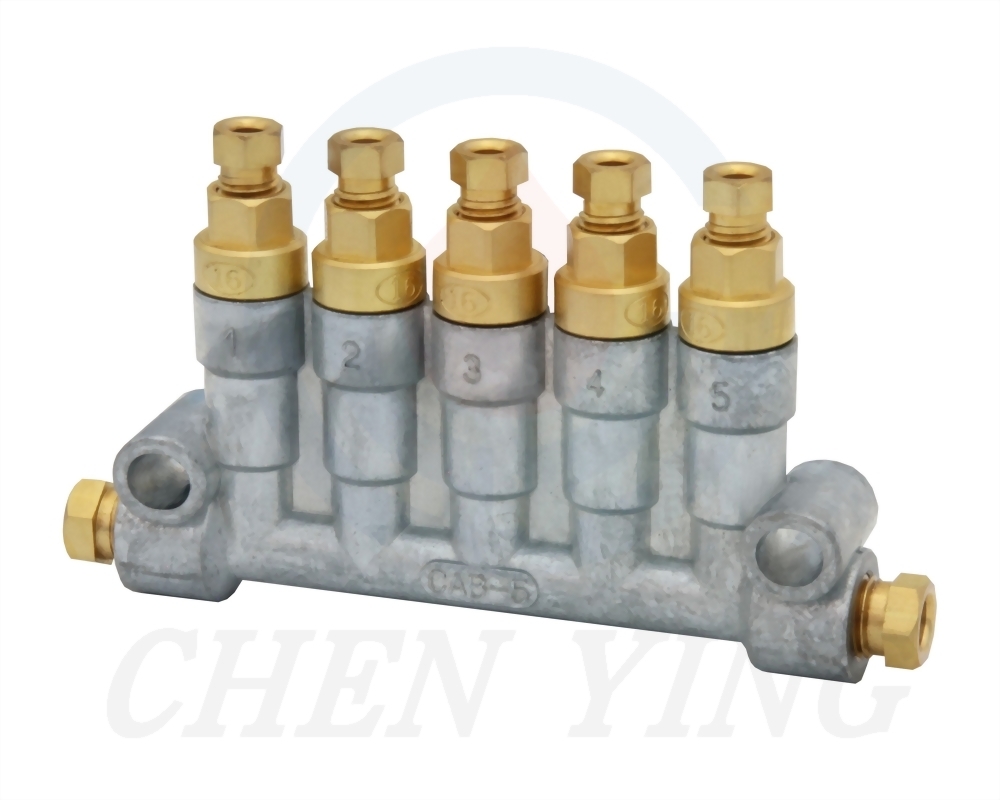

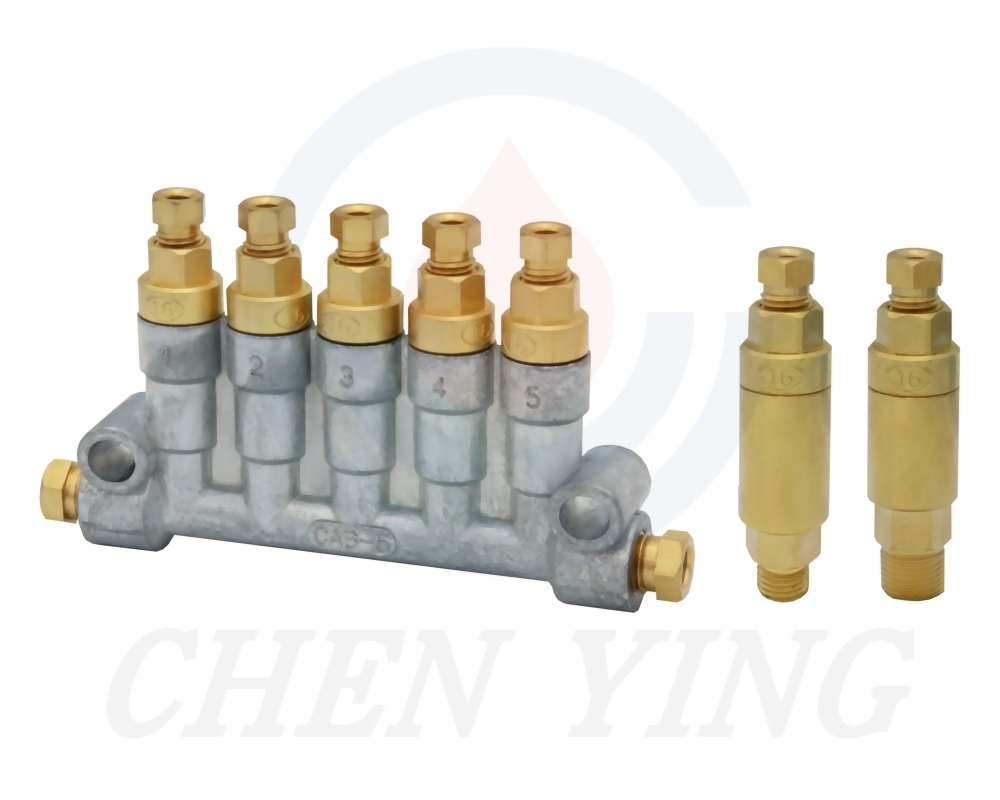

CAB-2
2
Ø6(M10xP1.0)
47
33
15
15
60
117
121
CAB-3
3
62
48
30
15
60
154
162

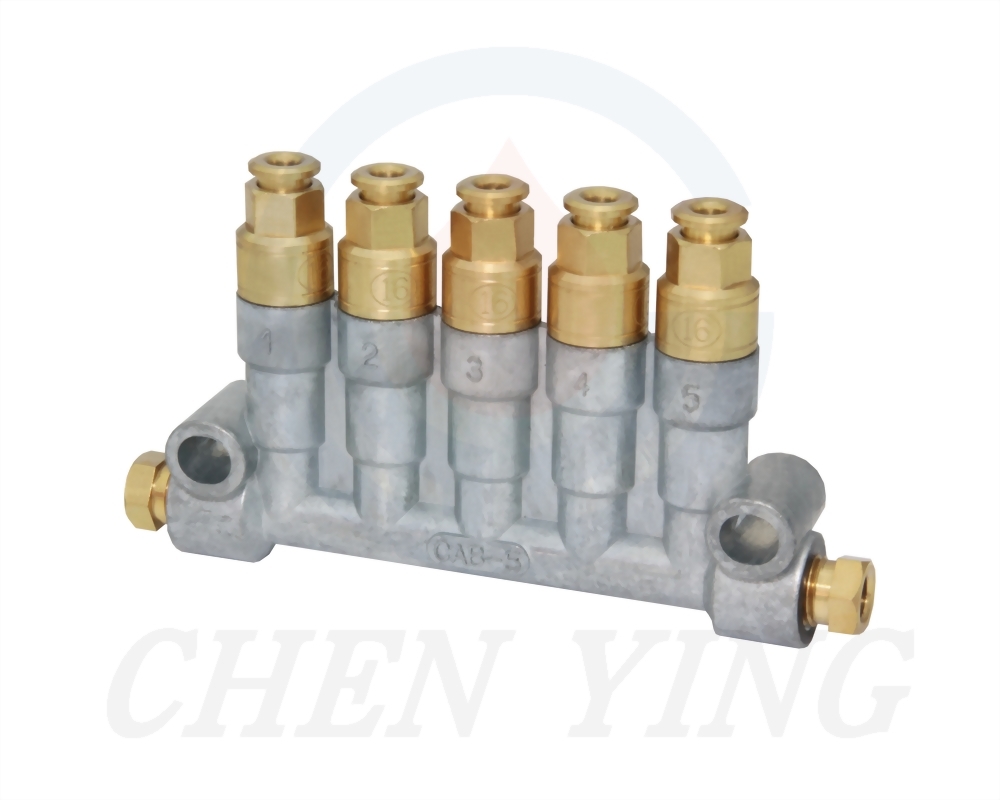

CAB-5
5
92
78
60
15
60
229
239
CAB-6
6
107
93
75
15
60
269
272
CAB-8
8
151
102
105
17
59
350
365
◆ Order Code
Model
Outlet Number
Outlet Adapter Type
Discharge Volume
Left Side Inlet Fitting
Right Side Inlet Fitting
CAB
5
A
1-1-1-1-1
A
A
1A
1(PT1/8)
A
Compression Bushing
& Sleeve
0
Plugged
A
Ø6 Compression
Bushing & Sleeve
A
Ø6 Compression
Bushing & Sleeve
1B
1(M8xP1.0)
B
Quick Coupling
1
0.03cc
D
Ø6 Quick Coupling
D
Ø6 Quick Coupling
2
2
2
0.06cc
G
Closure Plug
G
Closure Plug
3
3
3
0.10cc
X
Without Fittings
X
Without Fittings
5
5
4
0.16cc
S
Special Request
S
Special Request
6
6
8
8
※Except for CAB-1A and CAB-1B, others all need to provide the order code for inlet fittings.
