• GA-25 Gear Pump with Motor

GA-25 Gear Pump with Motor

※ Please select the specifications you need.：

*Model
*Voltage
Remarks
  1. GA-25 is compact and suitable for limited workspace.
  2. The gear pump of GA-25 is made of aluminum alloy and assembled with a 25W induction motor to provide stable output pressure, low operating noise, and long service life.
  3. The standard length of the pipe is 65mm, but it can be customized upon request.

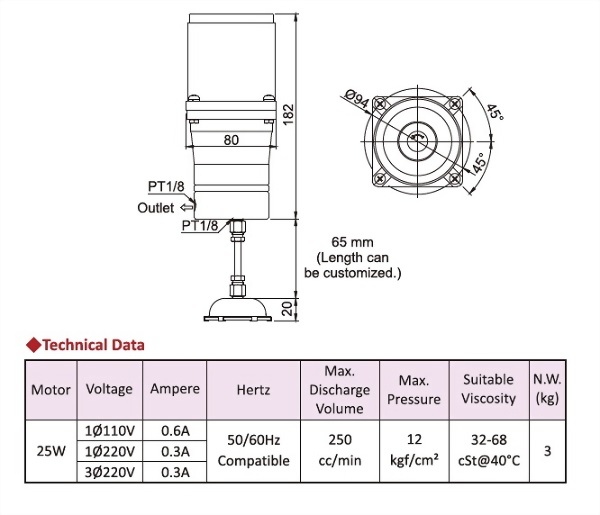

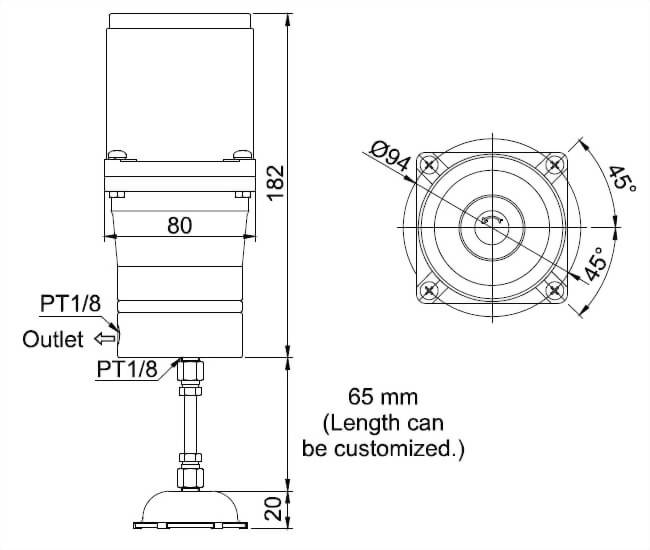

ga-25 Gear Pump with Motor Dimensional-Drawing


◆ Technical Data

Motor Voltage Ampere Hertz Max. Discharge Volume Max. Pressure Suitable Viscosity N.W.(kg)
25W 1Ø110V 0.6A 50/60Hz Compatible 250cc/min 12 kgf/cm2 32-68 cSt@40℃
 		3
1Ø220V 0.3A
3Ø220V 0.3A


◆ Order Code

Model Voltage
GA-25 C
A 1Ø110V
C 1Ø220V
M 3Ø220V
