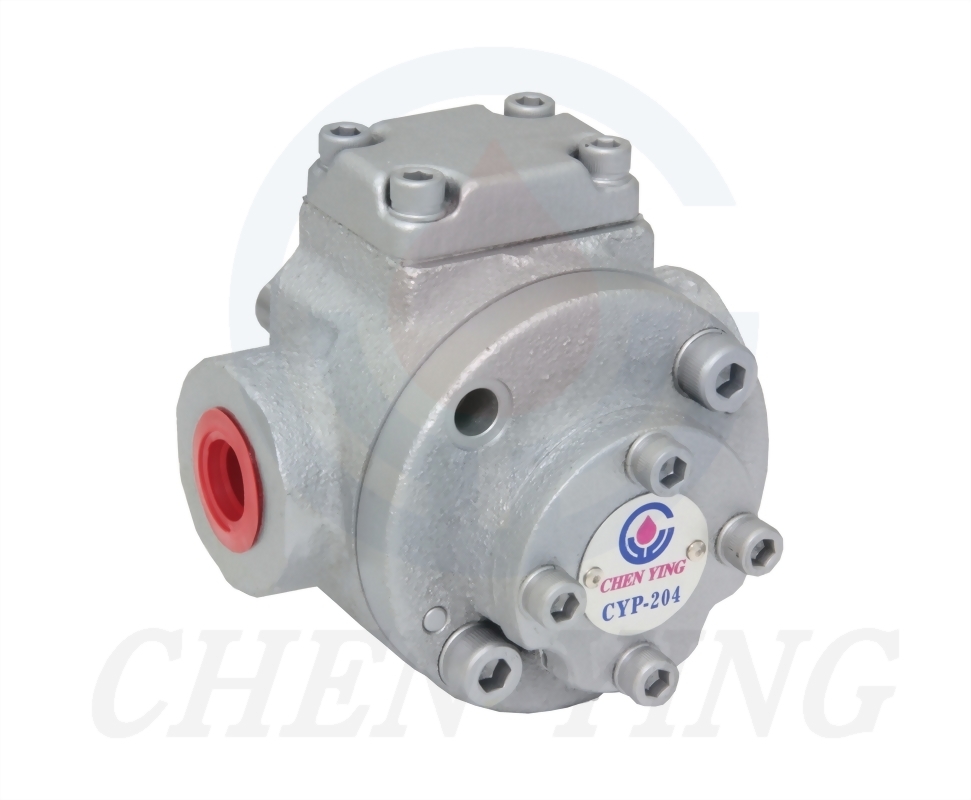

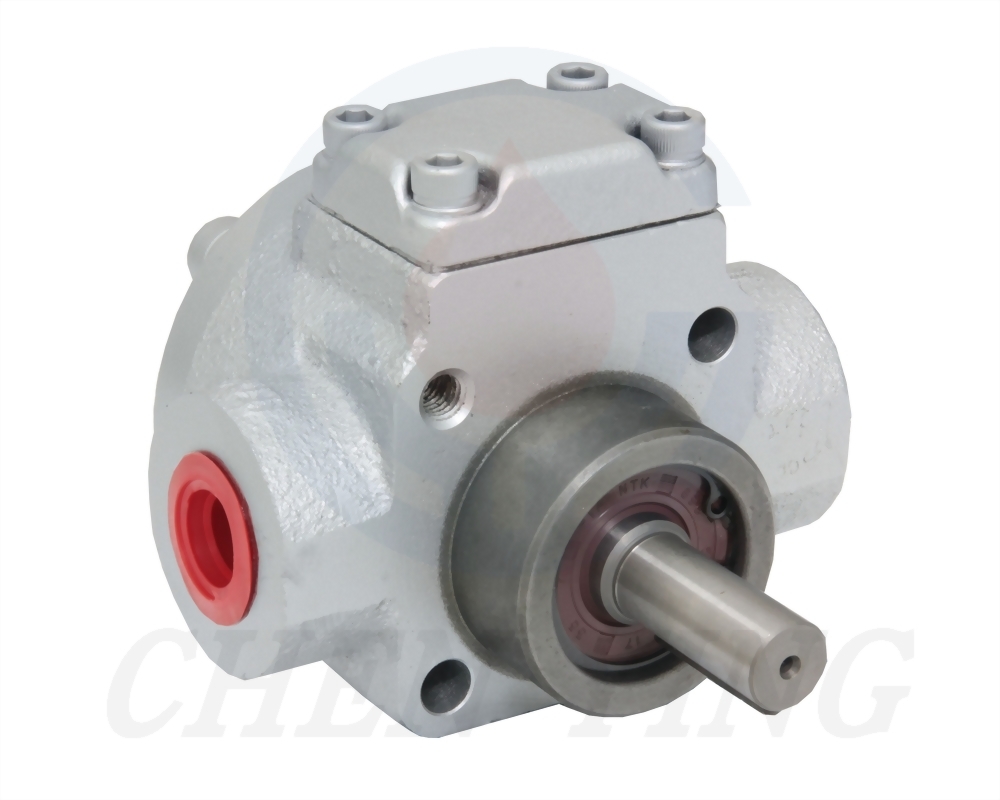

Heavy Oil Pump
- The discharge volume and the maximum pressure are much higher than the rotary oil pump.

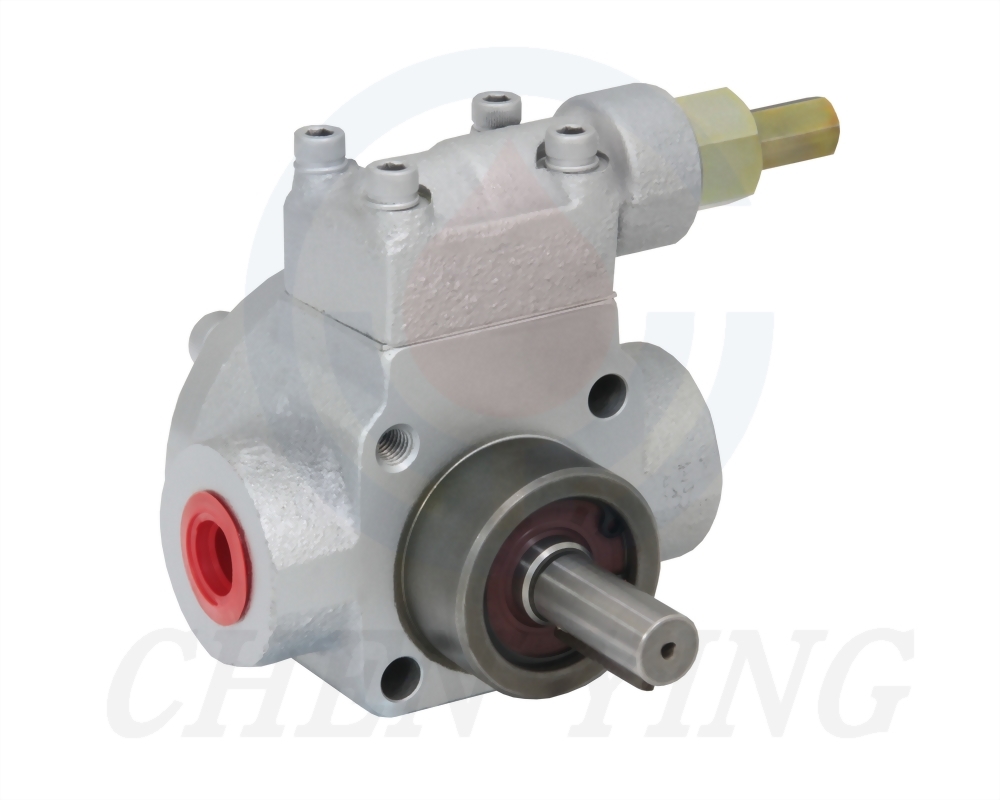

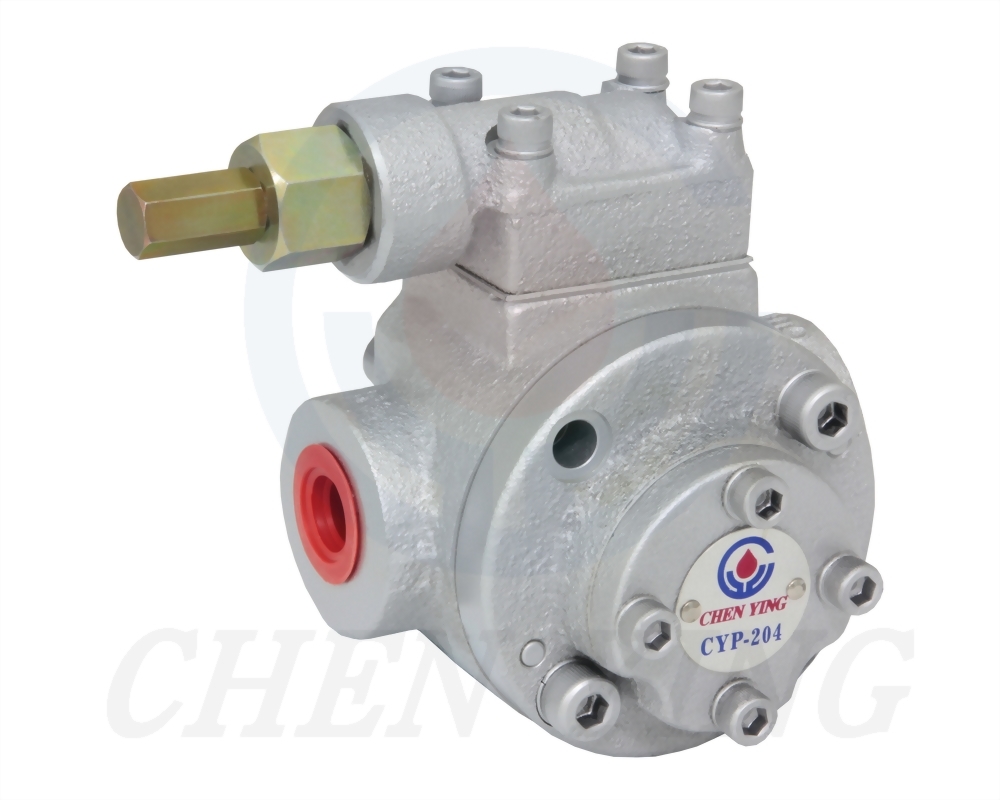

- Recommend adding a CYP-HA adjustable pressure valve to a heavy oil pump. The suitable range of pressure adjustment is 0 to 10kgf/cm2. The proper operating pressure of the heavy oil pump should be under 10kgf/cm2 to prevent damage due to high pressure.
- Recommend working with a 1/2HP and above motor for lubricating and cooling purposes. It can be applied widely to various industrial machines, such as machine tools, screw machines, special-purpose machines, gearboxes, and medium to large machines.
- If you need the heavy oil pump to be assembled with a motor, please refer to the catalogue of PMO-0 and provide us with the order code.
◆ Dimensional Data & Technical Data
Model
Discharge Volume (L/min)
A(mm)
B Bore
Applicable Rotational Speed(min-1)
Max. Pressure(kgf/cm²)
Suitable Viscosity
N.W.(kg)
Suitable PMO-0 Motors
(Minimun Horsepower)
1420min-1
1720min-1
W/CYP-HA
W/O CYP-HA
CYP-204
7.5
9.0
143
PT1/2
450~2000
20
32~220 cSt@40℃
3.2
1/2HP
1HP
CYP-206
11.3
13.5
148
PT3/4
3.3
1/2HP
1HP
CYP-208
15.3
18.5
153
PT3/4
3.5
1/2HP
1HP
CYP-210
19.0
23.0
158
PT3/4
3.7
1/2HP
2HP
CYP-212-1
21.9
26.5
163
PT3/4
3.9
1HP
2HP
CYP-212-2
21.9
26.5
163
PT1
3.9
1HP
2HP
CYP-216
29.3
35.5
173
PT1
4.3
1HP
2HP
CYP-220
34.3
41.5
183
PT1
4.6
2HP
--
※ IF you need to add an adjustable pressure valve to a heavy oil pump, please add HA after the model number when you place an order. For example, CYP-216-HA stands for one set of CYP-216 assembled with CYP-HA.
※ After adding the adjustable pressure valve, the net weight increases by 322g.
※ Heavy oil pump can add a holder on request. The fixed hole distance is 84x38mm, and the height is 134mm.
