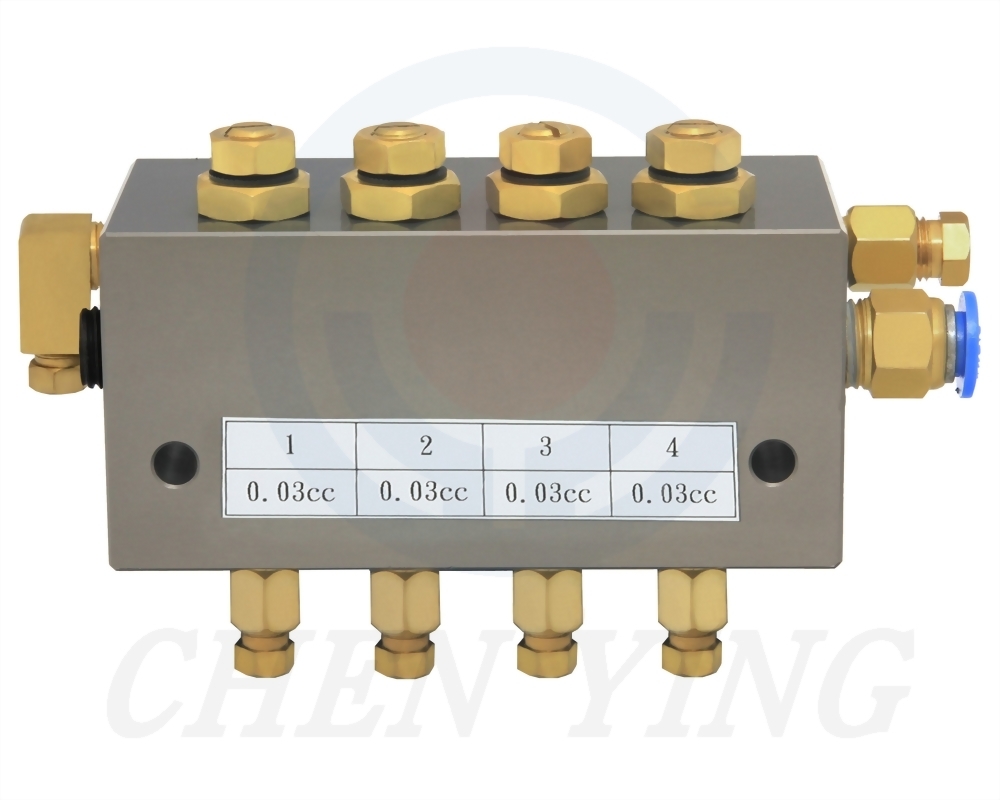

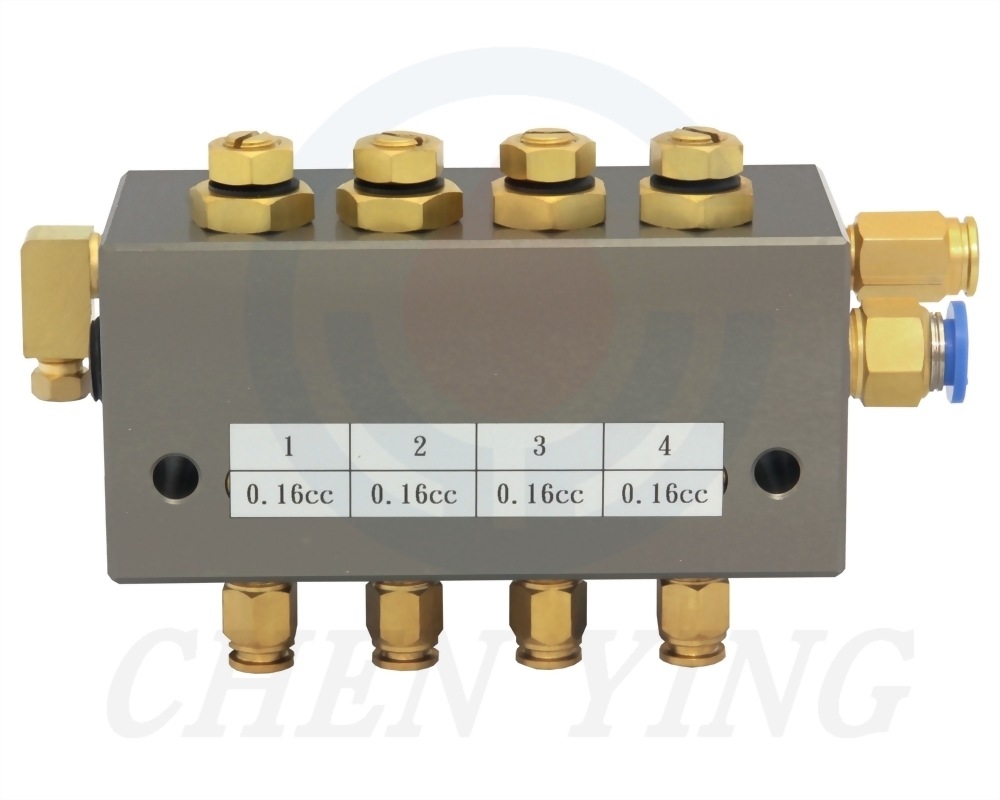

OC Type Oil-Air Volumetric Distributor (Standard Type & Quick Coupling Type)

1. OC volumetric distributor can deliver a precisely metered quantity of oil to each lubrication point.
2. OC has to work with a pressure-relief type oil lubricator and discharge oil during the operation time of the lubricator.
3. OC mixes a metered quantity of oil with an air stream to form an oil-air mixture, which can spray to the lubrication points evenly and save oil consumption.
4. The air volume of OC is adjustable so that the user can adjust the air volume for each outlet to have even air for different pipe lengths.
5. OC is suitable for cutting machines for micro lubrication and cooling effects. For example, POA  lubricator with OC can apply in lubricating a spindle with a speed between 15,000min^-1 to 20,000 min^-1.
6. There are two adapter options for inlets and outlets of OC: (1) compression bushing and sleeve type; (2) quick coupling type.
7. Recommend using quick coupling with an N12 nylon pipe. Please follow the instructions below to connect and disconnect a quick coupling.

◆ Instructions on How to Connect and Disconnect a Quick Coupling.

Connecting Pipe witch Quick Coupling		Disconnecting Pipe with Quick Coupling
	1. Make sure the cutting edge of the pipe is smooth and flat.		1. Push down the top of the quick coupling with the thumb and index finger to loosen it from the pipe.
	2. Insert the pipe into the quick coupling then you will hear two click sounds.		2. Use the other hand to push the pipe into the quick coupling gently. Then,rotate the pipe for approximately a  90-degree angle and simultaneously pull the pipe out.
	3. Pull the pipe to check if it is securely locked.

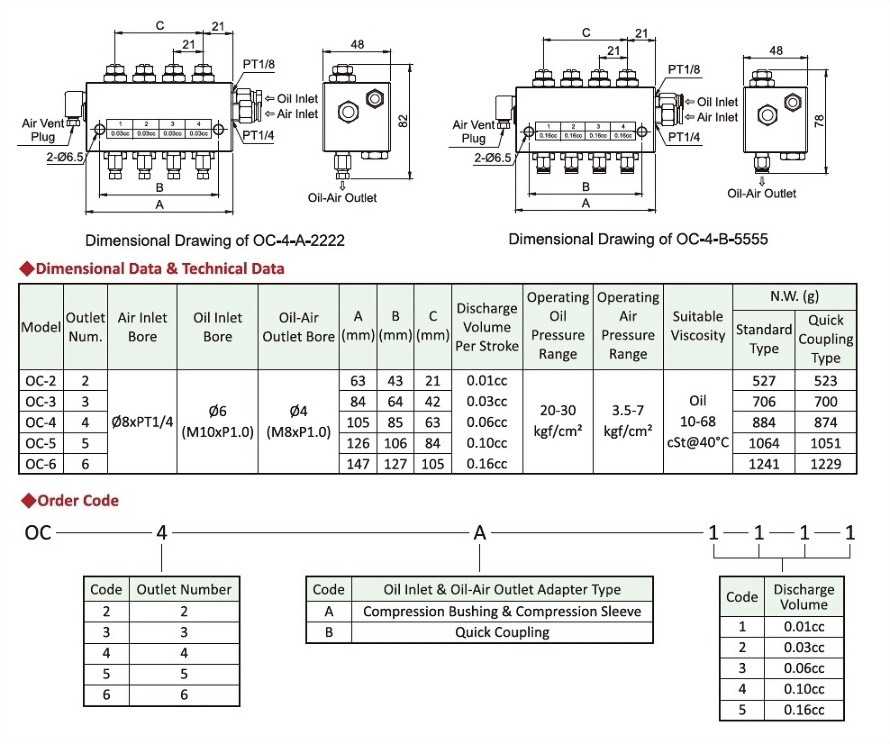

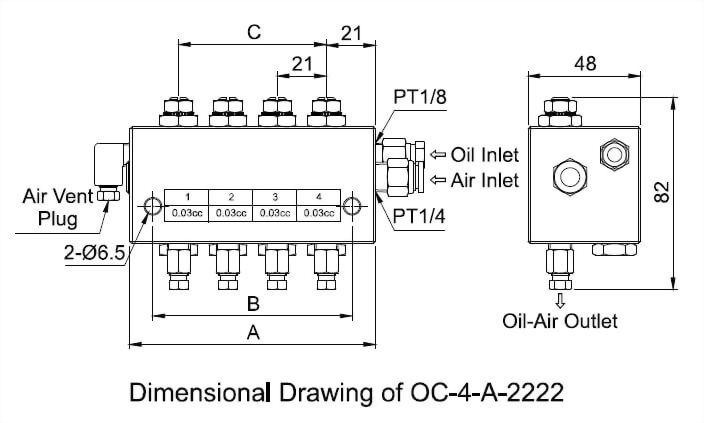

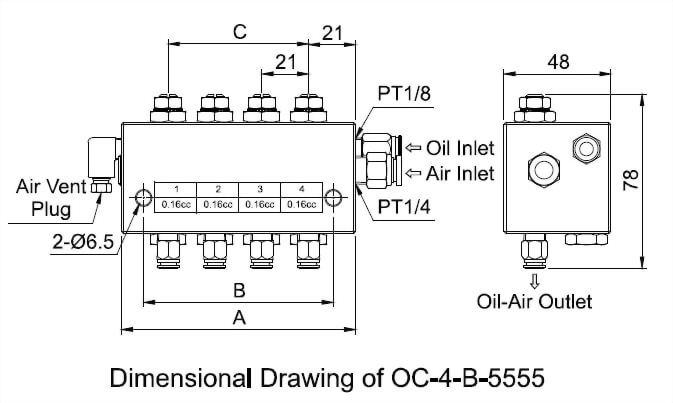

◆ Dimensional Data & Technical Data

◆ Order Code

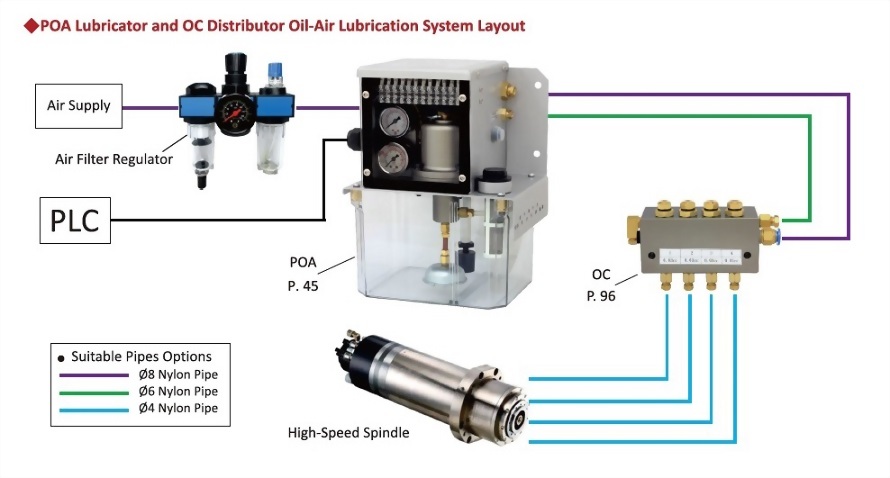

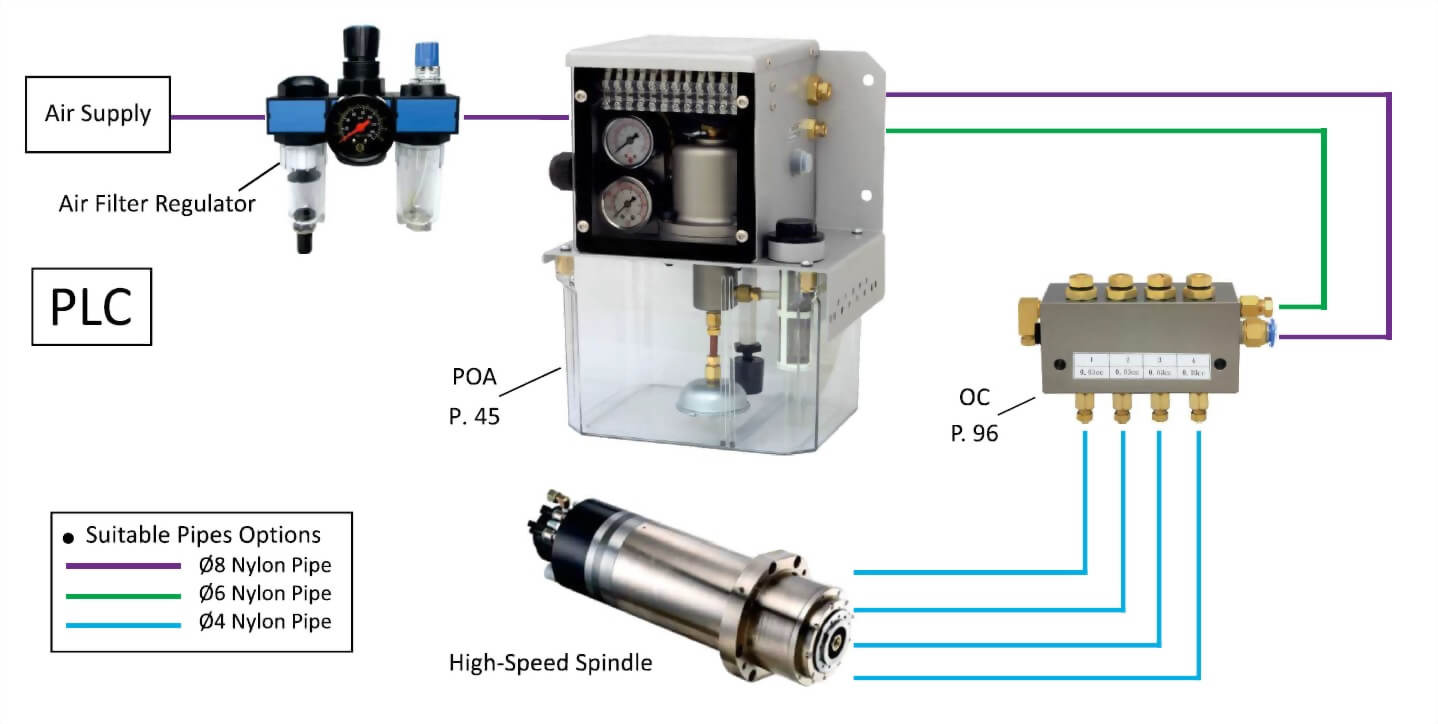

◆ POA Lubricator and OC Distributor Oil-Air Lubrication System Layout
