POA Oil-Air Type Pneumatic Lubricator

※ Please select the specifications you need.：
*Model
*Tank Capacity (Material)
*Voltage
Special Request
Remarks

Q'ty :

The operation and interval time of POA are controlled by PLC.
POA is actuated by pneumatic and controlled by a solenoid valve, which could be an ON/OFF switch. The input pneumatic pressure determines the output pressure. Oil discharges during operation.
Recommend using input pneumatic pressure of 3.5~7 kgf/cm² and setting up a solenoid valve's ON/OFF time of more than 5 seconds for discharging oil.
POA has a feed-oil button which can be used for manual oil feeding.

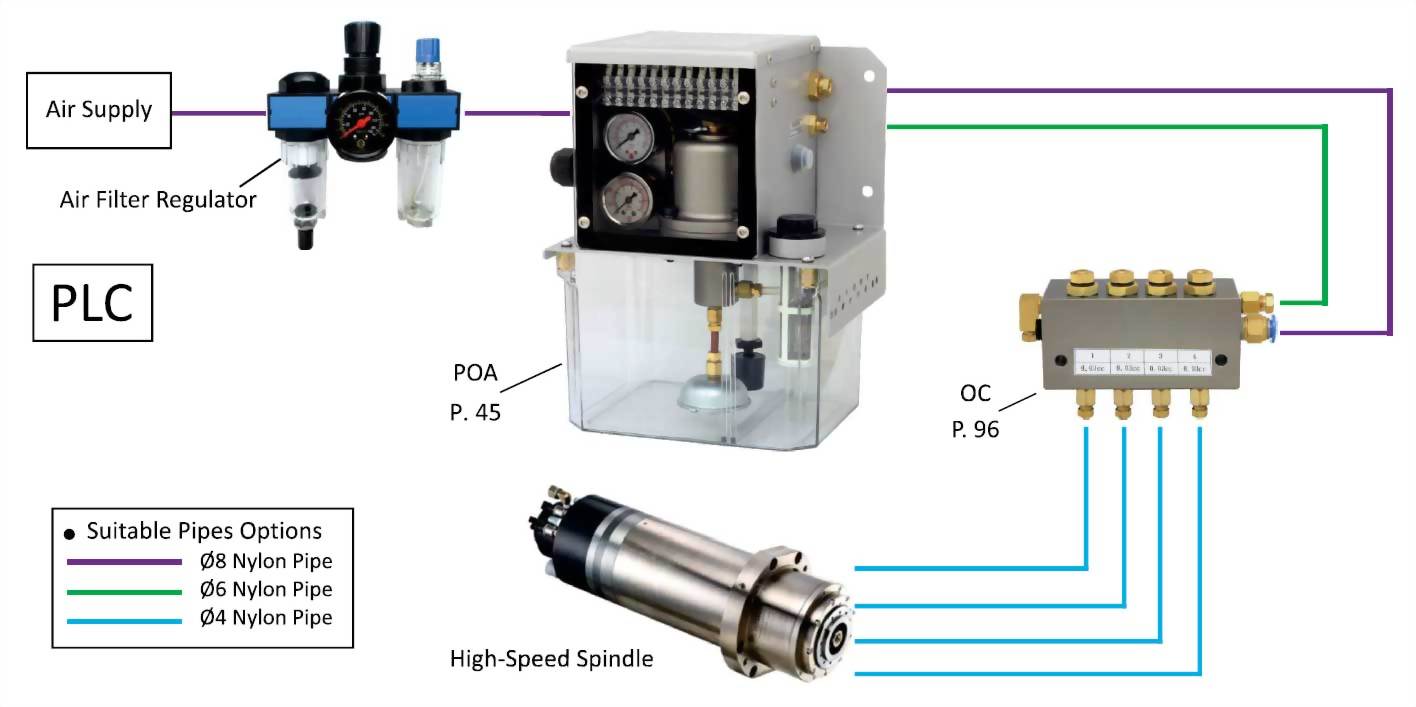

Recommend working with OC type oil-air volume distributors to deliver the metered quantity of oil-air mixture to lubrication points.
POA has two pressure gauges that enable the user to check the input pneumatic and output operating pressure easily.
POA has a NC contact float switch that detects the oil level automatically and sends signals when the oil level is low.
POA has three NC Contact socket pressure switches, and the specifications are as follows.(1) High Oil-Pressure Switch sets 20 kgf/cm² to detect the operating pressure.(2) Low Oil-Pressure Switch sets 1 kgf/cm² to detect the pressure-relief function.(3) Air-Pressure Switch sets 3.5 kgf/cm² to detect the pneumatic pressure.

◆ Dimensional Data

Tank Capacity	Tank Material	Length (mm)	Width (mm)	Height (mm)	Fixed Hole Distance (mm)	N.W. (kg)
3L	Resin	228	164	290	90x190	5.50

◆ Technical Data

Voltage	AC110V, AC220V, DC12V, DC24V
Pneumatic Pressure (kgf/c㎡)	3.5	4.0	4.5	5.0	5.5	6.0	6.5	7.0
Operating Pressure (kgf/c㎡)	26	30	34	38	41	45	49	53
Discharge Volume	5cc/stroke
Air Inlet	PT3/4
Air Outlet	Ø8
Oil Outlet	Ø6
Float Switch	NC Contact (NO Contact on request)
Pressure Switch	NC Contact (NO Contact on request)
Suitable Viscosity	Oil, 10-68 cSt@40^oC

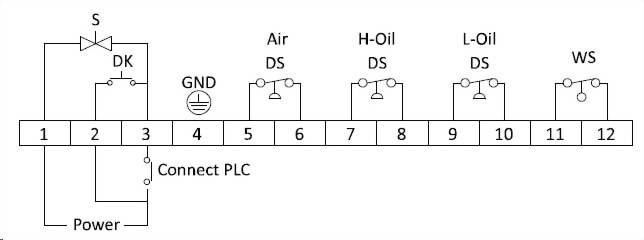

◆ Wiring Diagram

GND = Ground
DS      = Pressure Switch
WS     = Float Switch
DK     = Feed-Oil Button
S        = Solenoid Valve

◆ Order Code

Model	Tank Capacity (Material)		Volage		Special Request
POA	03		C		※
	03	3L (Resin)	A	AC 110V	AO	NO Contact Air Pressure Switch
			C	AC 220V	HO	NO Contact High Oil-Pressure Switch
			J	DC 12V	LO	NO Contact Low Oil-Pressure Switch
			K	DC 24V	OC	Add an OC Oil-Air Volume Distributor (Please refer to OC catalog and provide order code.)
					SO	NO Contact Float Switch

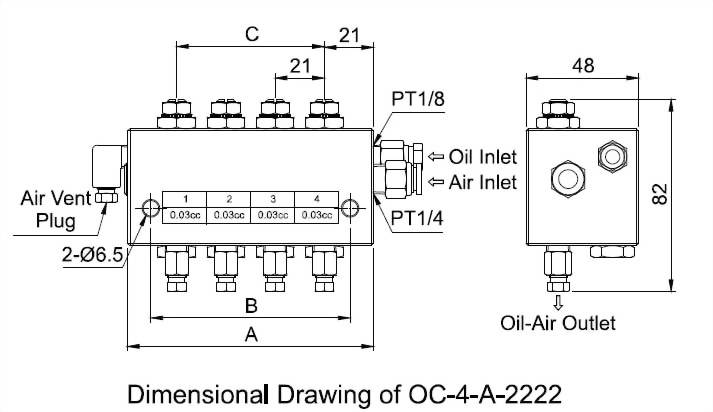

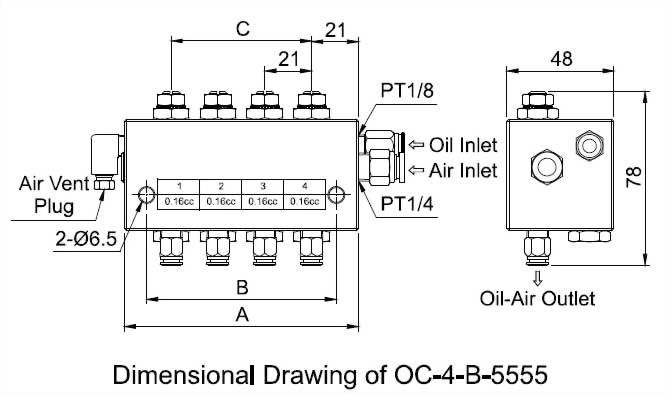

◆The dimensional and technical data of OC Type Oil-Air Volume Distributor is as described below.

◆ Dimensional Data & Technical Data

Model	Outlet Num.	Air Inlet Bore	Oil Inlet Bore	Oil-Air Outlet Bore	A(mm)	B(mm)	C(mm)	Discharge Volume Per Stroke	Operating Oil Pressure Range	Operating Air Pressure Range	Suitable Viscosity	N.W.(g)
												Standard Type	Quick Coupling Type
OC-2	2	Ø8xPT1/4	Ø6(M10xP1.0)	Ø4(M8xP1.0)	63	43	21	0.01cc 0.03cc 0.06cc 0.10cc 0.16cc	20-30kgf/cm2	3.5-7kgf/cm2	10-68 cSt@40	527	523
OC-3	3				84	64	42					706	700
OC-4	4				105	85	63					884	874
OC-5	5				126	106	84					1064	1051
OC-6	6				147	127	105					1241	1229

◆ Order Code

Model	Outlet Number		Oil lnlet & Oil-Ail Outlet Adapter Type		Discharge Volume
OC	4		A		1-1-1-1
	2	2	A	Compression Bushing & Compression Sleeve	1	0.01cc
	3	3	B	Quick Coupling	2	0.03cc
	4	4			3	0.06cc
	5	5			4	0.10cc
	6	6			5	0.16cc
