• OQ Spray Gun

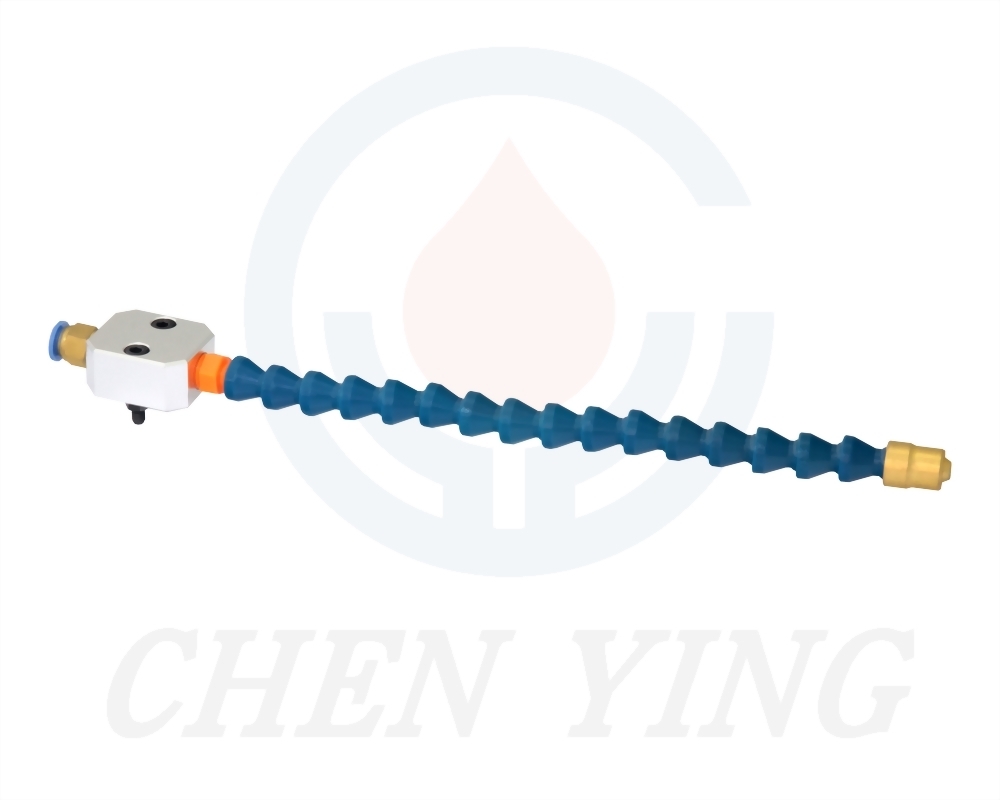

OQ Type Spray Gun (Pipe-in-Pipe Single-Nozzle Type with Adjustable Coolant Hose)

※ Please select the specifications you need.：

*Model
Special Request
Remarks
  1. The oil and air are mixed in the nozzle of the OQ spray gun right before spraying to the lubrication point that creates the superior oil-air mixture.
  2. OQ is suitable for machines that require non-fixed lubrication points, such as milling machines.
  3. OQ spray gun can add a magnetic base that can attach to any magnetic metal surface and relocate quickly.
  4. The standard length of the adjustable coolant hose is 16 segments. The length can be customized upon request.
  5. OQ's oil or air inlets must be assembled with ψ4xψ8 pipe-in-pipe, and only work with a POM-type lubricator with an oil outlet bore ψ8.
  6. The net weight of OQ spray gun is 138g per set.

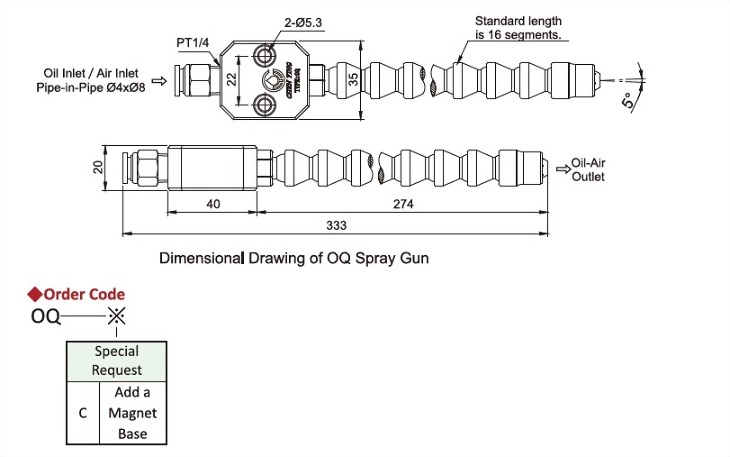

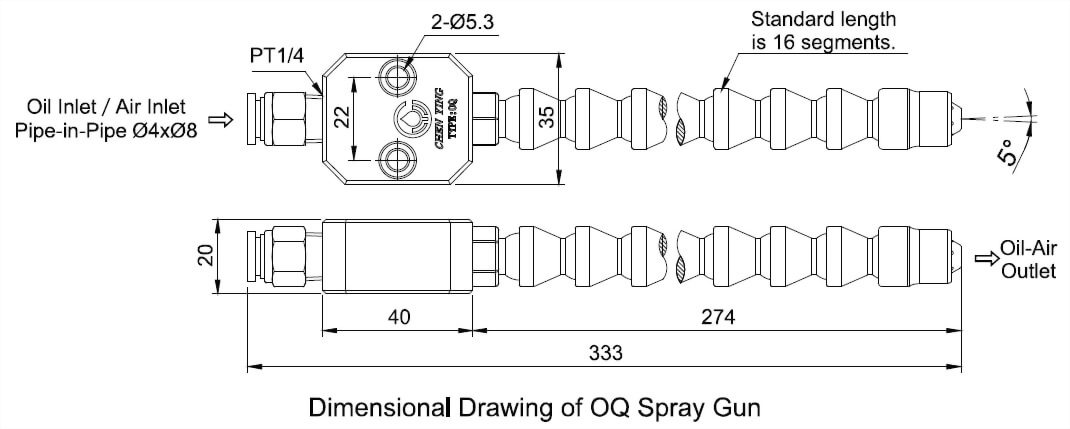

OQ Type,Dimensional Drawing,Order Code
