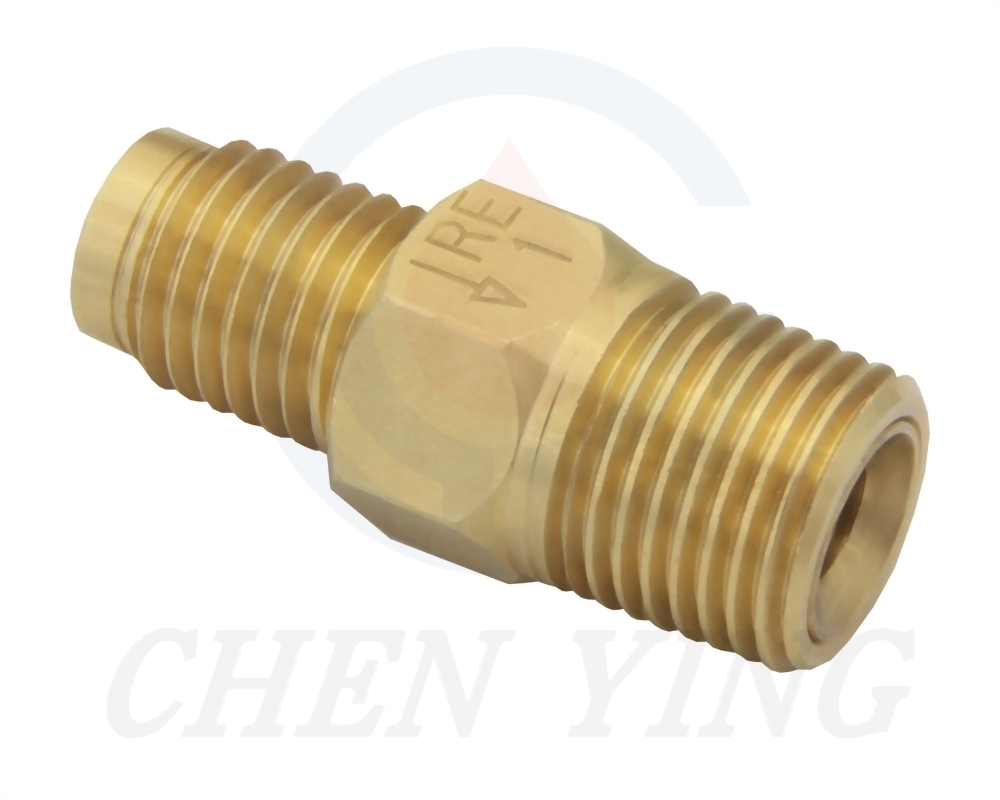

RE Oil Meter Adapters (M8xPT1/8)
- The oil meter adapter can deliver proper and exact volume to each lubrication point by calculating the total discharge volume needed. Based on the above calculation result, select the suitable lubricator model to work together.
- The total oil consumption of the lubrication points per minute should be less than half of the discharge volume of the lubricator to prevent pressure loss.
- The main oil pipe should be 6mm or larger to keep the piping system pressurized.
- The flow rate of the oil meter adapter increases in an arithmetic series. (The flow rate with the flow code 00 is 1/3 of the flow code 0.)
- Oil meter adapter obtained the Taiwan Utility Patent No. M571928.
-
Forbid to add used oil or any volatile oil to avoid the accumulation of impurities inside the oil meter adapter, which may affect the flow of discharge volume or block the oil from flowing through the adapters.
 |
|
|
|

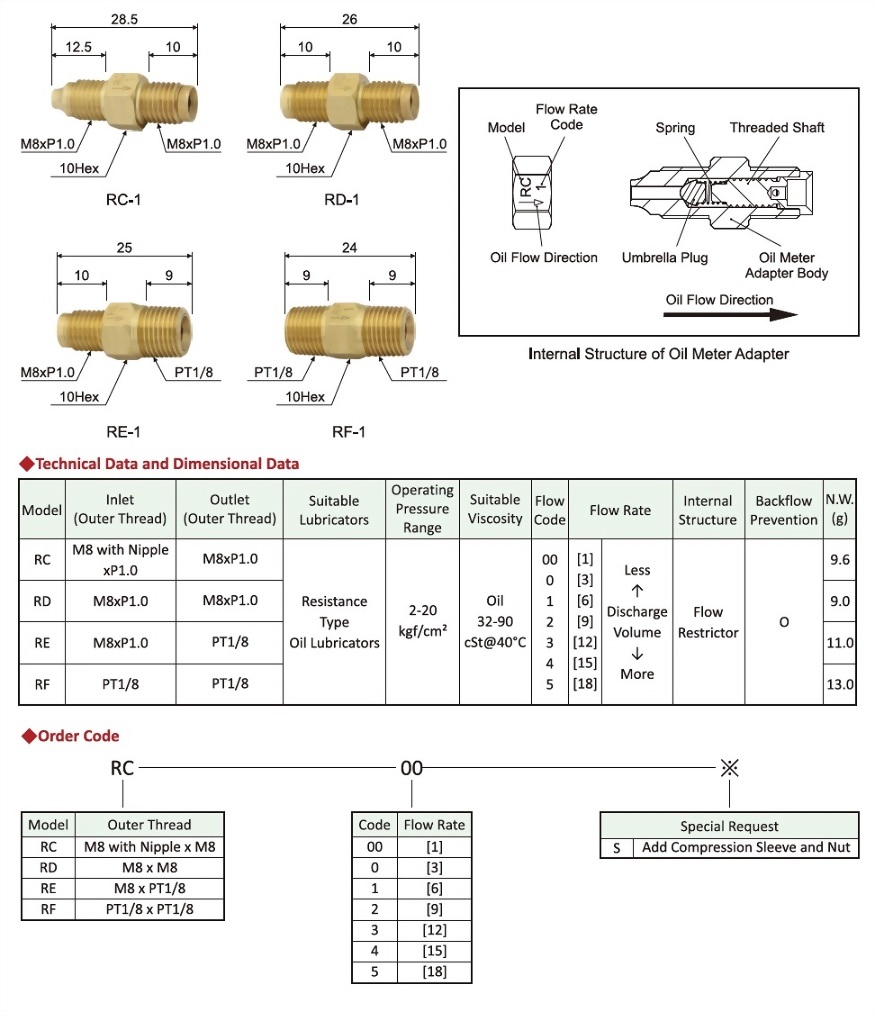

◆ Technical Data and Dimensional Data
| Model | Inlet (Outer Thread) | Outlet (Outer Thread) | Suitable Lubricators | Operating Pressure Range | Suitable Viscosity | Flow Code | Flow Rate | Internal Structure | Backflow Prevention | N.W.(g) | |
| RC | M8 with Nipple xP1.0 | M8xP1.0 | Resistance Type Oil Lubricators | 2~20kgf/cm2 | 32~90 cSt@40℃ |
00
0
1
2
3
4
5
|
〔1〕
〔3〕
〔6〕
〔9〕
〔12〕
〔15〕
〔18〕
|
Less
↑
Discharge Volume
↓
More
|
Flow Restrictor | ○ | 9.6 |
| RD | M8xP1.0 | M8xP1.0 | 9.0 | ||||||||
| RE | M8xP1.0 | PT1/8 | 11.0 | ||||||||
| RF | PT1/8 | PT1/8 | 13.0 | ||||||||
◆ Order Code
| Model (Outer Thread) | Flow Rate | Special Request | ||
| RC (M8 with Nipple x M8) | 00 | ※ | ||
| RD (M8 x M8) | 00 | 〔1〕 | S | Add Compression Sleeve and Nut |
| RE (M8 x PT1/8) | 0 | 〔3〕 | ||
| RF (PT1/8 x PT1/8) | 1 | 〔6〕 | ||
| 2 | 〔9〕 | |||
| 3 | 〔12〕 | |||
| 4 | 〔15〕 | |||
| 5 | 〔18〕 | |||
