• 2-Way Junction A/B

2-Way Junction A 、2-Way Junction B

※ Please select the specifications you need.：

*Model
Special Request
Remarks

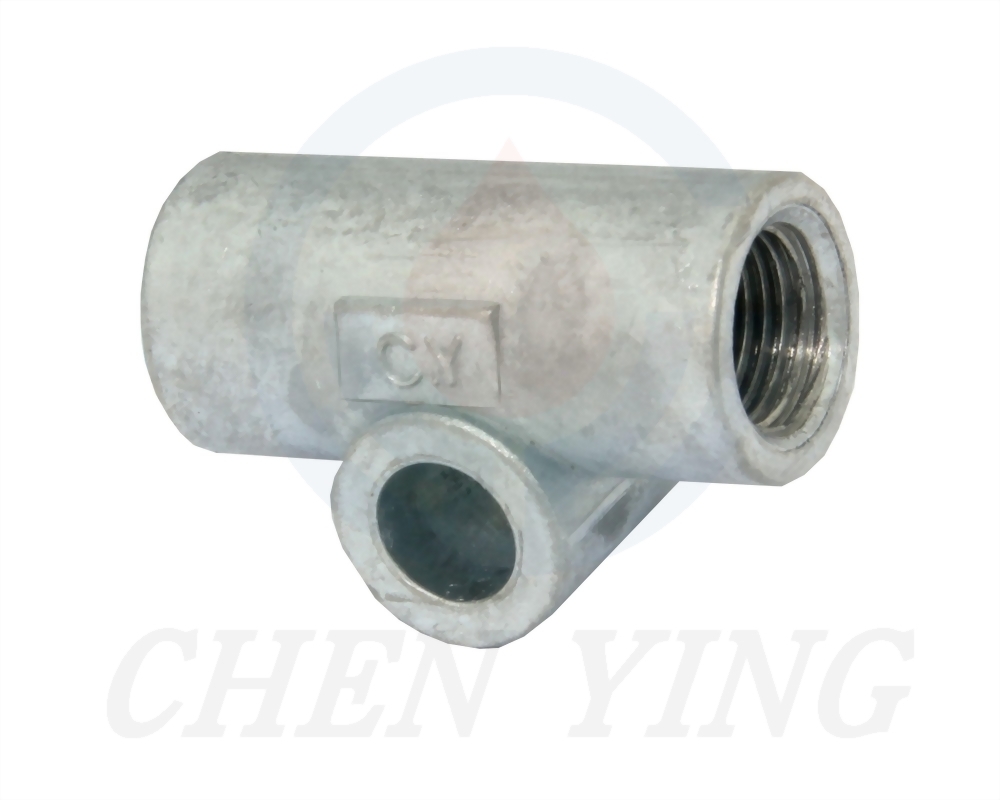

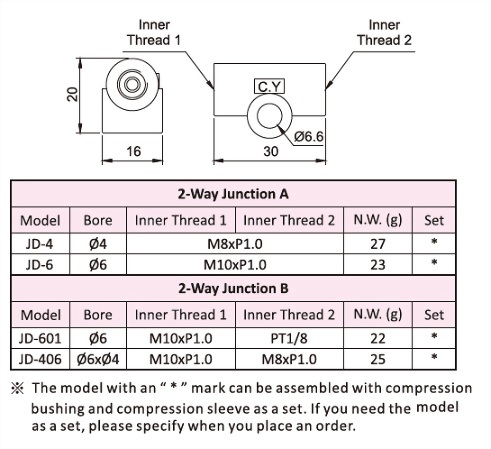

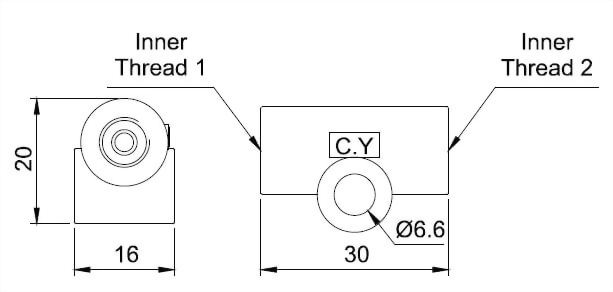

2-Way Junction A
Model Bore Inner Thread 1 Inner Thread 2 N.W.(g) Set
JD-4 Ø4 M8xP1.0 27 *
JD-6 Ø6 M10xP1.0 23 *
2-Way Junction B
Model Bore Inner Thread 1 Inner Thread 2 N.W.(g) Set
JD-601 Ø6 M10xP1.0 PT1/8 22 *
JD-406 Ø6xØ4 M10xP1.0 M8xP1.0 25 *

※The model with an “ * ” mark can be assembled with compression bushing and compression sleeve as a set. If you need the model as a set, please specify when you place an order.
