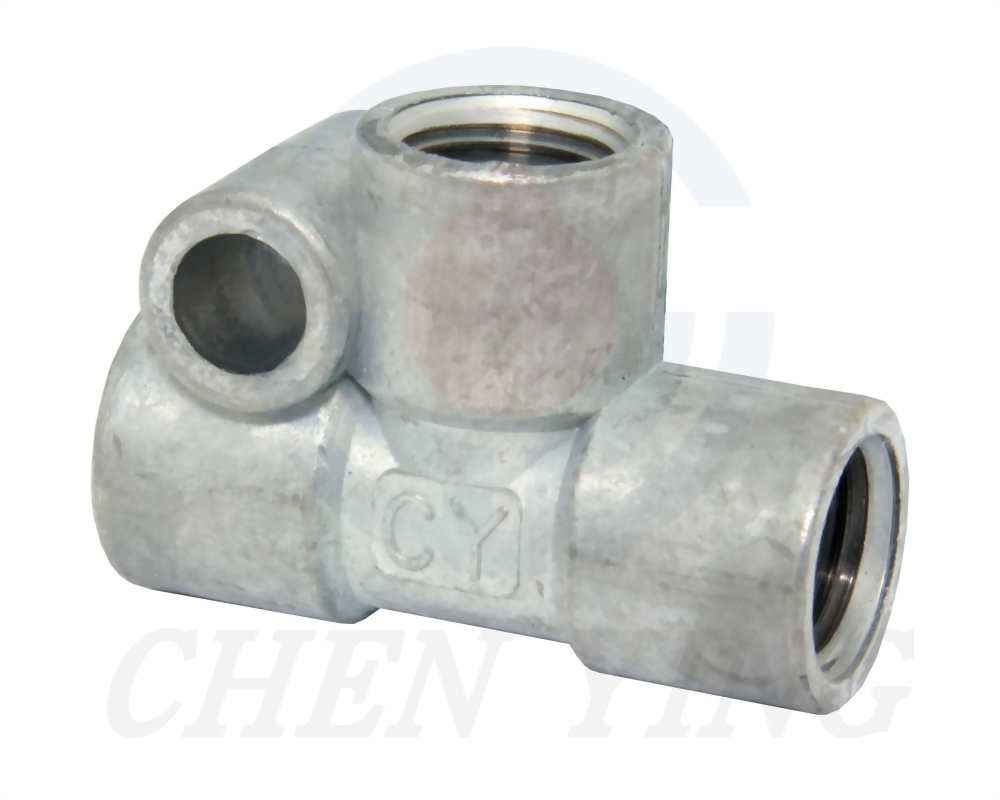

3-Way Junction
| Model | Bore | Inner Thread | A(mm) | B(mm) | C(mm) | D(mm) | E | N.W.(g) | Set |
| PKD-4 | Ø4 | M8xP1.0 | 29 | 19.4 | 8.5 | 12 | Ø6.3 | 16 | * |
| PKD-6 | Ø6 | M10xP1.0 | 34 | 24.0 | 9.5 | 15 | Ø6.3 | 32 | * |
| PKD-8 | Ø8 | M14xP1.5 | 42 | 31.0 | 14.5 | 19 | Ø6.8 | 64 | * |

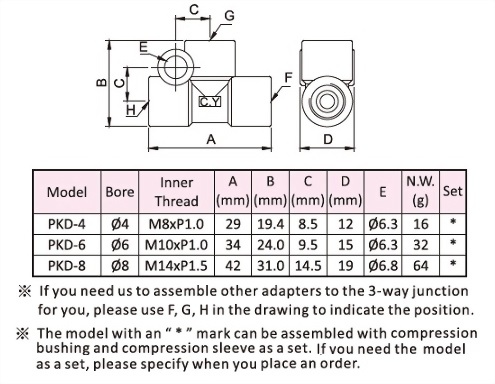

※If you need us to assemble other adapters to the 3-way junction for you, please use F, G, H in the drawing to indicate the position.
※The model with an “ * ” mark can be assembled with compression bushing and compression sleeve as a set. If you need the model as a set, please specify when you place an order.
