4-Way Junction
| Model | Bore | Inner Thread | A(mm) | B(mm) | C(mm) | D | N.W.(g) | Set |
| PJD-4 | Ø4 | M8xP1.0 | 30.0 | 8 | 11.0 | Ø5.3 | 23 | * |
| PJD-6 | Ø6 | M10xP1.0 | 34.0 | 9 | 15.5 | Ø5.8 | 33 | * |
| PJD-8 | Ø8 | M14xP1.5 | 41.5 | 12 | 22.0 | Ø6.8 | 94 | * |

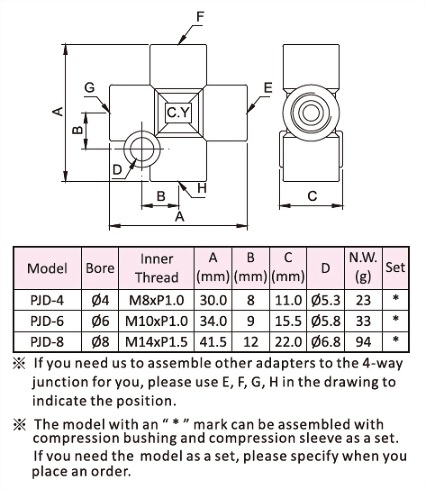

※If you need us to assemble other adapters to the 4-way junction for you, please use E, F, G, H in the drawing to indicate the position.
※The model with an “ * ” mark can be assembled with compression bushing and compression sleeve as a set. If you need the model as a set, please specify when you place an order.
