• CEN25-03 Standard

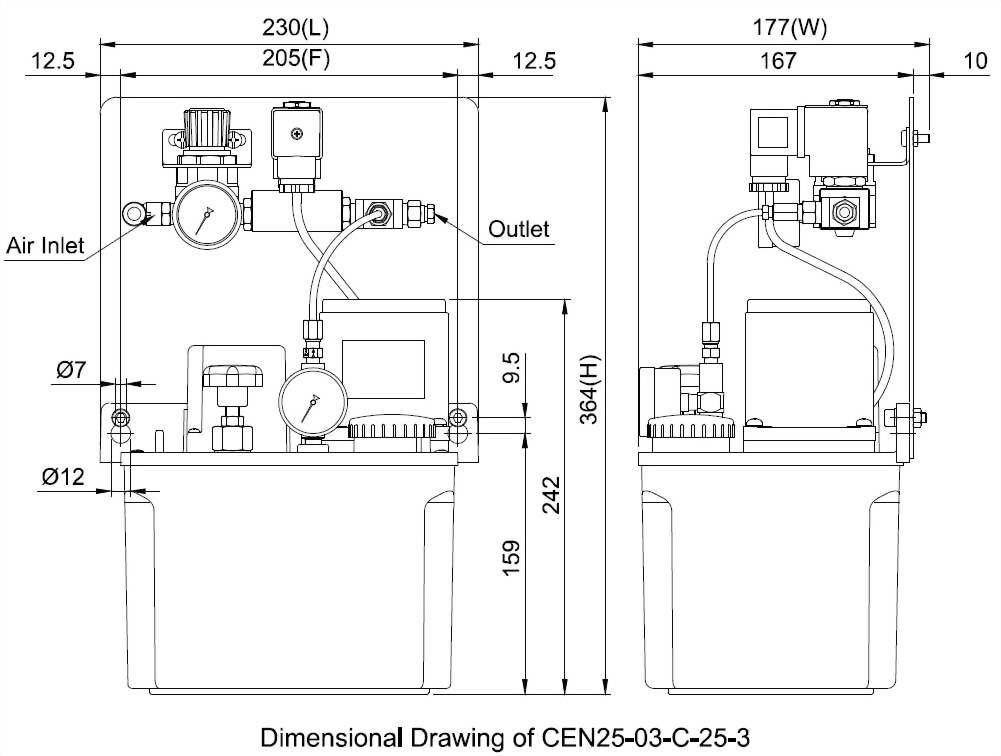

CEN25 Vertical Type Oil-Mist Electric Lubricator

  • Proportional Oil Quantity
  • Automatic Lubrication Controlled by PLC

※ Please select the specifications you need.：

*Model
*Tank Capacity
*Voltage
*Motor
*Discharge Bore
Remarks
◆Features:
  1. CEN24, CEN25 types are without timer, also could be controlled by Programmable Logic Controller (PLC).
  2. The discharge volume is stable and can be adjusted by the pressure-regulating valve. Turning the valve clockwise, the oil volume will increase, and turning anticlockwise, the oil volume will reduce.
  3. When the power of the lubricator is off, the air pressure and output power will be turned off at the same time for safety.
  4. It has a pressure-regulating valve, which can adjust the pressure and easy to check from the pressure gauge.
  5. It has a float switch that can detect the oil volume. It will have abnormal signal automatically when the oil level is lower than the minimum.
  6. The function of CEN24, CEN25 types are similar to CEN22 (Horizontal), CEN23 (Vertical) types. The difference is CEN24, CEN25 types are without timer, and CEN22, CEN23 types are with timers.


◆Application of Machines Equipment:
  1. The oil-mist type lubricator has cooling, lubricative and filtering effect that can reduce wear of the lubricating parts.
  2. It is suitable for cutting machines and bearings lubrication.
