Elbow Adapter

※ Please select the specifications you need.：

*Model
Special Request
Remarks

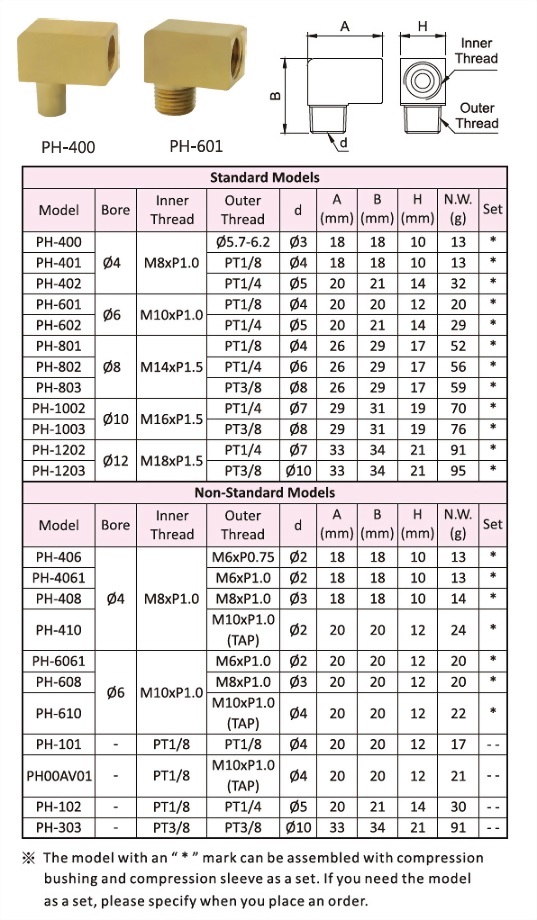

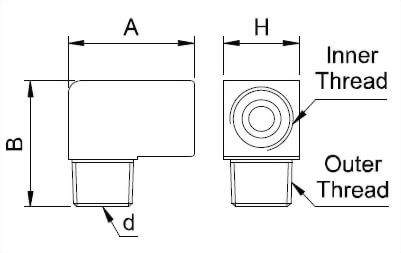

elbow-adapter Dimensional-Drawing

Standard Models
Model
Bore Inner Thread Outer Thread d A(mm) B(mm) H(mm) N.W.(g) Set
PH-400 ψ4 M8xP1.0 ψ5.7~6.2 ψ3 18 18 10 13 *
PH-401 PT1/8 ψ4 18 18 10 13 *
PH-402 ψ6 M10xP1.0 PT1/4 ψ5 20 21 14 32 *
PH-601 PT1/8 ψ4 20 20 12 20 *
PH-602 PT1/4 ψ5 20 21 14 29 *
PH-801 ψ8 M14xP1.5 PT1/8 ψ4 26 29 17 52 *
PH-802 PT1/4 ψ6 26 29 17 56 *
PH-803 PT3/8 ψ8 26 29 17 59 *
PH-1002 ψ10 M16xP1.5 PT1/4 ψ7 29 31 19 70 *
PH-1003 PT3/8 ψ8 29 31 19 76 *
PH-1202 ψ12 M18xP1.5 PT1/4 ψ7 33 34 21 91 *
PH-1203 PT3/8 ψ10 33 34 21 95 *
Non-Standard Models
Model
Bore Inner Thread Outer Thread d A(mm) B(mm) H(mm) N.W.(g) Set
PH-406 ψ4 M8xP1.0 M6xP0.75 ψ2 18 18 10 13 *
PH-4061 M6xP1.0 ψ2 18 18 10 13 *
PH-408 M8xP1.0 ψ3 18 18 10 14 *
PH-410 M10xP1.0(TAP) ψ2 20 20 12 24 *
PH-6061 ψ6 M10xP1.0 M6xP1.0 ψ2 20 20 12 20 *
PH-608 M8xP1.0 ψ3 20 20 12 20 *
PH-610 M10xP1.0(TAP) ψ4 20 20 12 22 *
PH-101 - PT1/8 PT1/8 ψ4 20 20 12 17 --
PH00AV01 - PT1/8 M10xP1.0(TAP) ψ4 20 20 12 21 --
PH-102 - PT1/8 PT1/4 ψ5 20 21 14 30 --
PH-303 - PT3/8 PT3/8 ψ10 33 34 21 91 --

※The model with an “ * ” mark can be assembled with compression bushing and compression sleeve as a set. If you need the model as a set, please specify when you place an order.
