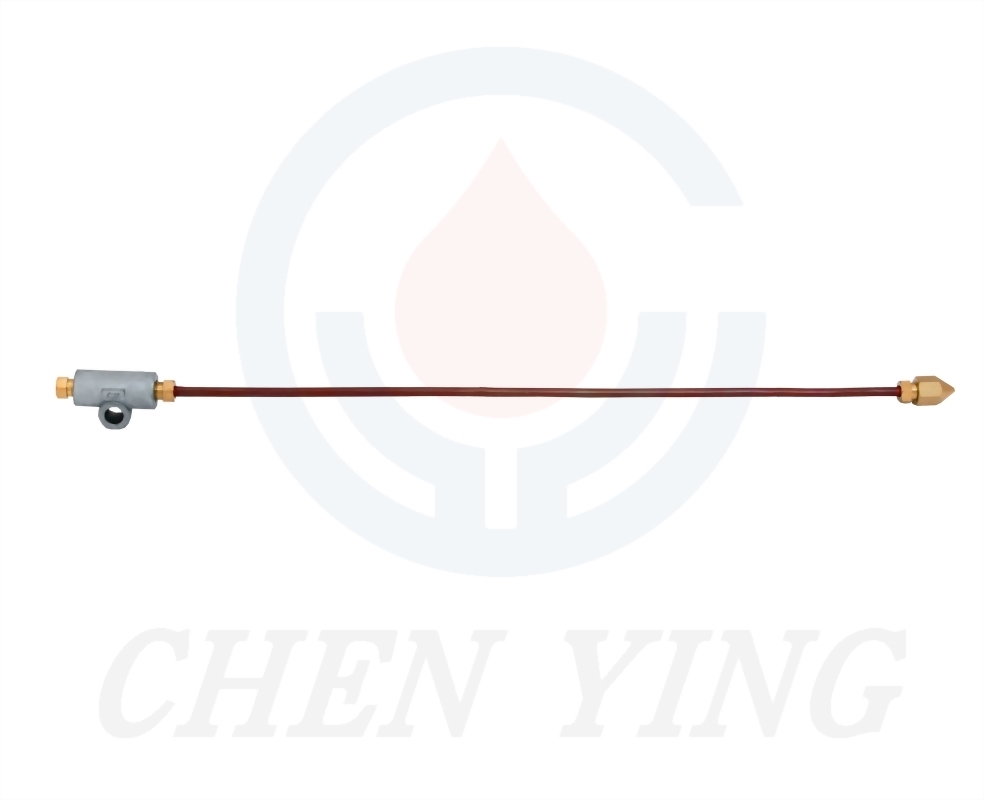

• OG Type Spray Gun (Single-Nozzle Type with Copper Pipe)

OG Type Spray Gun (Single-Nozzle Type with Copper Pipe)

※ Please select the specifications you need.：

*Model
*Inlet Bore
Remarks

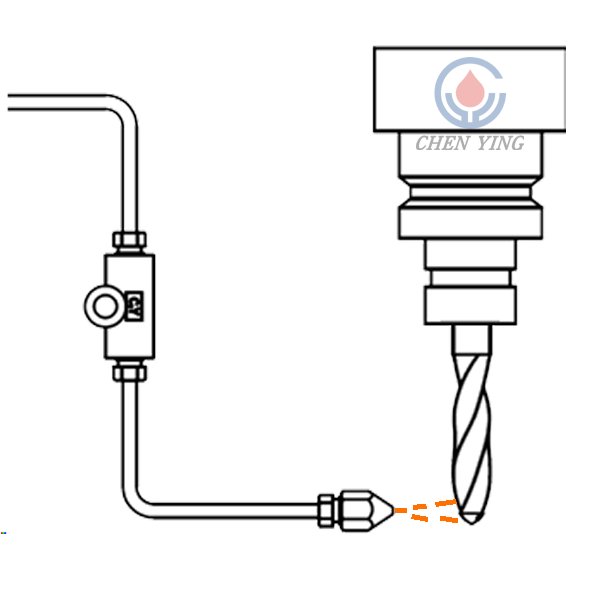

  1. OG spray gun is suitable for machines that require fixed lubrication points, such as tapping machines.
  2. The standard length of the copper pipe is 300mm, but it can be customized upon request.
  3. Recommend working with POM minimum quantity oil lubricator or CEN22, CEN23, CEN24, and CEN25 oil-mist lubricators.
  4. The net weight of OG spray gun is 55g per set.

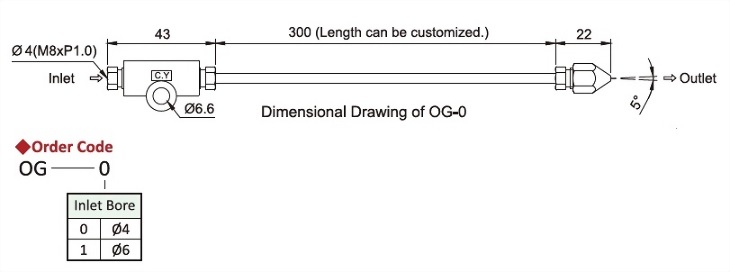

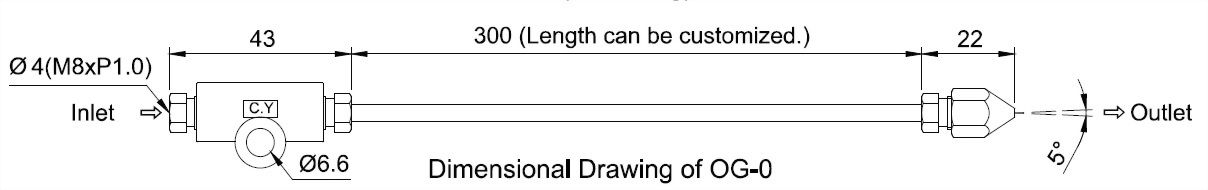

OG Type,Dimensional Drawing,Order Code
