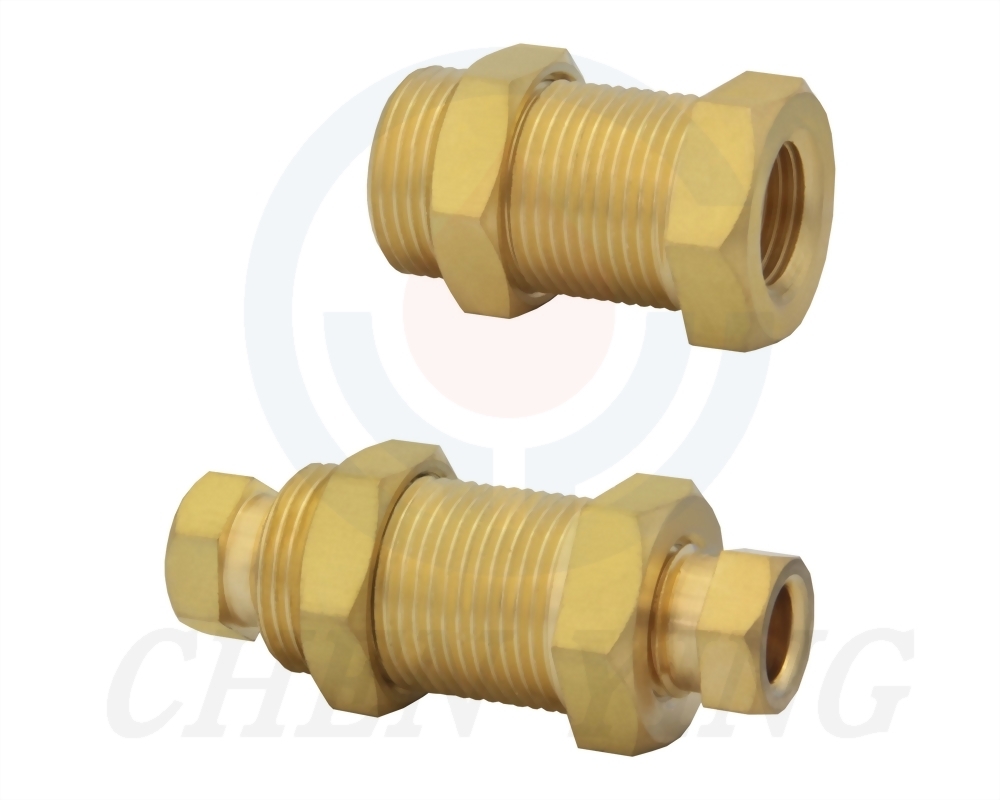

Connector

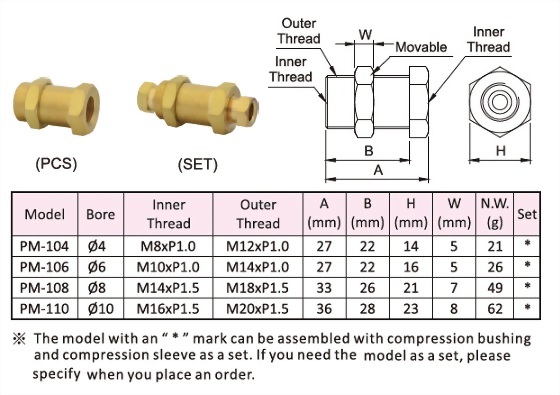

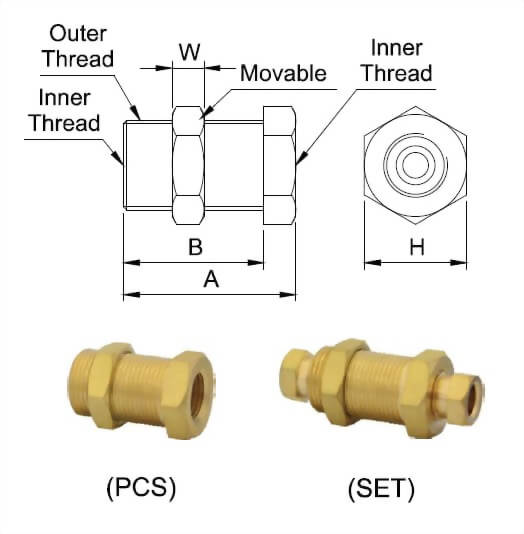

| Model | Bore | Inner Thread | Outer Thread | A(mm) | B(mm) | H(mm) | W(mm) | N.W.(g) | Set |
| PM-104 | Ø4 | M8xP1.0 | M12xP1.0 | 27 | 22 | 14 | 5 | 21 | * |
| PM-106 | Ø6 | M10xP1.0 | M14xP1.0 | 27 | 22 | 16 | 5 | 26 | * |
| PM-108 | Ø8 | M14xP1.5 | M18xP1.5 | 33 | 26 | 21 | 7 | 49 | * |
| PM-110 | Ø10 | M16xP1.5 | M20xP1.5 | 36 | 28 | 23 | 8 | 62 | * |
※The model with an “ * ” mark can be assembled with compression bushing and compression sleeve as a set. If you need the model as a set, please specify when you place an order.
