• Connector A/B

Connector A/B

※ Please select the specifications you need.：

*Model
Special Request
Remarks

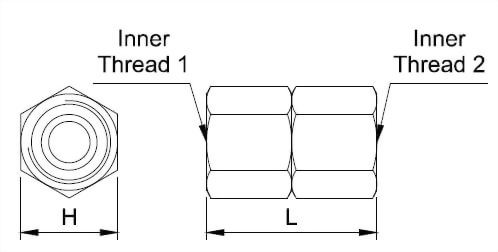

connector-a-or-connector-b Dimensional-Drawing

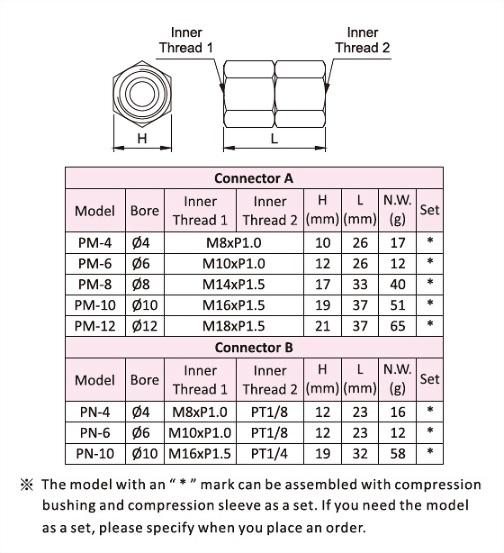

Connector A
Model Bore Inner Thread 1 Inner Thread 2 L(mm) H(mm) N.W.(g) Set
PM-4 Ø4 M8xP1.0 26 10 17 *
PM-6 Ø6 M10xP1.0 26 12 12 *
PM-8 Ø8 M14xP1.5 33 17 40 *
PM-10 Ø10 M16xP1.5 37 19 51 *
PM-12 Ø12 M18xP1.5 37 21 65 *
Connector B
Model Bore Inner Thread 1 Inner Thread 2 L(mm) H(mm) N.W.(g) Set
PN-4 Ø4 M8xP1.0 PT1/8 23 12 16 *
PN-6 Ø6 M10xP1.0 PT1/8 23 12 12 *
PN-10 Ø10 M16xP1.5 PT1/4 32 19 58 *

※The model with an “ * ” mark can be assembled with compression bushing and compression sleeve as a set. If you need the model as a set, please specify when you place an order.
