• Elbow Connector

Elbow Connector

※ Please select the specifications you need.：

*Model
Special Request
Remarks

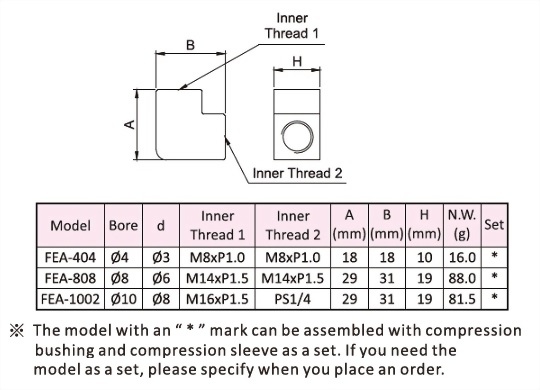

elbow-connector Dimensional-Drawing

Model Bore Inner Thread 1 Inner Thread 2 d A(mm) B(mm) H(mm) N.W.(g) Set
FEA-404 Ø4 M8xP1.0 M8xP1.0 Ø3 18 18 10 16.0 *
FEA-808 Ø8 M14xP1.5 M14xP1.5 Ø6 29 31 19 88.0 *
FEA-1002 Ø10 M16xP1.5 PS1/4 Ø8 29 31 19 81.5 *

※The model with an “ * ” mark can be assembled with compression bushing and compression sleeve as a set. If you need the model as a set, please specify when you place an order.
