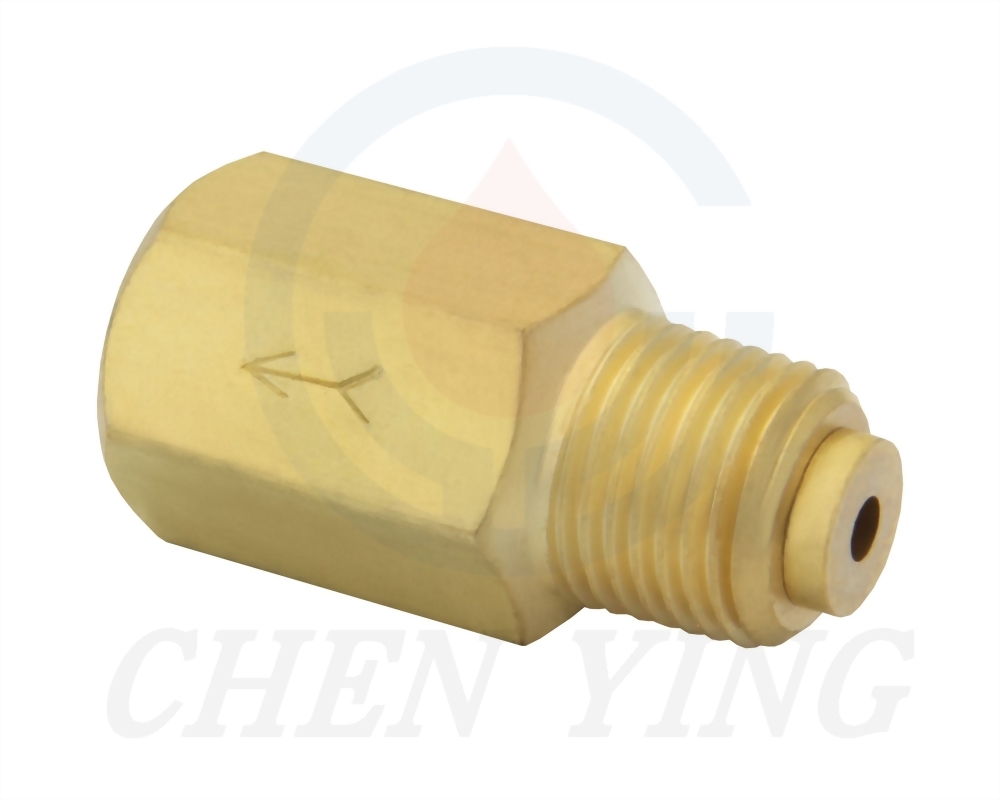

• One-Way Flow Straight Adapter

One-Way Flow Straight Adapter

※ Please select the specifications you need.：

*Model
Special Request
Remarks

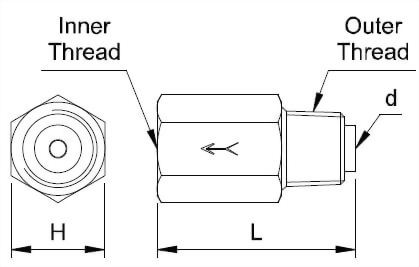

one-way-flow-straight-adapter Dimensional-Drawing

Model Bore Inner Thread Outer Thread d L(mm) H(mm) N.W.(g) Set
PD-4011 Ø4 M8xP1.0 PT1/8 Ø2.2 24.5 10 11 *
PD-6011 Ø6 M10xP1.0 25.5 12 14 *

※The model with an “ * ” mark can be assembled with compression bushing and compression sleeve as a set. If you need the model as a set, please specify when you place an order.。
