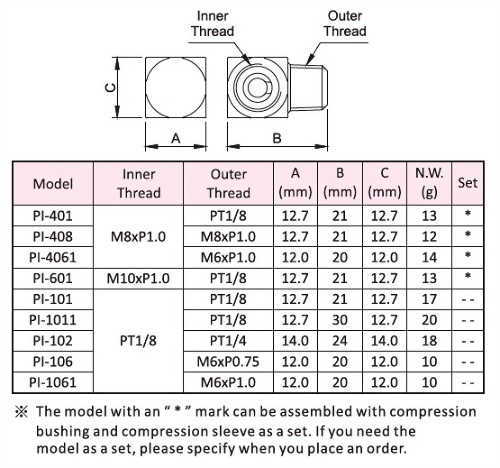

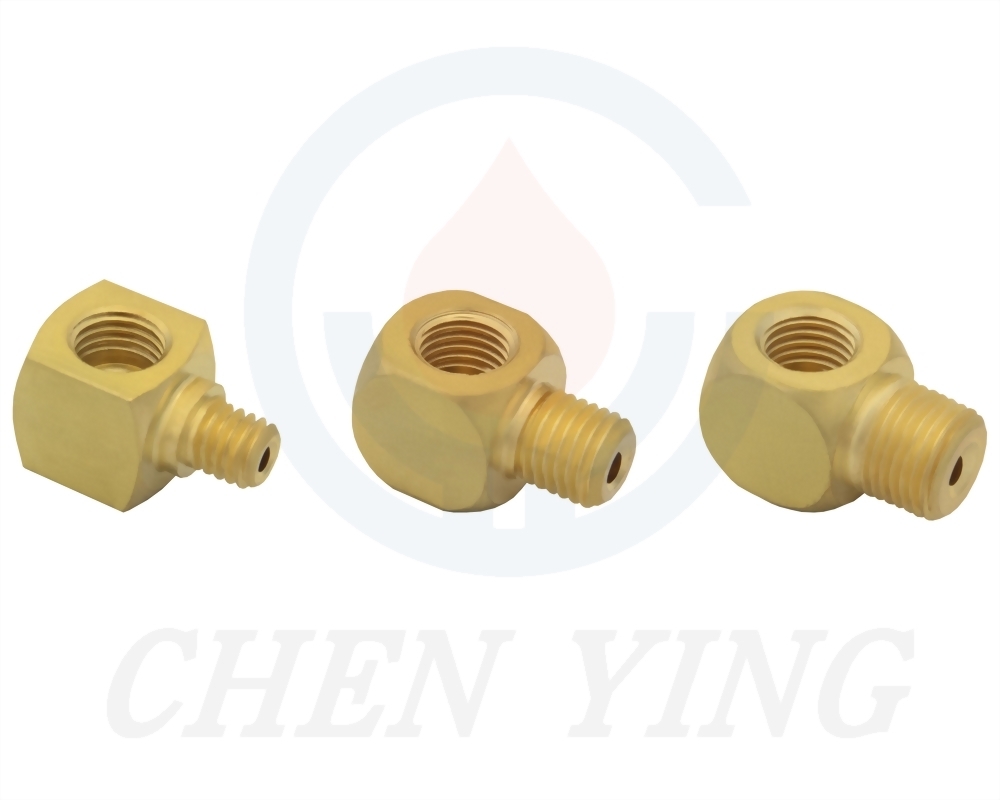

Plane Elbow Adapter
| Model | Inner Thread | Outer Thread | A(mm) | B(mm) | C(mm) | N.W.(g) | Set |
| PI-401 | M8xP1.0 | PT1/8 | 12.7 | 21 | 12.7 | 13 | * |
| PI-408 | M8xP1.0 | 12.7 | 21 | 12.7 | 12 | * | |
| PI-4061 | M6xP1.0 | 12.0 | 20 | 12.0 | 14 | * | |
| PI-601 | M10xP1.0 | PT1/8 | 12.7 | 21 | 12.7 | 13 | * |
| PI-101 | PT1/8 | PT1/8 | 12.7 | 21 | 12.7 | 17 | -- |
| PI-1011 | PT1/8 | 12.7 | 30 | 12.7 | 20 | -- | |
| PI-102 | PT1/4 | 14.0 | 24 | 14.0 | 18 | -- | |
| PI-106 | M6xP0.75 | 12.0 | 20 | 12.0 | 10 | -- | |
| PI-1061 | M6xP1.0 | 12.0 | 20 | 12.0 | 10 | -- |
※The model with an “ * ” mark can be assembled with compression bushing and compression sleeve as a set. If you need the model as a set, please specify when you place an order.
