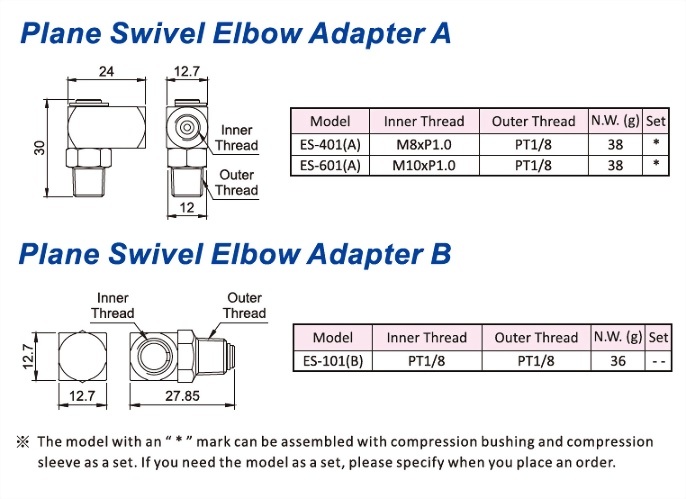

Plane Swivel Elbow Adapter A/B

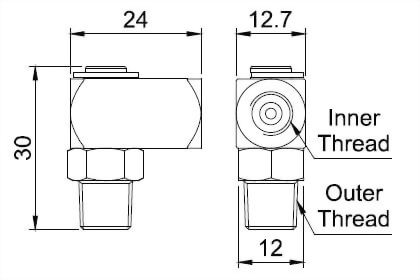

| Plane Swivel Elbow Adapter A | ||||
| Model | Inner Thread | Outer Thread | N.W.(g) | Set |

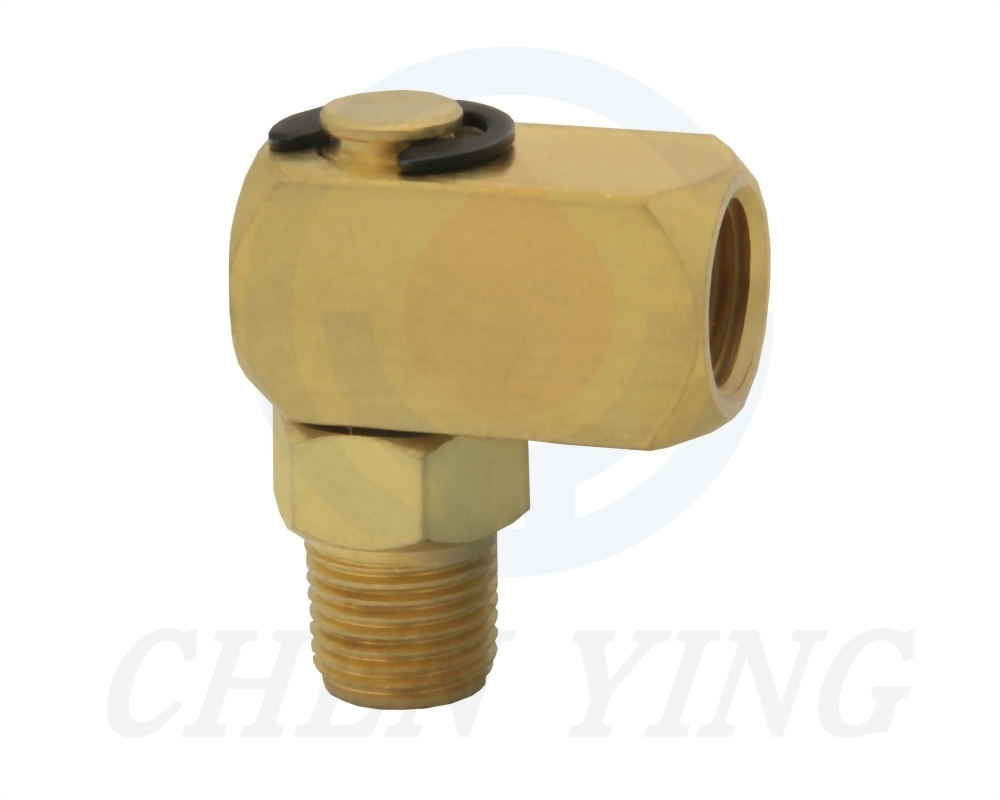

| ES-401(A) | M8xP1.0 | PT1/8 | 38 | * |
| ES-601(A) | M10xP1.0 | PT1/8 | 38 | * |

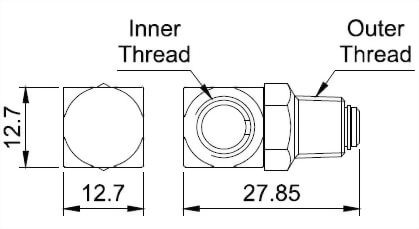

| Plane Swivel Elbow Adapter B | ||||
| Model | Inner Thread | Outer Thread | N.W.(g) | Set |

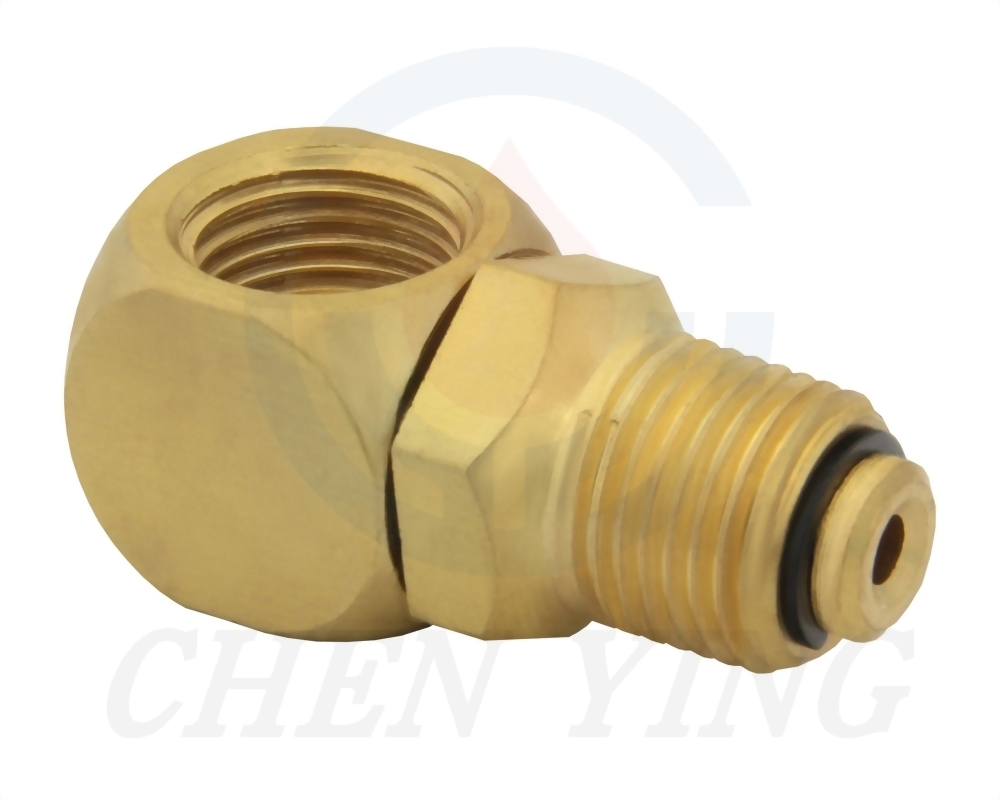

| ES-101(B) | PT1/8 | PT1/8 | 36 | -- |
※The model with an “ * ” mark can be assembled with compression bushing and compression sleeve as a set. If you need the model as a set, please specify when you place an order.
