• Reverse Flow Elbow Adapter

Reverse Flow Elbow Adapter

※ Please select the specifications you need.：

*Model
Special Request
Remarks

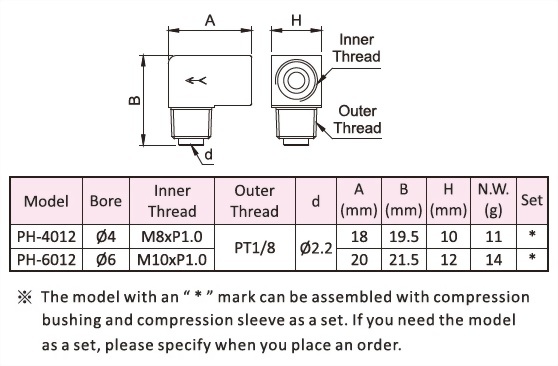

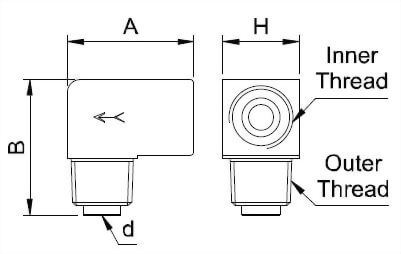

reverse-flow-elbow-adapter Dimensional-Drawing

Model Bore Inner Thread Outer Thread d A(mm) B(mm) H(mm) N.W.(g) Set
PH-4012 Ø4 M8xP1.0 PT1/8 Ø2.2 18 19.5 10 11 *
PH-6012 Ø6 M10xP1.0 20 21.5 12 14 *

※The model with an “ * ” mark can be assembled with compression bushing and compression sleeve as a set. If you need the model as a set, please specify when you place an order.
