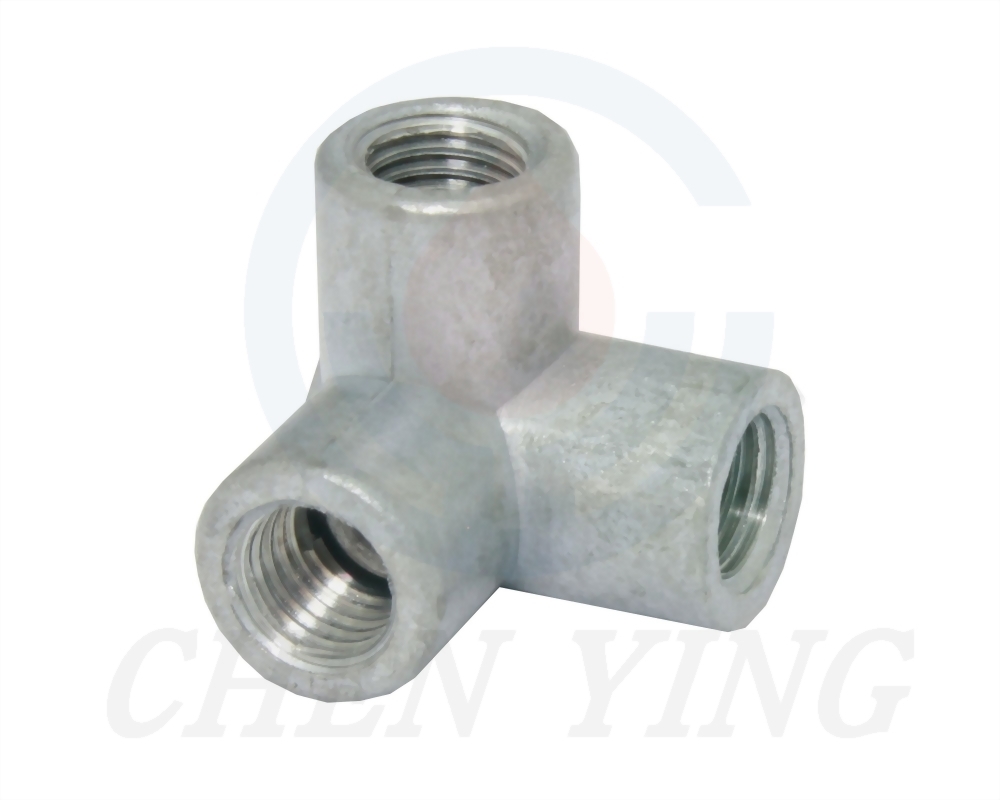

• PHD-301

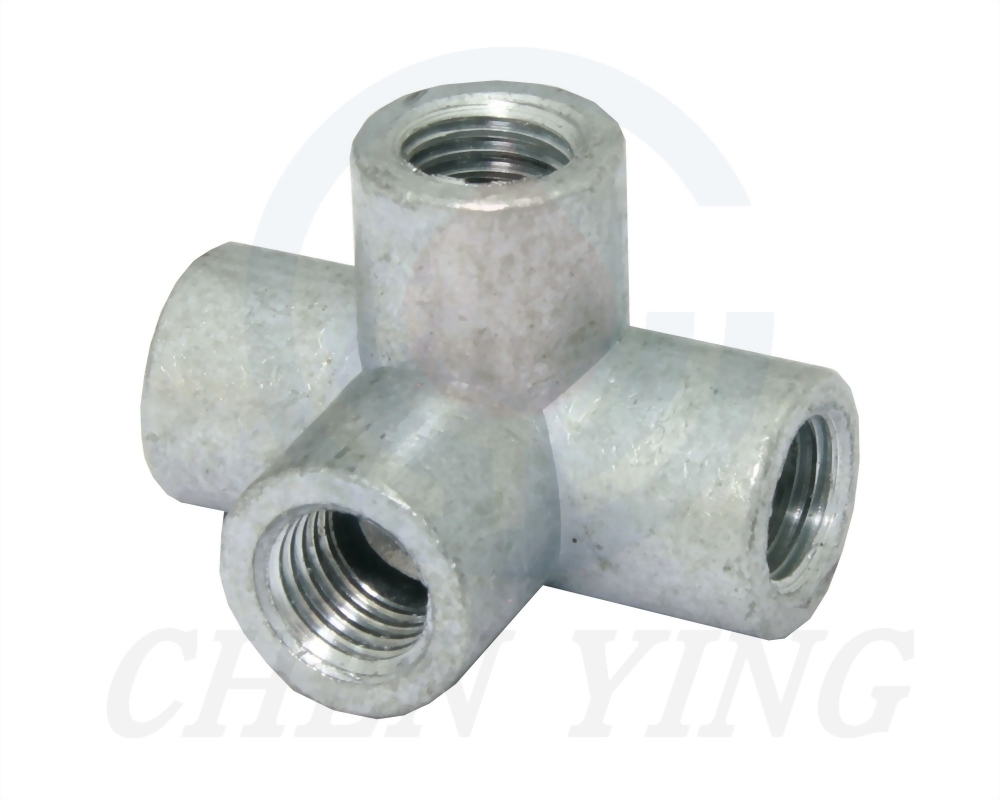

  • PHD-401

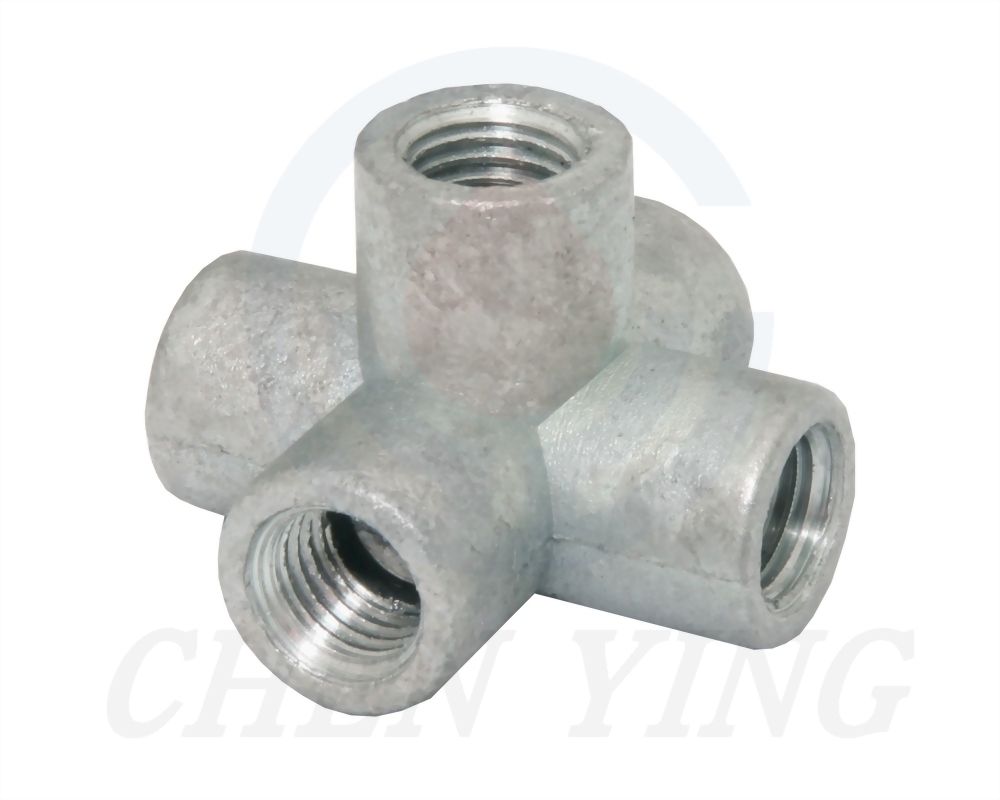

  • PHD-501

Vertical Junction

※ Please select the specifications you need.：

*Model
Special Request
Remarks

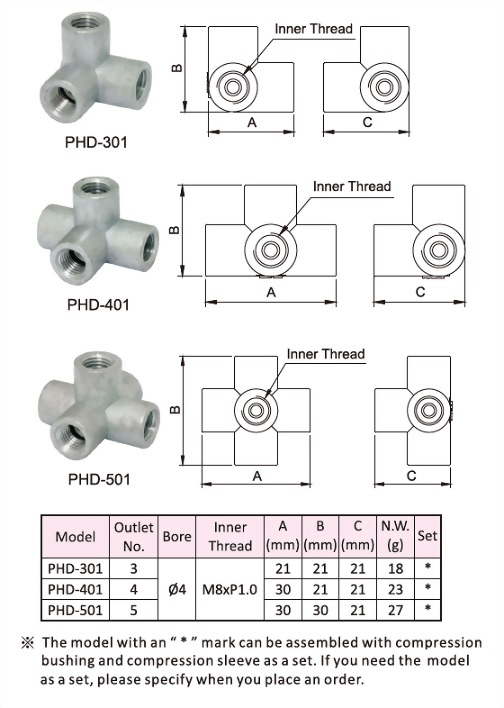

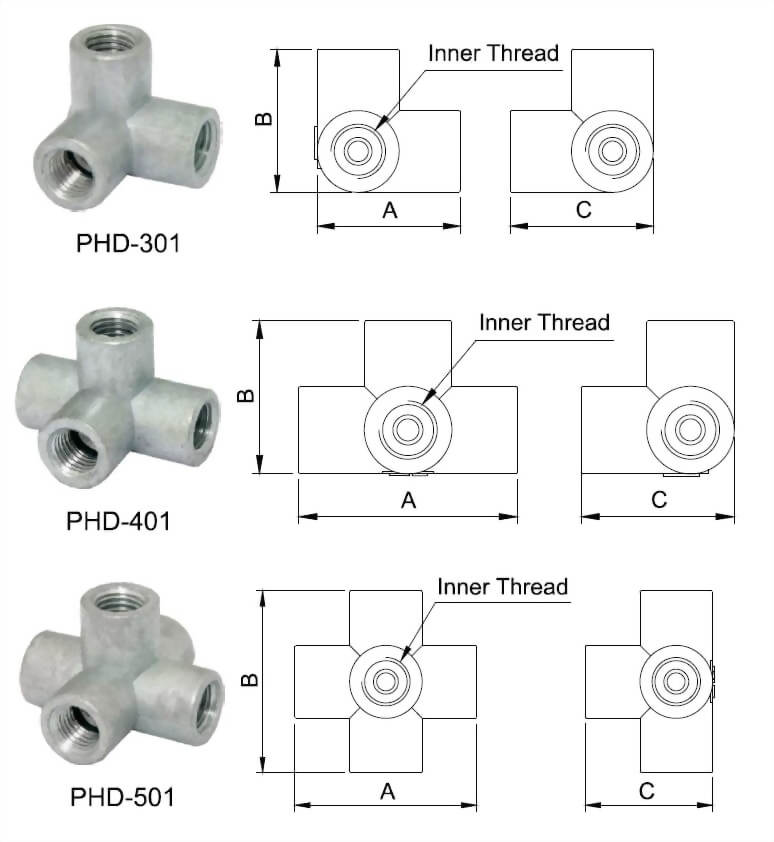

vertical-junction Dimensional-Drawing

Model Outlet No. Bore Inner Thread A(mm) B(mm) C(mm) N.W.(g) Set
PHD-301 3 Ø4 M8xP1.0 21 21 21 18 *
PHD-401 4 30 21 21 23 *
PHD-501 5 30 30 21 27 *

※The model with an “ * ” mark can be assembled with compression bushing and compression sleeve as a set. If you need the model as a set, please specify when you place an order.
