CEN03 Pressure-Relief Type Oil Electric Lubricator

※ Please select the specifications you need.：
*Model
*Tank Capacity (Material)
*Voltage
*Discharge Bore
Special Request
Remarks

Q'ty :

The operation and interval time of CEN03 are controlled by PLC.
CEN03 has to work with volume distributors to deliver the metered quantity of oil to the lubrication point.
CEN03 has a pressure gauge that enables the user to check the operating pressure easily.
CEN03 has an 8kgf/cm² NC contact socket pressure switch that detects the operating pressure automatically and sends signals when the pressure is below the preset value.
CEN03 has a NC contact float switch that detects the oil level automatically and sends signals when the oil level is low.
CEN03 has a spark quencher that prevents the spark of switch contacts and the interference of surge voltage with the PLC and prolongs the service life.
CEN03 has a feed-oil button, which can be used as manual oil feeding for less than 3 minutes to avoid overloading the motor.
CEN03 has a thermal control that shuts down the motor for about 5 minutes when the motor is overheated.

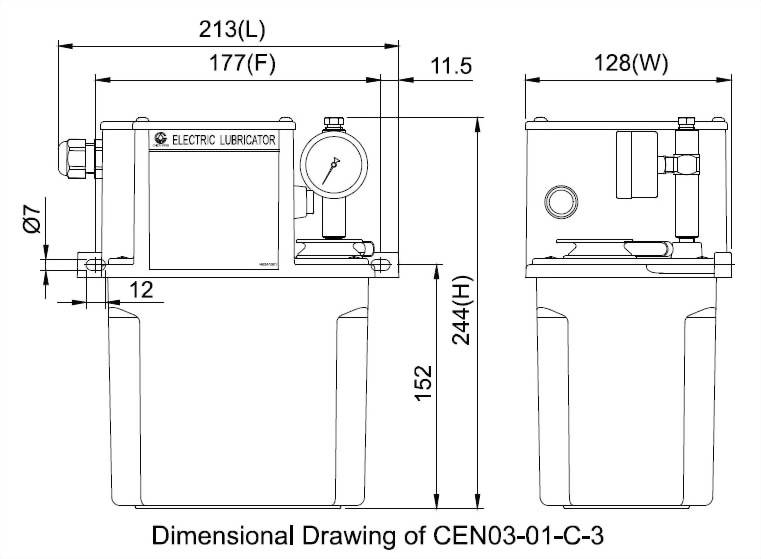

◆ Dimensional Data

◆ Technical Data

Motor Power	30±3W
Voltage	110V	220V
Ampere	2A	1A
Hertz	60Hz	50Hz, 60Hz
Max. Discharge Volume	130cc/min, 260cc/min
Max. Operating Pressure	15kgf/c㎡
Discharge Bore	Ø4 , Ø6
Float Switch	NC Contact (NO Contact on request)
Pressure Switch	NC Contact (NO Contact on request)
Suitable Viscosity	Oil, 32-68 cSt@40^oC

◆ Wiring Diagram

M     = Motor
GND = Ground
WS   = Float Switch
DK    = Feed-Oil Button
DS    = Pressure Switch

◆ Order Code

Model	Tank Capacity(Material)		Voltage		Discharge Bore		Special Request
CEN03	01		C		3		※
	01	2L (Resin)	A	110V, 60Hz	0	Ø4	B	Add a Buzzer
	02	2L (Alum.)	B	220V, 50Hz	1	Ø6	PO	NO Contact Pressure Switch
	03	3L (Resin)	C	220V, 60Hz	2	Ø4 W/Pressure Gauge	SO	NO Contact Float Switch
	04	4L (Resin)			3	Ø6 W/Pressure Gauge	Z	Increase Discharge Volume to 260cc/min
	05	4L (Alum.)
	08	8L (Iron)
