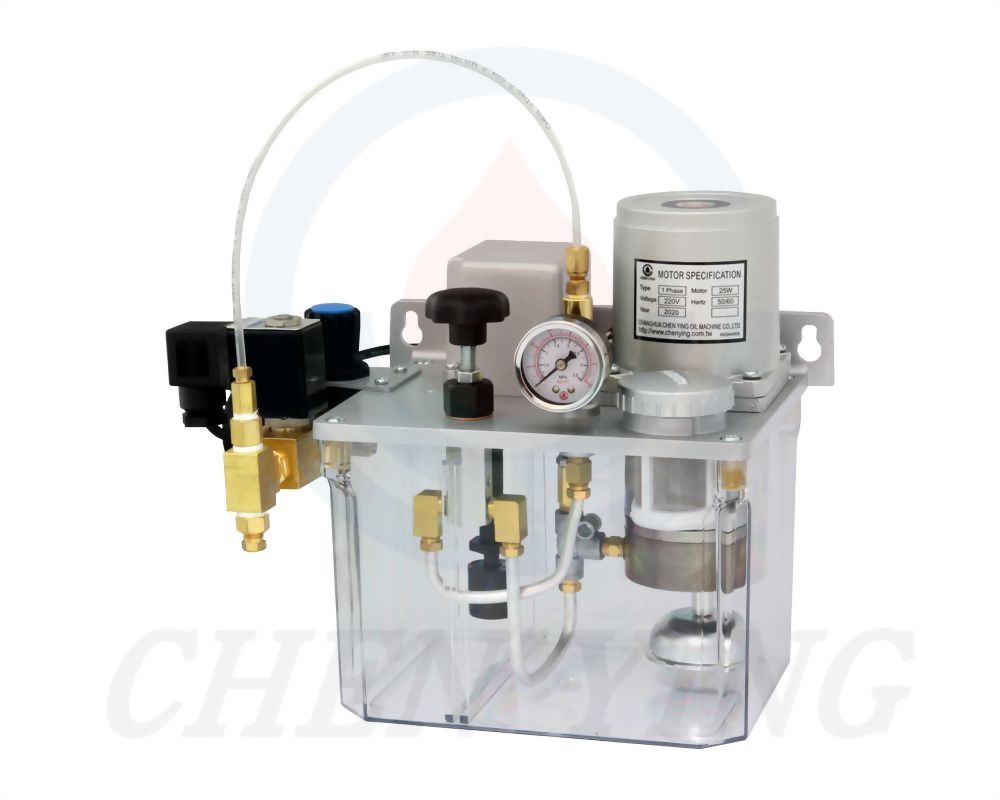

CEN24 Horizontal Oil-Mist Type Electric Lubricator

1. CEN24 and CEN25 have solenoid valves to control the pneumatic supply. The solenoid valve installed on the left side is CEN24 and on the top is CEN25.
2. The operation and interval time are controlled by PLC.
3. CEN24 and CEN25 have pressure gauges that enable the users to check the operating pressure easily.
4. CEN24 and CEN25 have NC contact float switches that detect the oil level automatically and sends signals when the oil level is low.
5. CEN24 and CEN25 have pressure-regulating valves that enable the users to adjust the operating pressure. Turn the pressure-regulating valve clockwise to increase the discharge volume and turn it anticlockwise to decrease the discharge volume.
6. CEN24 and CEN25 have air-regulating valves that enable the users to adjust the air volume upon their demands.
7. When the power of CEN24 and CEN25 is off, the pneumatic pressure and output power will be off simultaneously for safety concerns.
8. CEN24 and CEN25 can cool down the lubrication area and filter out the wear particles from friction points to reduce mechanical wear and prolong the machine's service life during lubrication process.
9. Each lubrication point should be with an individual oil-mist lubricator for better lubrication results.

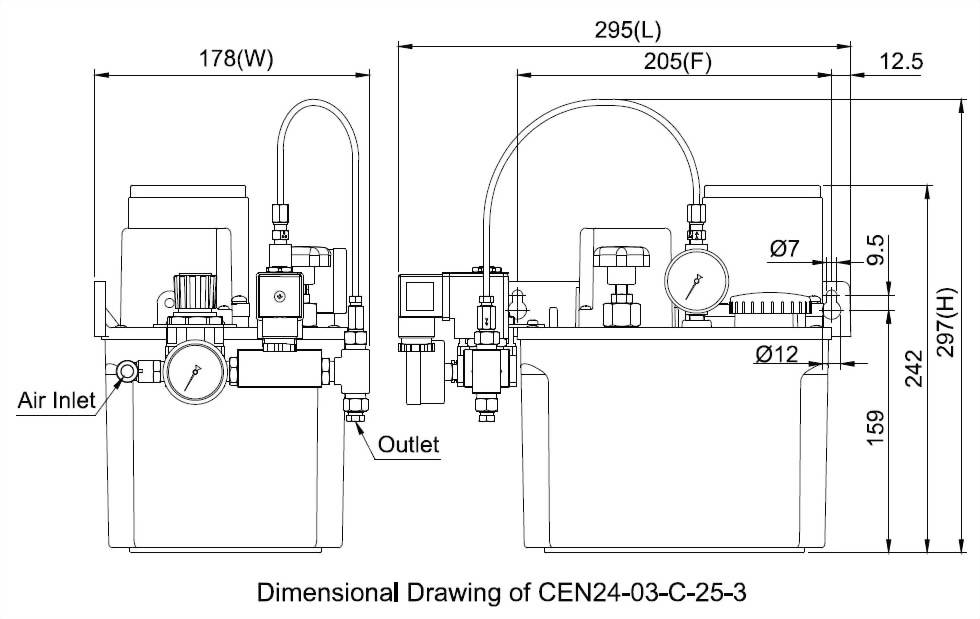

◆ Dimensional Data

◆ Technical Data

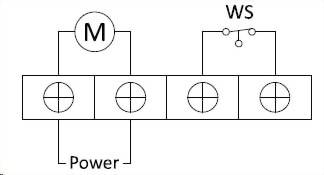

◆ Wiring Diagram

Single-Phase Power	M    =  Motor WS  =  Float Switch

◆ Order Code
