CEU Circulating Type Oil Electric Lubricator

1. CEU has a cyclic inlet that allows the oil to return to the oil tank, which saves the oil consumption.
2. CEU has a magnetic filter inside the cyclic inlet that prevents iron filings from entering the oil tank to maintain the cleanness of the circulating oil.
3. The operation and interval time of CEU are controlled by PLC. CEU also can operate continuously without interval time.
4. The gear pump of CEU is made of special aluminum alloy and assembled with the induction motor to provide stable output pressure, low operating noise, and long service life.
5. The induction motor has a fan that reduces the temperature and prolongs the service life of CEU.
6. CEU has a pressure-regulating valve that enables the user to adjust the operating pressure.
7. CEU has a NC contact float switch that detects the oil level automatically and sends signals when the oil level is low.
8. CEU has a 1kgf/cm² socket pressure switch that detects the operating pressure automatically.
9. After installing CEU and connecting all oil pipes, let CEU continue running until oil fulfills all oil pipes. The lubricator is ready to use when the oil flows out to remove the air bubbles.

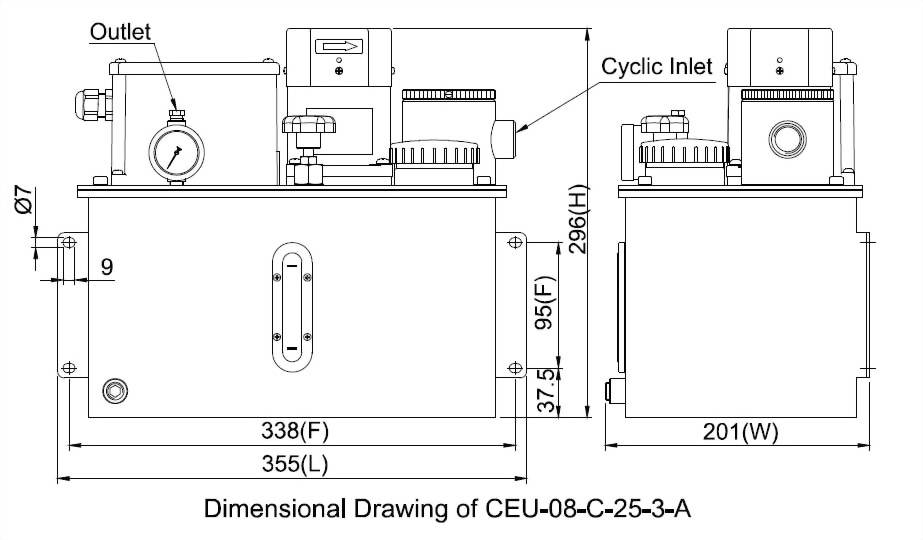

◆ Dimensional Data

◆ Technical Data

◆ Wiring Diagram

Single-Phase Power	Three-Phase Power	M      =  Motor GND =  Ground WS    =  Float Switch DS     =  Pressure Switch

◆ Order Code

※A standard dual-voltage motor is connected for low voltage. Please specify if you need it to be connected for high voltage when placing an order.
